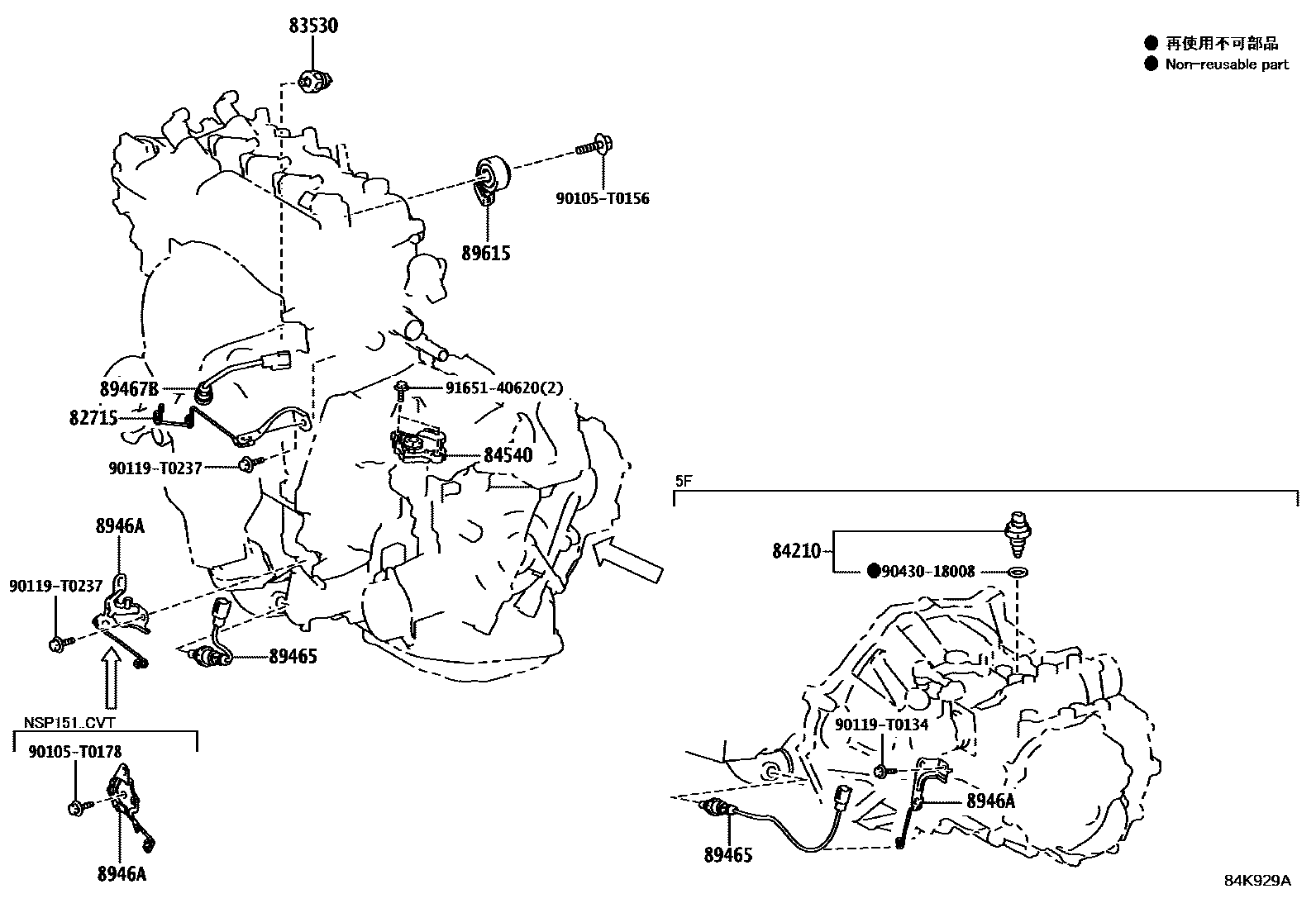

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR, ROOF, FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-5C360iNSP151201911-202405

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNSP15#201911

DENSO

main83530-60020iNSP15#201911

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNSP151..5F201911-202405

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNSP151..CVT201911-202405

89465SENSOR, OXYGEN

main89465-52A00iNSP151..CVT201911-202405

main89465-52A10iNSP151..5F201911-202405

89467BSENSOR, AIR FUEL RATIO

main89467-30050iNSP151201911-202405

8946ABRACKET, EXHAUST SENSOR CLAMP

main82715-5C350iNSP151..5F201911-202405

main8946A-52020iNSP150..CVT201911

main8946A-52080iNSP151..CVT201911-202405

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP151201911-202405

90105T0156

main90105-T0156

90105T0178

main90105-T0178

90119T0134

main90119-T0134

90119T0237

main90119-T0237

9043018008

main90430-18008

9165140620

main91651-40620

14 parts on this diagram · 7 diagrams in section
