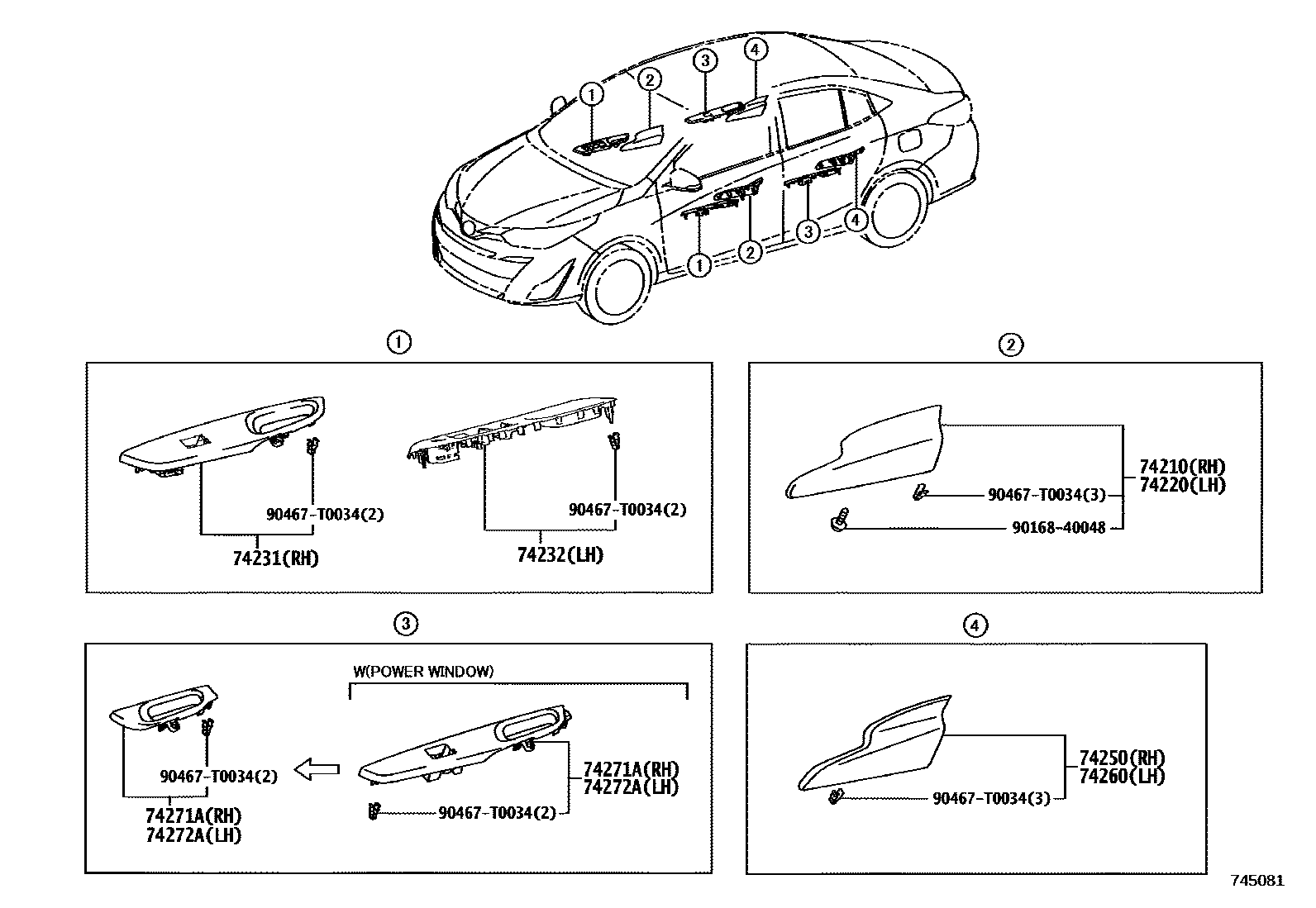

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#
SPORT PACKAGE,BLACK/RED STITCH,TRIM2#
GR SPORT,BLACK/GR RED,TRIM2#
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#
SPORT PACKAGE,BLACK/RED STITCH,TRIM2#
GR SPORT,BLACK/GR RED,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
LIMO PACKAGE
74250ARMREST ASSY, REAR RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
LIMO PACKAGE,BLACK,TRIM2#
SPORT PACKAGE,BLACK/RED STITCH,TRIM2#
GR SPORT,BLACK/GR RED,TRIM2#
LIMO PACKAGE,BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
LIMO PACKAGE,BLACK,TRIM2#
SPORT PACKAGE,BLACK/RED STITCH,TRIM2#
GR SPORT,BLACK/GR RED,TRIM2#
LIMO PACKAGE,BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
LIMO PACKAGE
LIMO PACKAGE
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
LIMO PACKAGE
LIMO PACKAGE
9016840048
main90168-40048
90467T0034
main90467-T0034
10 parts on this diagram · 2 diagrams in section
