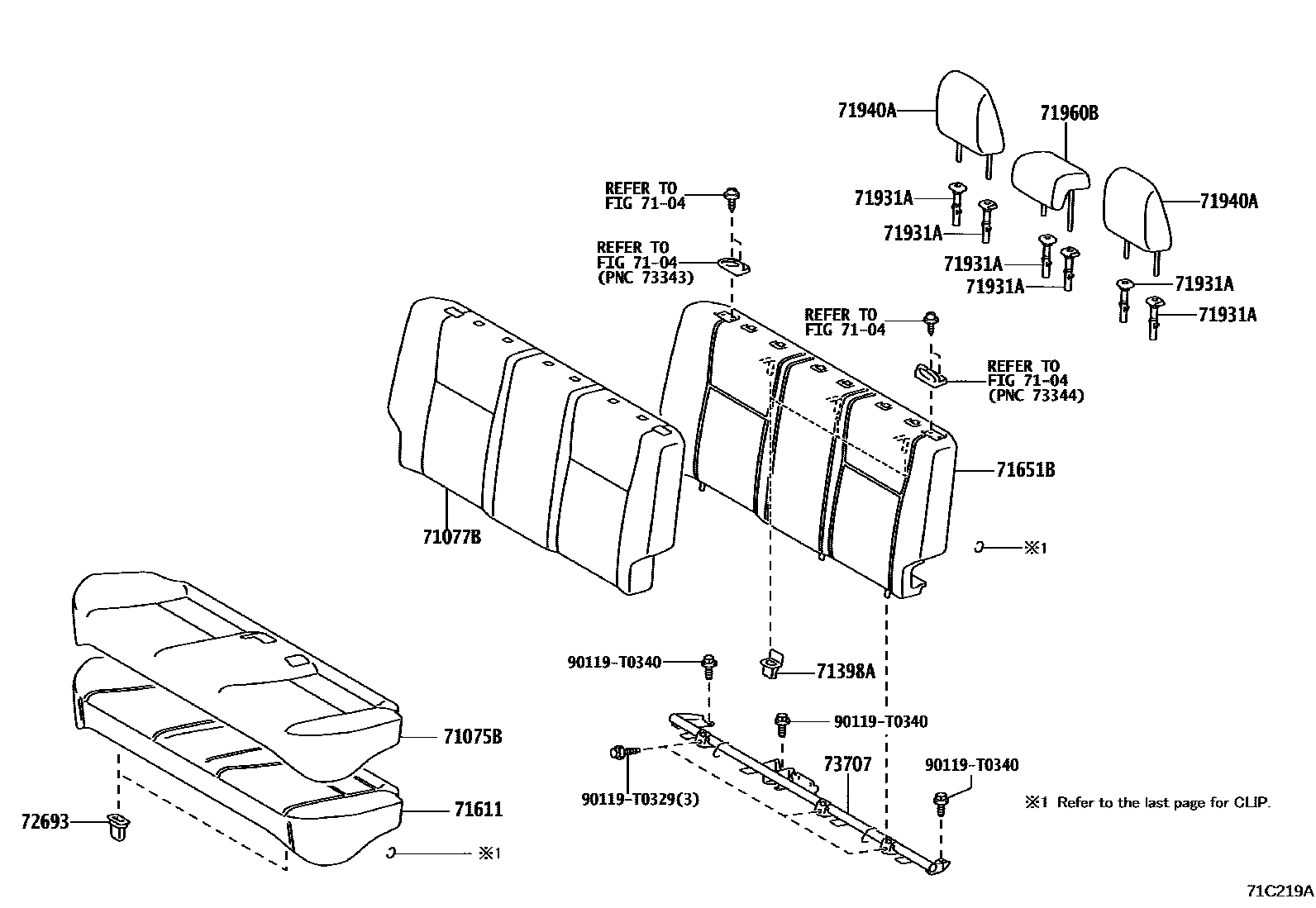

REAR SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
BLACK/BLUE NO.125,TRIM2#
BLACK/LT.GRAY,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71398AHOLDER, REAR SEATBACK
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK)&W(BUTTON),BLACK,TRIM2#
W(LOCK)&W(BUTTON),BLACK,TRIM2#
W(LOCK)&W(BUTTON),BLACK,TRIM20
W(LOCK)&W(BUTTON),BLACK,TRIM23
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM20
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM23
71940AHEADREST ASSY, REAR SEAT
BLACK/RED,TRIM20
BLACK/BLUE 125,TRIM2#
BLACK/BLUE 125,TRIM20
BLACK/LT.GRAY,TRIM2#
BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK/RED,TRIM20
BLACK/BLUE,TRIM20
BLACK/BLUE,TRIM2#
BLACK/LT.GRAY,TRIM2#
BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
73707BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
90119T0329
main90119-T0329
90119T0340
main90119-T0340
13 parts on this diagram · 2 diagrams in section
