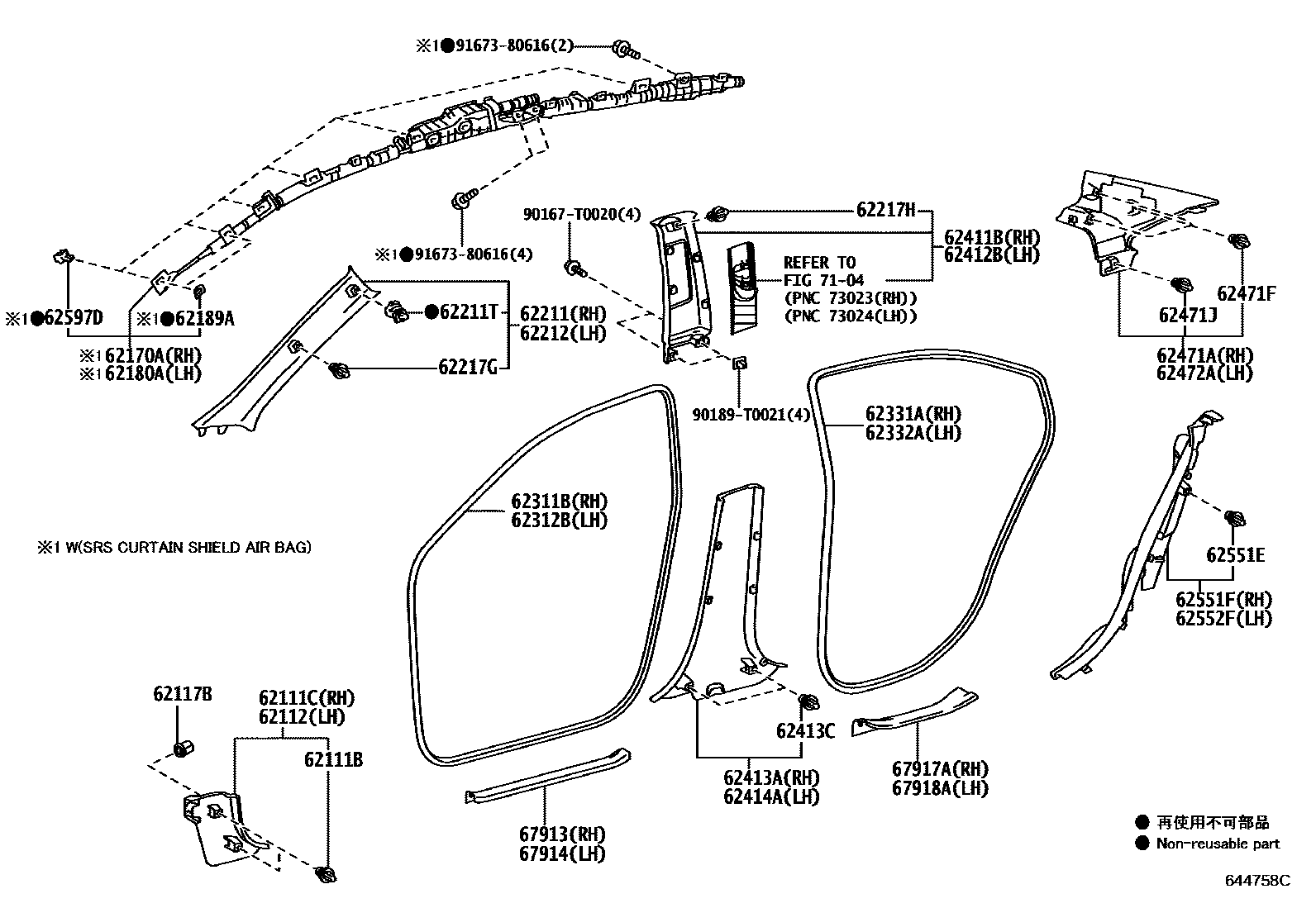

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-T0021×4iNSP151201911-202405

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D280-C0iNSP151201911-202405

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D320-C0iNSP150201911

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iNSP151201911-202405

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0D080iNSP151201911-202405

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0D080iNSP151201911-202405

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010×4iNSP151201911-202405

62211GARNISH, FRONT PILLAR, RH

main62211-0D840-B0supersedes 62211-0D810-B0iNSP151201911-202405

GRAY,TRIM2#

main62211-0D830-B0supersedes 62211-0D800-B0iNSP150..D201911

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-52120×2supersedes 90467-T0021iNSP151201911-202405

62212GARNISH, FRONT PILLAR, LH

main62212-0D840-B0supersedes 62212-0D810-B0iNSP151201911-202405

GRAY,TRIM2#

main62212-0D830-B0supersedes 62212-0D800-B0iNSP150..D201911

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main90467-T0021×2iNSP150201911

62217HCLIP, CENTER PILLER GARNISH

main90467-10188iNSP151201911-202405

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D310iNSP151201911-202405

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D290iNSP151201911-202405

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0D230iNSP151201911-202405

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0D210iNSP151201911-202405

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-0D020-B0iNSP15#201911-202103

GRAY,TRIM2#

main62410-0D090-B0iNSP151202103-202405

GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-0D020-B0iNSP15#201911-202103

GRAY,TRIM2#

main62420-0D090-B0iNSP150202103

GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0D330-C0iNSP151202103-202405

BLACK,TRIM2#

main62413-0D370-C0iNSP15#201911-202103

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-T0021×2iNSP150201911

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0D320-C0iNSP151202103-202405

BLACK,TRIM2#

main62414-0D370-C0iNSP15#201911-202103

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D750-B0iNSP150..R201911-202103

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),GRAY,TRIM2#

sub62471-0D770

main62471-0DC70-B0supersedes 62471-0D740-B0iNSP151202103-202405

GRAY,TRIM2#

main62471-0D730-B0supersedes 62471-0D720-B0iNSP150..D201911-202103

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),GRAY,TRIM2#

sub62471-0D770

main62471-0DB80-B0supersedes 62471-0D720-B0iNSP150..D202103

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),GRAY,TRIM2#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-T0021×3supersedes 90467-T0021iNSP151201911-202405

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10167supersedes 90467-10167iNSP151201911-202405

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D750-B0iNSP150..R201911-202103

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),GRAY,TRIM2#

sub62472-0D770

main62472-0DD30-B0supersedes 62472-0D740-B0iNSP151202103-202405

GRAY,TRIM2#

main62472-0D730-B0supersedes 62472-0D720-B0iNSP150..D201911-202103

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),GRAY,TRIM2#

sub62472-0D770

main62472-0DD20-B0supersedes 62472-0D720-B0iNSP150..D202103

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),GRAY,TRIM2#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10188iNSP151201911-202405

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0D380-C0iNSP15#201911-202103

BLACK,TRIM2#

main62551-0D530-C0iNSP150202103

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0D300-C0iNSP151202103-202405

BLACK,TRIM2#

main62552-0D380-C0iNSP15#201911-202103

BLACK,TRIM2#

62597DCLIP

main90467-18017×12iNSP151201911-202405

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D270-C0iNSP151201911-202405

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D260-C0iNSP151201911-202405

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0D200-C0iNSP151201911-202405

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0D200-C0iNSP151201911-202405

BLACK,TRIM2#

7104

90167T0020

main90167-T0020

90189T0021

main90189-T0021

9167380616

main91673-80616

37 parts on this diagram · 1 diagram in section
