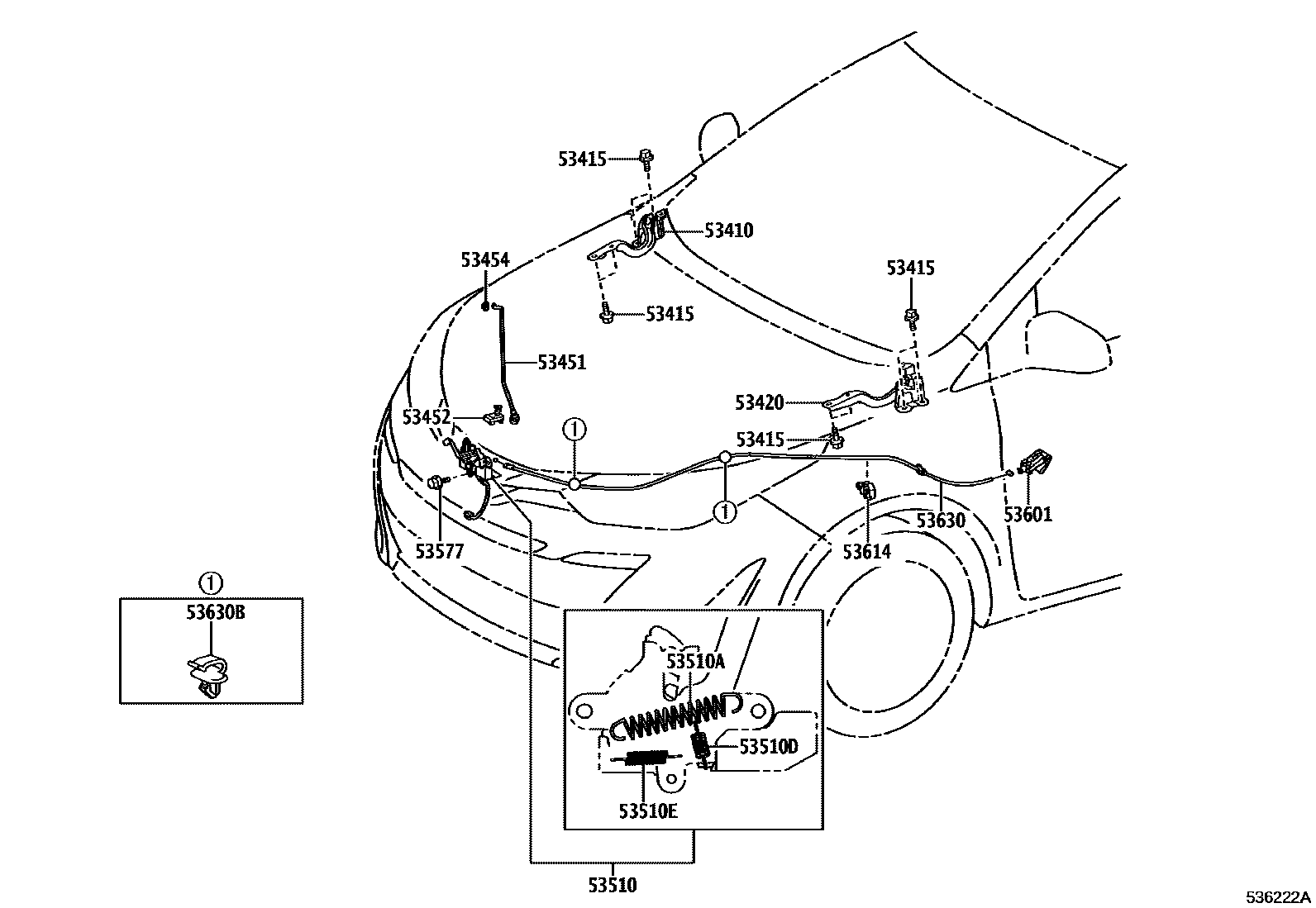

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0D490iNSP150201911

53415BOLT, HOOD HINGE

main90105-T0120×4iNSP151201911-202405

53420HINGE ASSY, HOOD, LH

main53420-0D490iNSP151201911-202405

53451ROD, HOOD SUPPORT

main53440-0D240iNSP150201911

53452HOLDER, HOOD STAY

main53452-0D090iNSP150201911

53454CLIP, HOOD SUPPORT ROD

main90480-T0009iNSP150201911

53510LOCK ASSY, HOOD

main53510-0D810iNSP150..D201911

main53510-0D820iNSP151201911-202405

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNSP151201911-202405

WD=1.6,CW=12

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iNSP151201911-202405

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNSP151201911-202405

WD=0.9,CW=21

53577BOLT, HOOD LOCK

main90119-T0273×3iNSP151201911-202405

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C1iNSP151201911-202405

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-16790iNSP151201911-202405

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D370iNSP151201911-202405

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iNSP151201911-202405

15 parts on this diagram · 1 diagram in section
