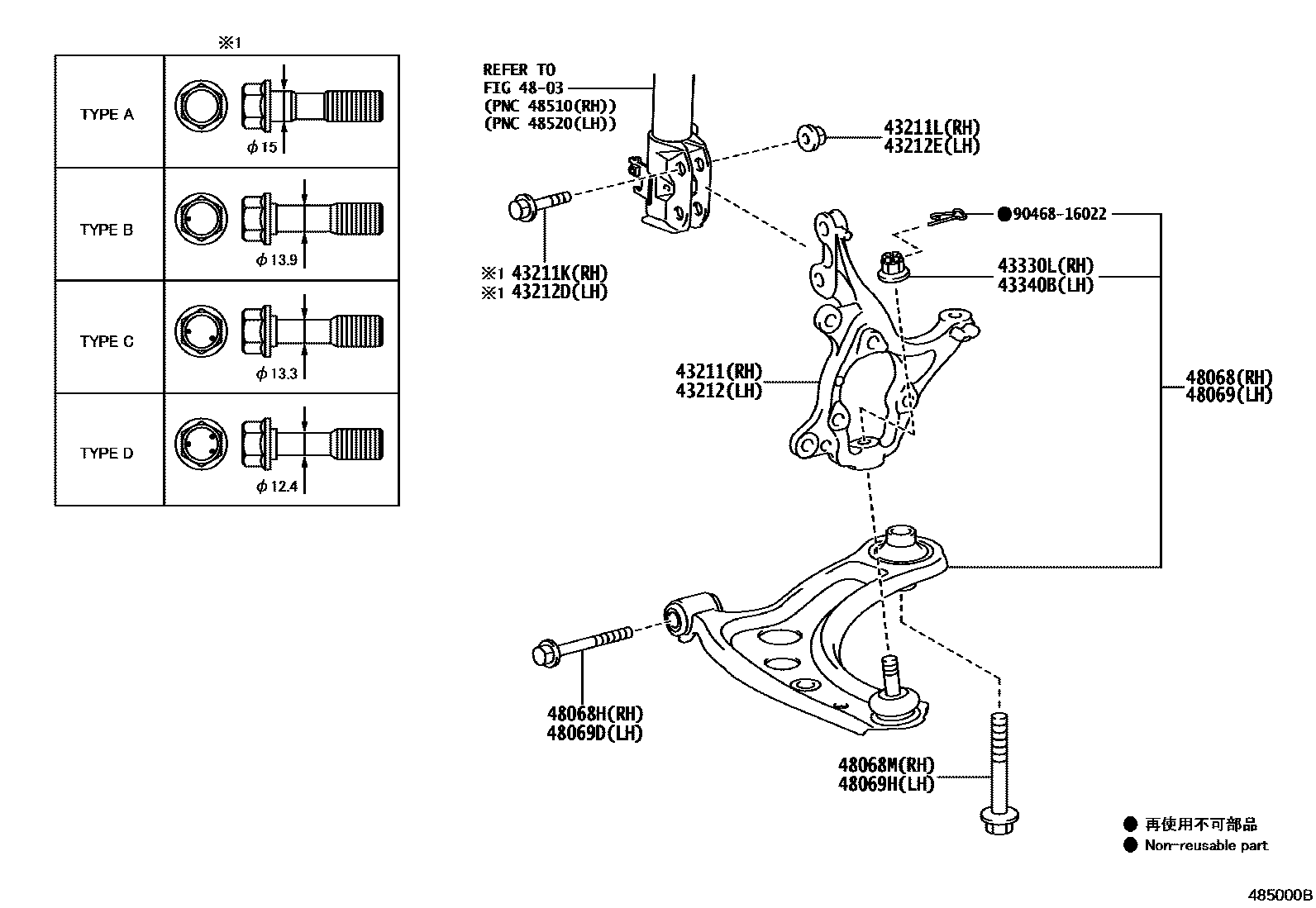

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0D250iNSP151201911-202405

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-T0186×2iNSP151201911-202405

*12-1.25PX29.5-23

main90105-T0190×2iNSP150201911

OD=15,TYPE A:REFER ILLUST.

main90109-15002iNSP150201911

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP151201911-202405

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP150201911

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-T0069×2iNSP151201911-202405

43212KNUCKLE, STEERING, LH

main43212-0D250iNSP151201911-202405

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-T0186×2iNSP151201911-202405

*12-1.25PX29.5-23

main90105-T0190×2iNSP151201911-202405

OD=15,TYPE A:REFER ILLUST.

main90109-15002iNSP150201911

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP151201911-202405

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP151201911-202405

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-T0069×2iNSP150201911

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNSP151201911-202405

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNSP151201911-202405

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-09251iNSP150201911

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-T0596iNSP151201911-202405

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14147iNSP151201911-202405

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-09261iNSP151201911-202405

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-T0596iNSP151201911-202405

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14147iNSP151201911-202405

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
