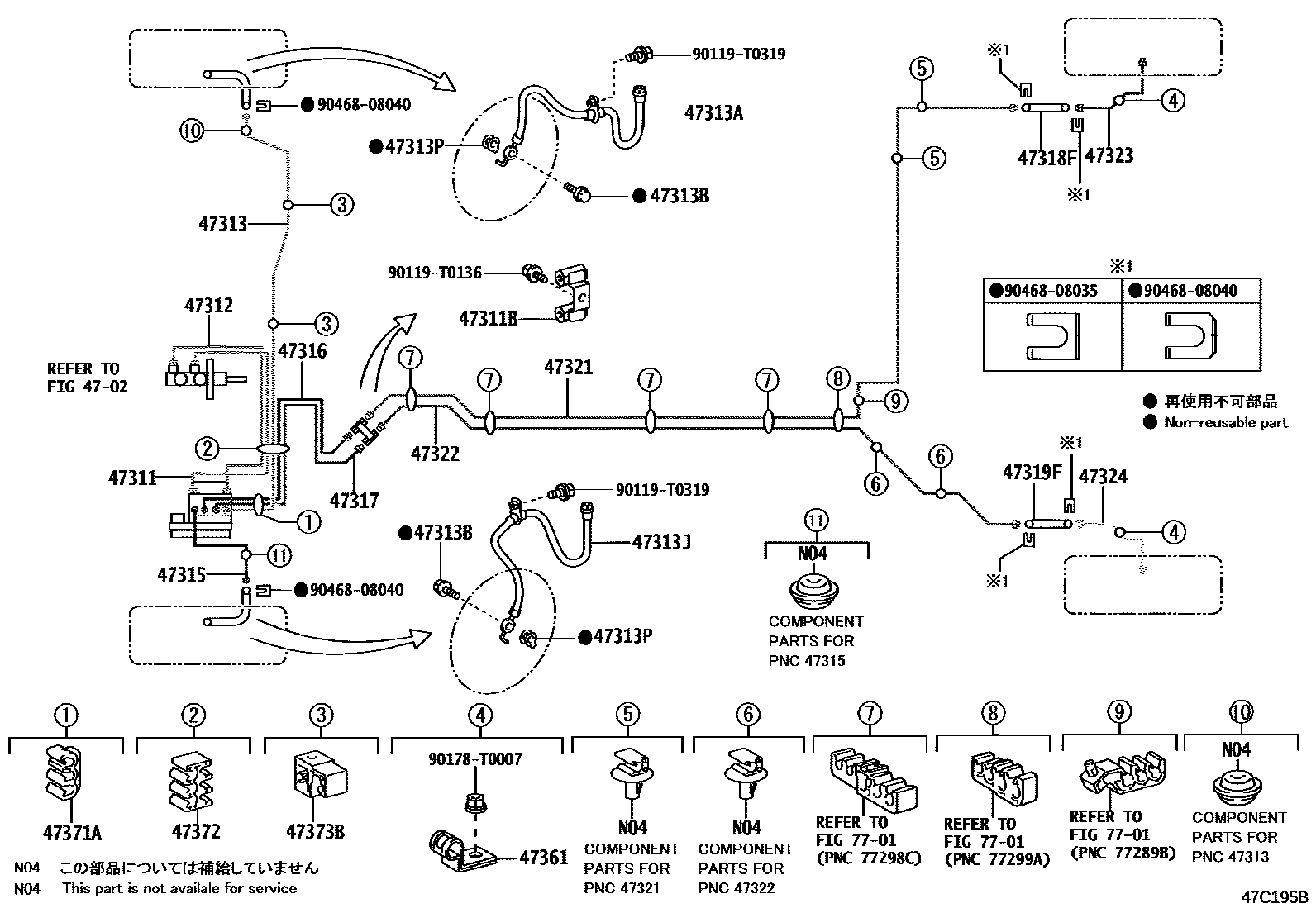

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE, REAR DRUM BRAKE 0002 1BRAKE TUBE, REAR DISC BRAKE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0DA00iNSP150..5F201911

main47311-0DA10iNSP151..CVT201911-202405

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iNSP151201911-202405

47312TUBE, FRONT BRAKE, NO.2

main47312-0D830iNSP151..5F201911-202405

main47312-0D840iNSP150..CVT201911

47313TUBE, FRONT BRAKE, NO.3

main47313-0D540iNSP150..5F201911

main47313-0D790iNSP151..CVT201911-202405

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2081iNSP151201911-202405

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNSP151201911-202405

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2082iNSP151201911-202405

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iNSP151201911-202405

47315TUBE, FRONT BRAKE, NO.5

main47315-0D520iNSP151..5F201911-202405

main47315-0D770iNSP151..CVT201911-202405

47316TUBE, FRONT BRAKE, NO.6

main47316-0D430iNSP151..5F201911-202405

main47316-0D680iNSP151..CVT201911-202405

47317TUBE, FRONT BRAKE, NO.7

main47317-0D430iNSP150..5F201911

main47317-0D680iNSP151..CVT201911-202405

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2083iNSP151201911-202405

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2084iNSP151201911-202405

47321TUBE, REAR BRAKE, NO.1

main47321-0D390iNSP150201911

47322TUBE, REAR BRAKE, NO.2

main47322-0D390iNSP150201911

47323TUBE, REAR BRAKE, NO.3

main47323-0D270iNSP150201911

main47323-0D290iNSP151201911-202405

47324TUBE, REAR BRAKE, NO.4

main47324-0D270iNSP150201911

main47324-0D290iNSP151201911-202405

47361CLAMP, TUBE

main90461-T0006×2iNSP151201911-202405

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iNSP151..CVT201911-202405

main90464-00868iNSP150..5F201911

47372CLAMP, BRAKE TUBE, NO.2

main90464-00925iNSP151201911-202405

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D18×2iNSP150201911

7701

90119T0136

main90119-T0136

90119T0319

main90119-T0319

90178T0007

main90178-T0007

9046808035

main90468-08035

9046808040

main90468-08040

28 parts on this diagram · 4 diagrams in section
