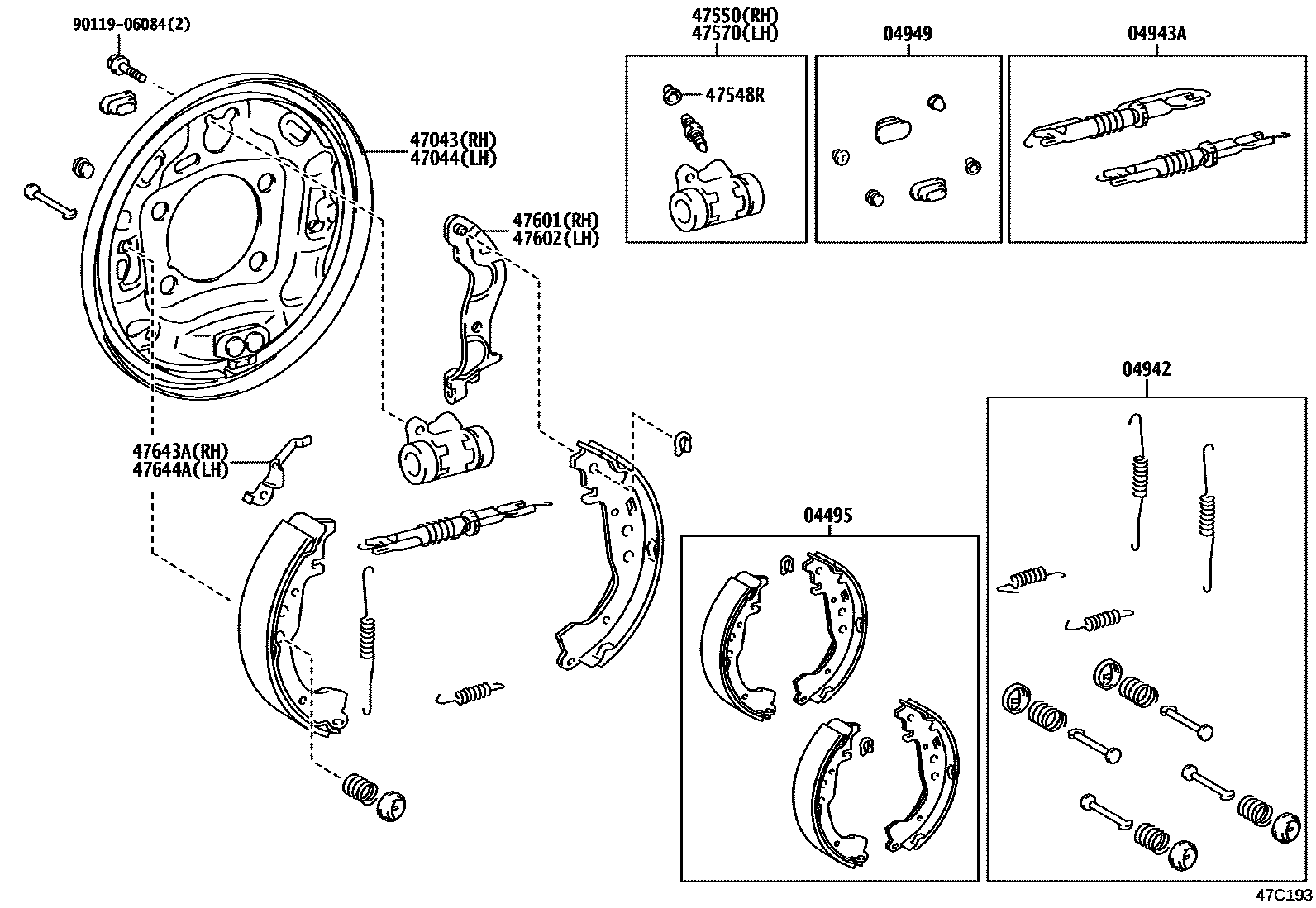

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D061iNSP150201911

MARK NSA LN521

04942SPRING KIT, REAR BRAKE

main04942-0D070iNSP150201911

04943ASTRUT KIT, REAR BRAKE

main04943-0D040iNSP150201911

04949PLUG KIT, REAR BRAKE

main04949-0D050iNSP150201911

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0D060iNSP150201911

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0D060iNSP150201911

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0D040×2iNSP150201911

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-0D100iNSP150201911

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-0D050iNSP150201911

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-0D060iNSP150201911

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-0D060iNSP150201911

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0D101iNSP150201911

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0D101iNSP150201911

9011906084

main90119-06084

14 parts on this diagram · 1 diagram in section
