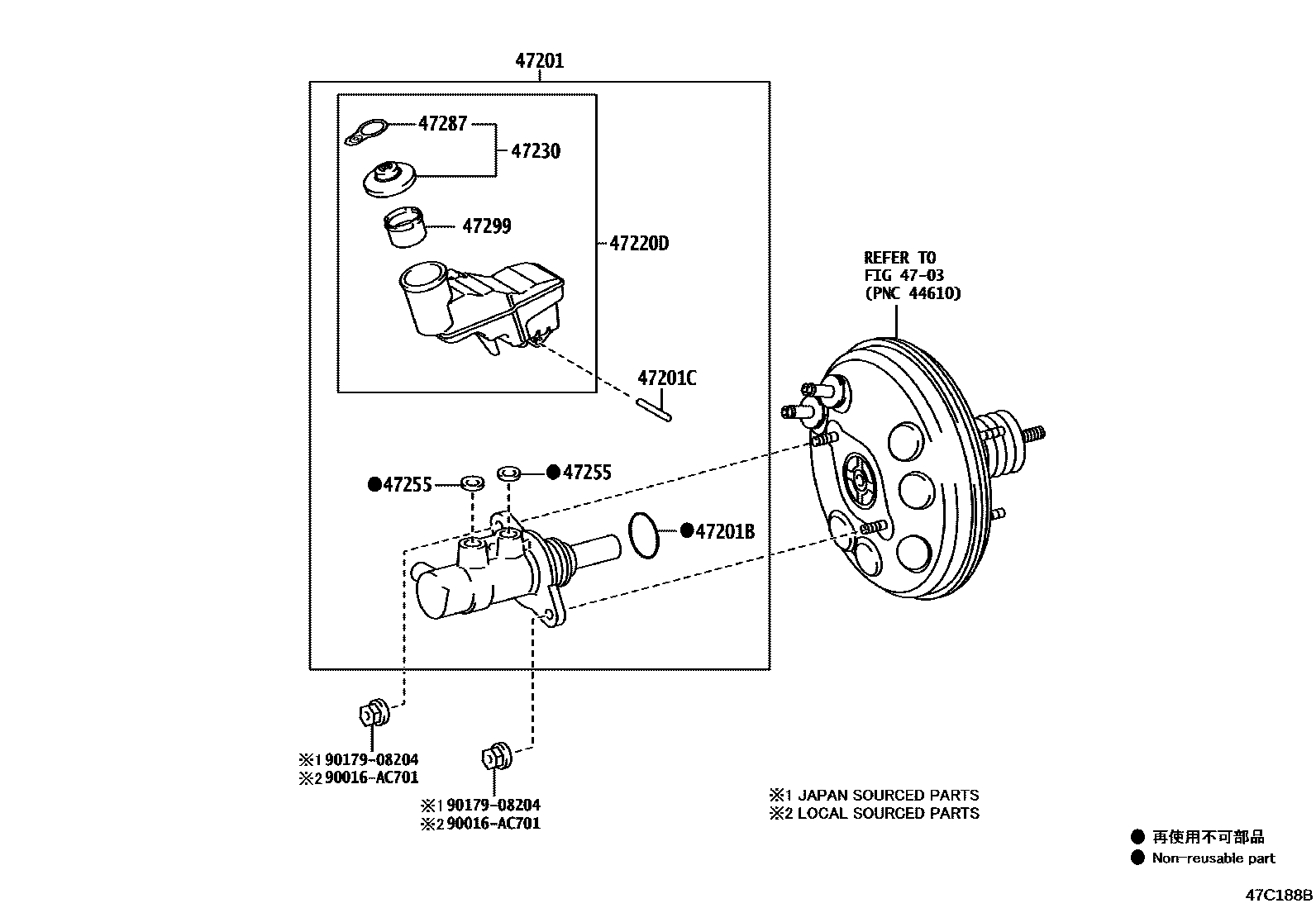

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D630iNSP150..CVT201911

main47201-0D640iNSP150..5F201911

main47201-0D820iNSP151..CVT201911-202405

main47201-0DB00iNSP151..5F201911-202405

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH903iNSP151201911-202405

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP151201911-202405

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D370iNSP150..CVT201911

main47220-0D380iNSP151..5F201911-202405

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iNSP151201911-202405

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001×2iNSP151201911-202405

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNSP151201911-202405

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iNSP151201911-202405

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
