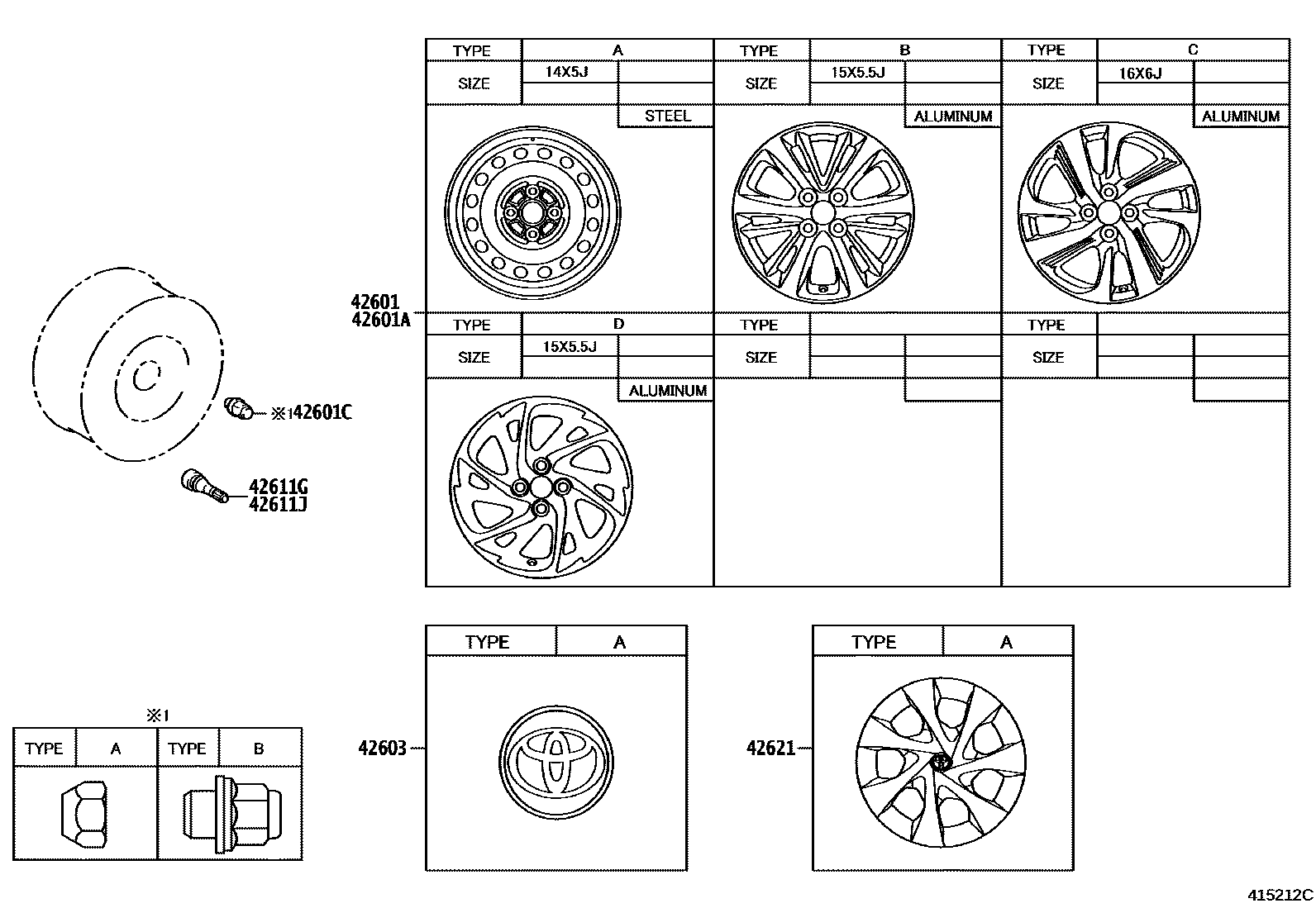

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-0D691×4iNSP150..D201911

14X5J, #,TYPE A:REFER ILLUST.

main42611-0DF10×4iNSP150..R201911-202103

15X5.5J, #,TYPE B:REFER ILLUST.

main42611-0DF80×4iNSP151201911-202405

16X6J, #,TYPE C:REFER ILLUST.

main42611-0DM20×4iNSP150..R202103

15X5.5J,#,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0D691iNSP150..D201911

14X5J, #,TYPE A:REFER ILLUST.

main42611-0DF10iNSP150..R201911-202103

15X5.5J, #,TYPE B:REFER ILLUST.

main42611-0DF80iNSP151201911-202405

16X6J, #,TYPE C:REFER ILLUST.

main42611-0DM20iNSP150..R202103

15X5.5J,#,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iNSP150..D201911

TYPE A:REFER ILLUST.

main90942-01033×16iNSP15#..G,R201911-202010

TYPE B:REFER ILLUST.

main90942-T1003×16iNSP151202010-202405

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0D200×4iNSP151201911-202405

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iNSP151201911-202405

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNSP151201911-202405

42621CAP, WHEEL

main42602-0D380×4iNSP150..D201911

TYPE A:REFER ILLUST.

7 parts on this diagram · 1 diagram in section
