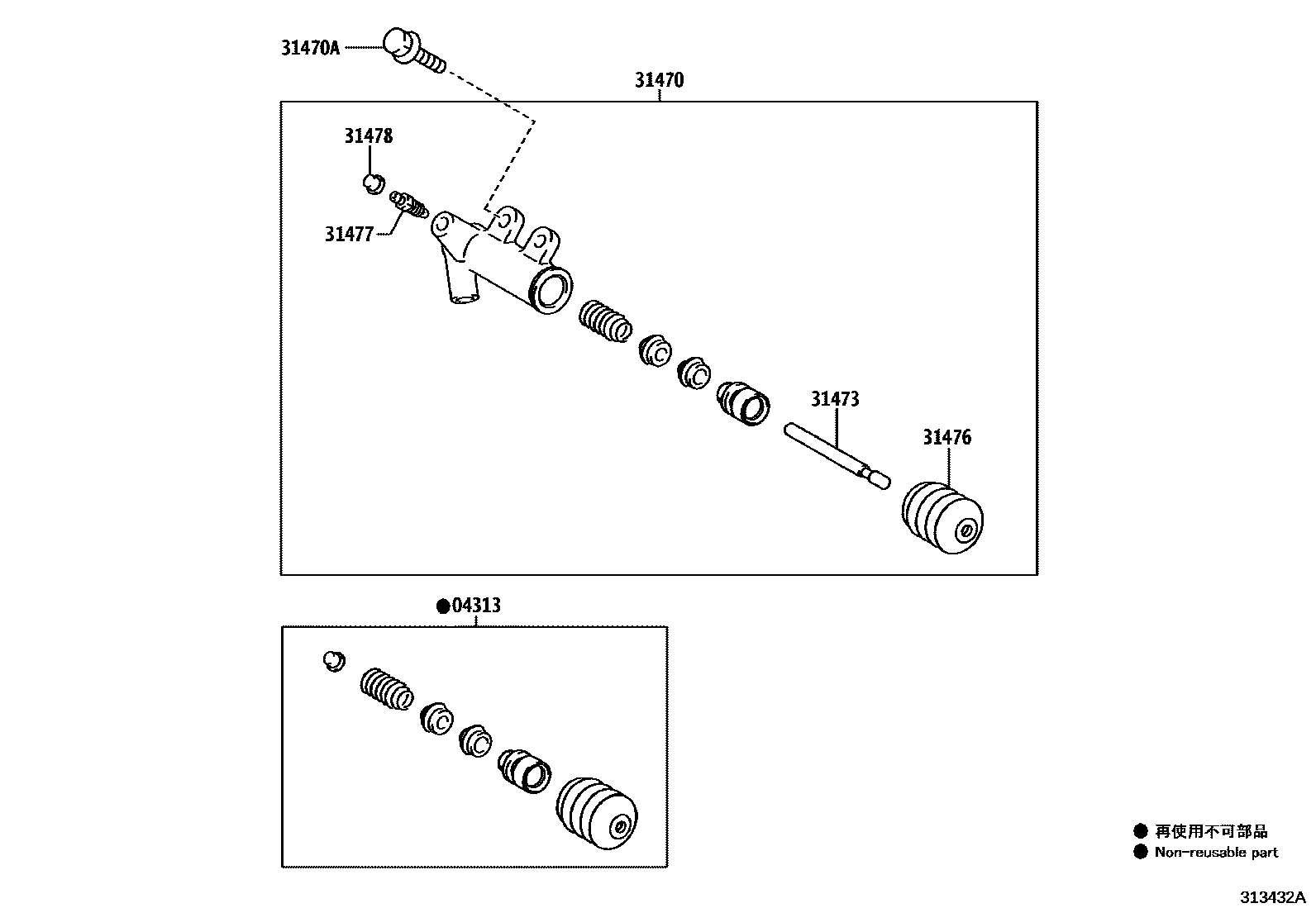

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K030iNSP151..5F201911-202405

main04313-0K040iNSP150..5F201911

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0D080iNSP150..5F201911

main31470-0D090iNSP151..5F201911-202405

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0304iNSP151..5F201911-202405

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-0D020iNSP150..5F201911-202405

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iNSP151..5F201911-202405

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNSP151..5F201911-202405

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNSP151..5F201911-202405

7 parts on this diagram · 1 diagram in section
