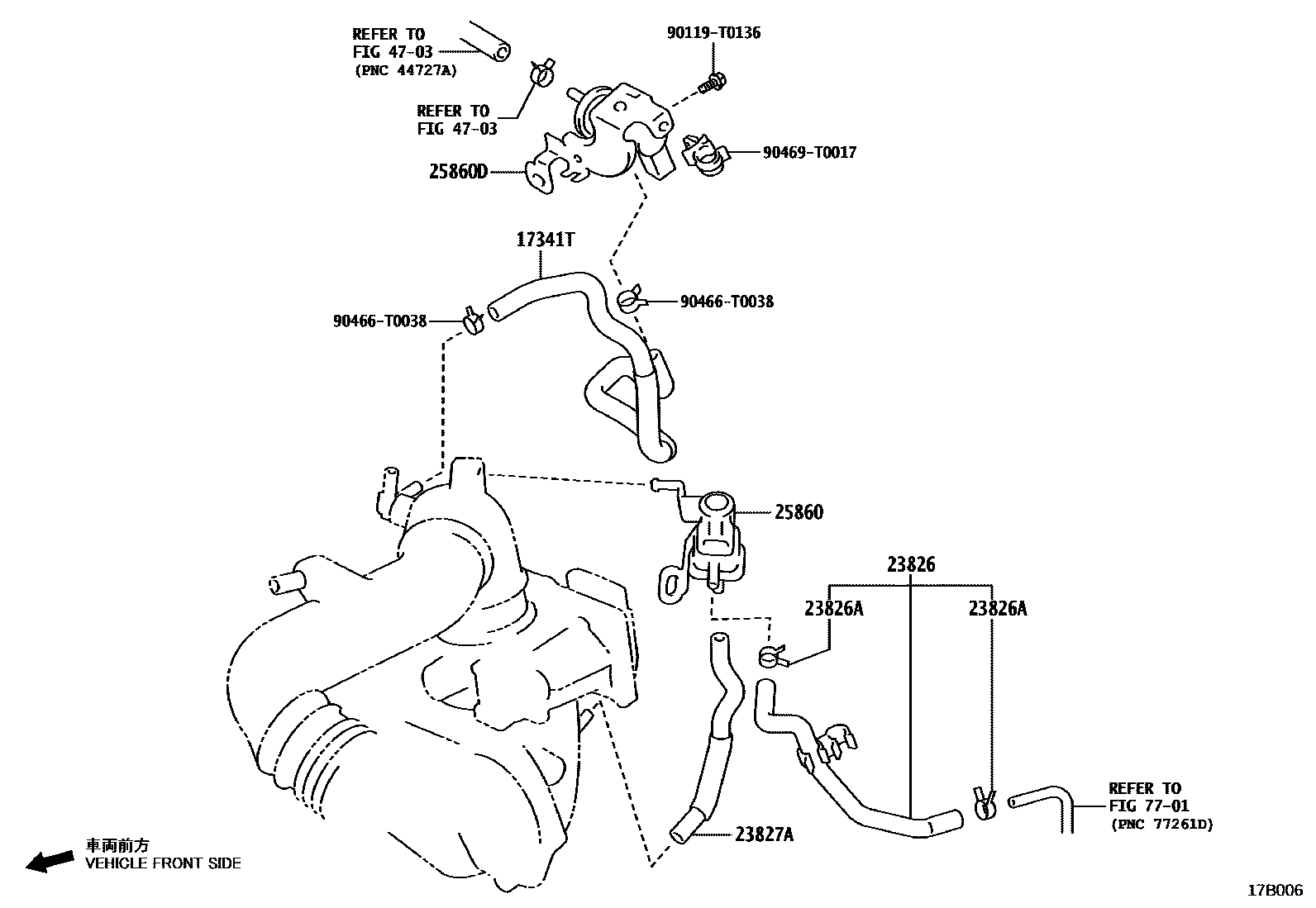

VACUUM PIPING

0001 1 0002 1

17341THOSE, AIR, NO.1

main17341-0Y070i2NRFE..NSP151..CVT201911-202405

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0Y140i2NRFE..NSP151201911-202405

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i2NRFE..NSP151201911-202405

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0Y140i2NRFE..NSP151201911-202405

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0Y090i2NRFE..NSP151201911-202405

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-0Y040i2NRFE..NSP151..CVT201911-202405

4703

7701

90119T0136

main90119-T0136

90466T0038

main90466-T0038

90469T0017

main90469-T0017

11 parts on this diagram · 2 diagrams in section
