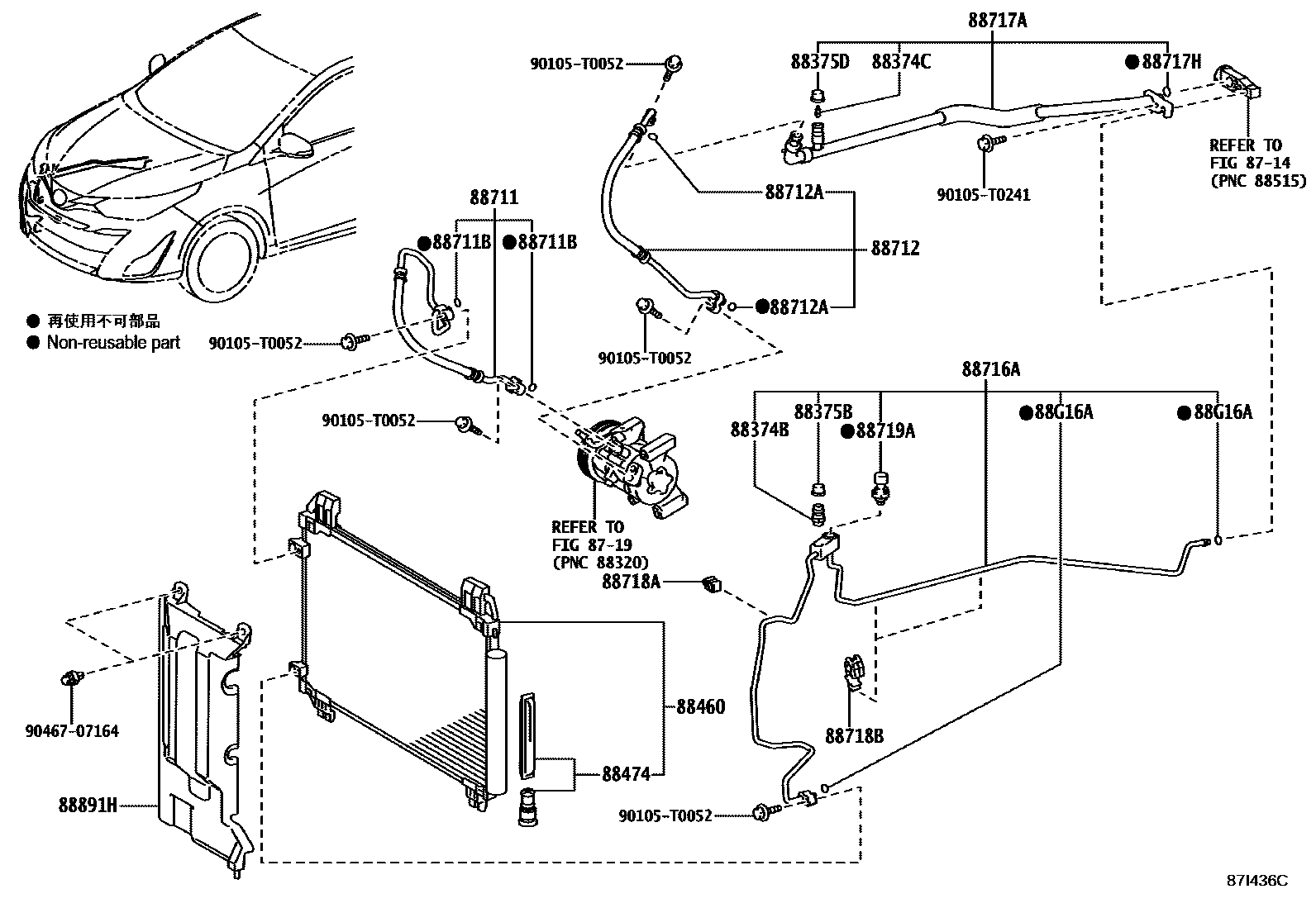

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711BRING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88716APIPE, COOLER REFRIGERANT LIQUID, A
88717APIPE, COOLER REFRIGERANT SUCTION, A
88717HRING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88891HCOVER, COOLER, NO.1
88G16ARING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
ID=6.7,OD=10.3
90105T0052
main90105-T0052
90105T0241
main90105-T0241
9046707164
main90467-07164
23 parts on this diagram · 1 diagram in section
