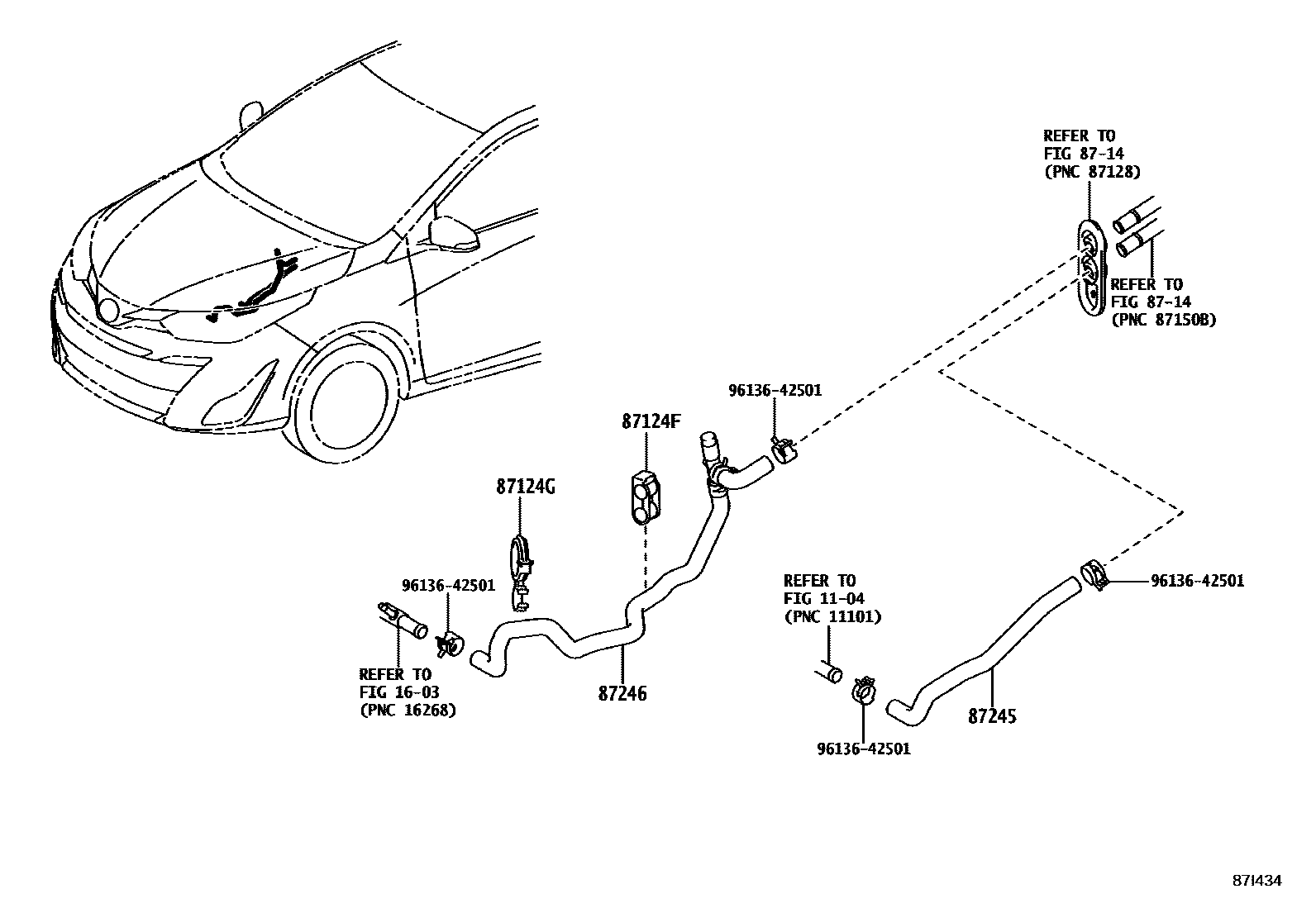

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87124FCLAMP, HEATER HOSE, NO.1

main87124-0D550iNSP15#..6F..BZ..R201911-202501

87124GCLAMP, HEATER HOSE, NO.2

main87124-0D610iNSP15#..6F..BZ..R201911-202501

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-0D700iNSP151..CVT..BZ..D201911-202501

main87245-0D760iNSP15#..6F..BZ..R201911-202501

87246HOSE, HEATER WATER, OUTLET

main87209-0D710iNSP151..CVT..BZ..D201911-202501

main87209-0D740iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

9613642501

main96136-42501

8 parts on this diagram · 2 diagrams in section
