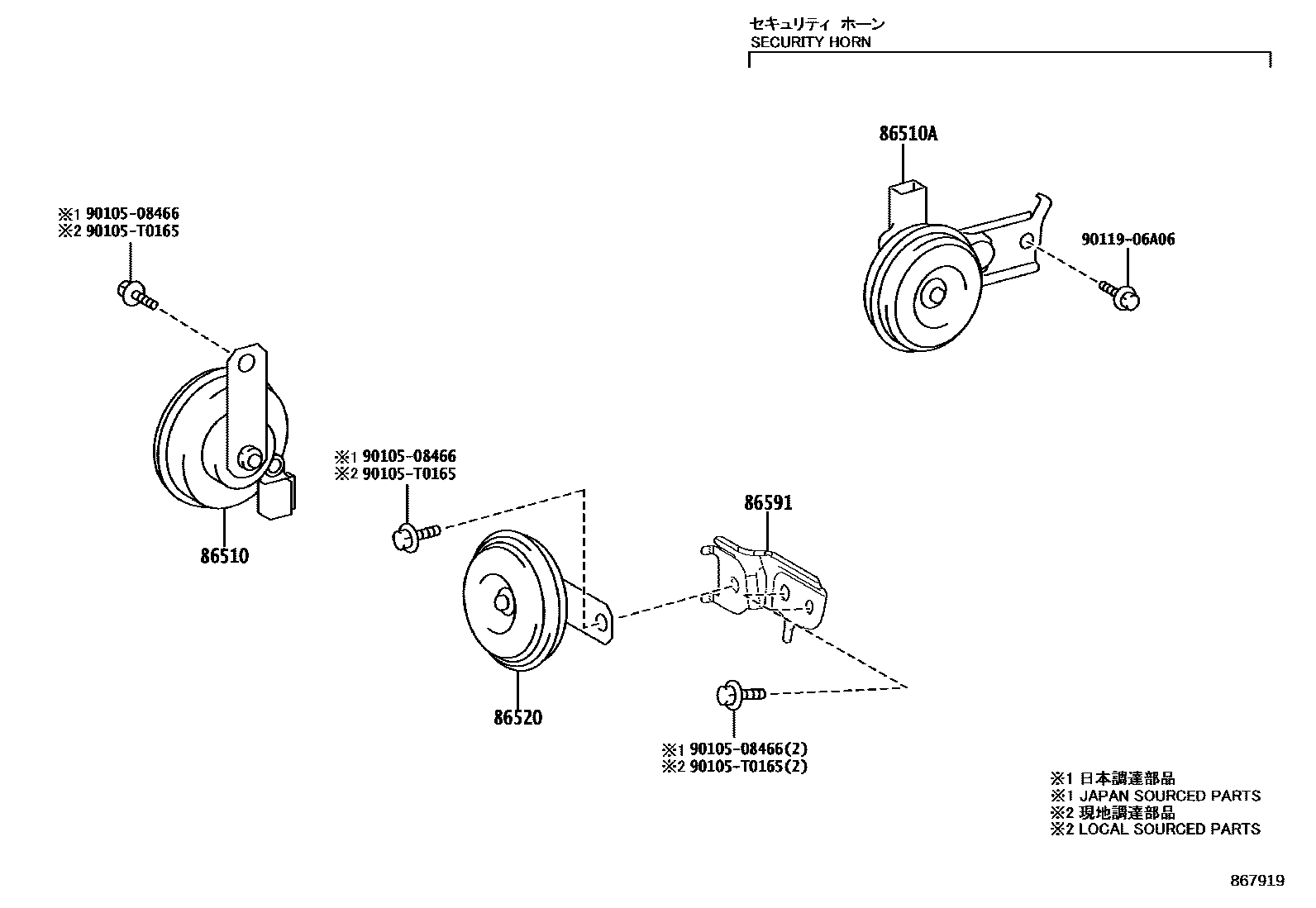

HORN

86510HORN ASSY, HIGH PITCHED

main86500-02030iNSP151..CVT..BZ..(G,R,V)202201-202501

main86500-0K030iNSP15#..BZ201911-201912

main86510-0K010iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..(R,V)202201-202501

86510AHORN ASSY, SECURITY

main86560-0D061supersedes 86560-0D061iNSP151..4D..GEN..(D,G)202102

86520HORN ASSY, LOW PITCHED

main86500-0D060iNSP151..CVT..BZ..D202201-202206

main86520-0D160iNSP151..AGT..(R,V);NSP151..(AGT,GEN)..(D,G)201911

86591BRACKET, HORN

main86591-0D060iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

9010508466

main90105-08466

90105T0165

main90105-T0165

9011906A06

main90119-06A06

7 parts on this diagram · 1 diagram in section
