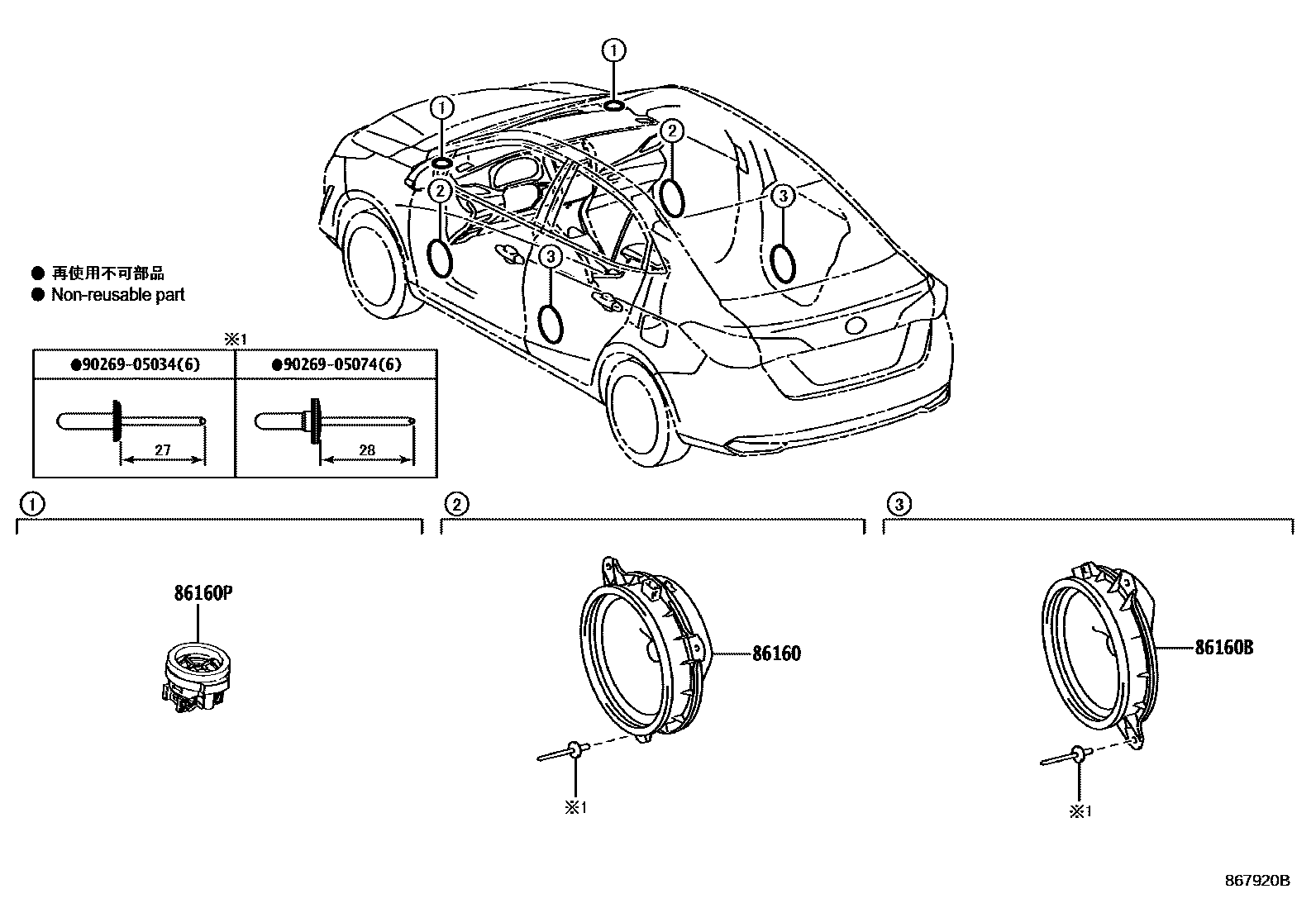

SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-02C70iNSP15#..BZ..D201911-202103

main86160-02D40iNSP15#..6F..BZ..R202103-202312

main86160-02D41iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202401-202501

86160BSPEAKER ASSY, REAR

main86160-02C70iNSP15#..BZ..D201911-202103

main86160-02D40iNSP15#..6F..BZ..R202103-202312

main86160-02D41iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202401-202501

86160PSPEAKER ASSY, FRONT NO.2

main86160-0D420iNSP151..5D..6F..BZ..R201911-202201

main86160-0D420iNSP151..6F..AGT;NSP151..6F..GEN..V;NSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,V);NSP151..4D..CVT..GEN..V202201-202501

XL-SPORT PACKAGE(BRAZIL)

9026905034

main90269-05034

9026905074

main90269-05074

5 parts on this diagram · 2 diagrams in section
