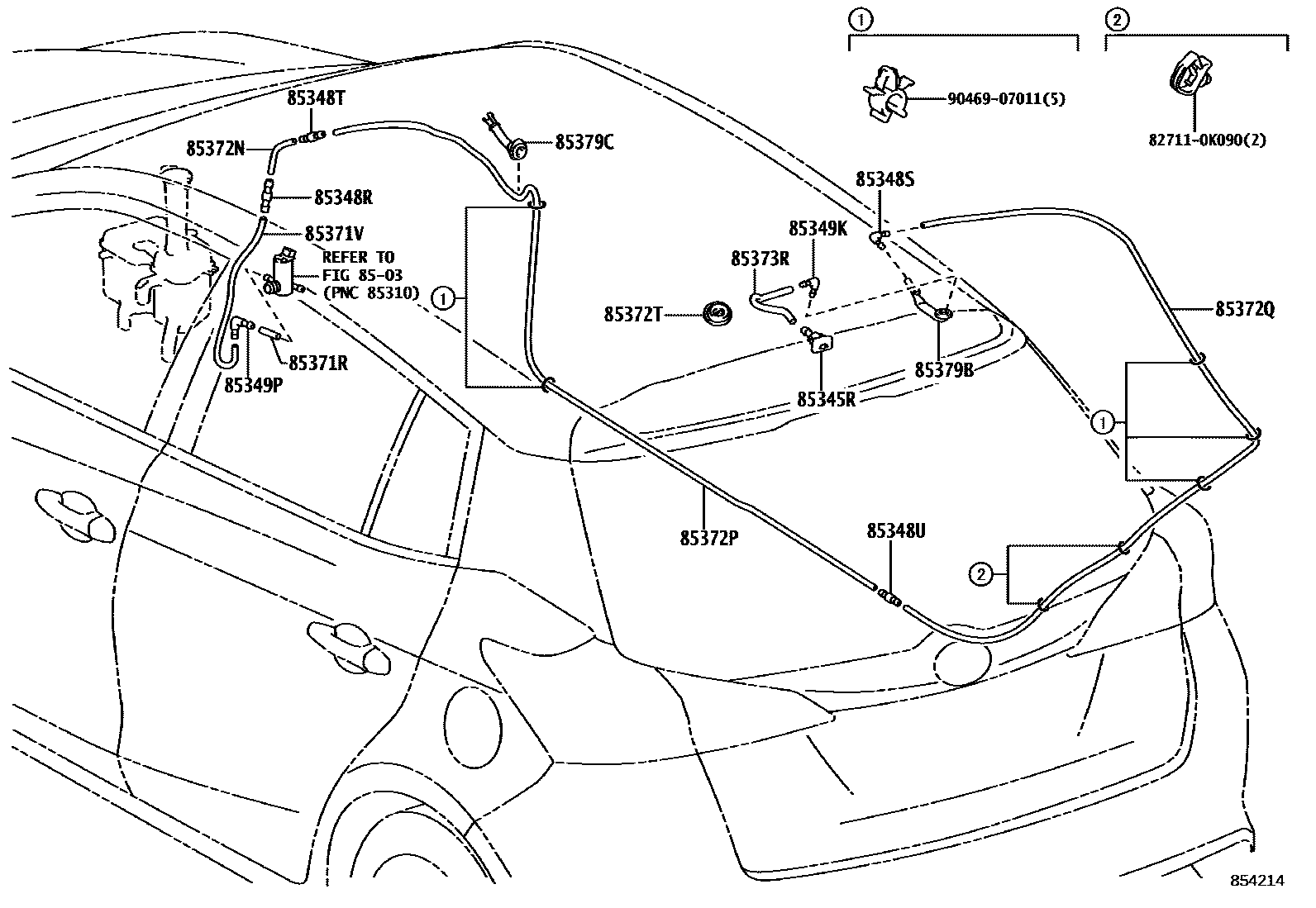

Toyota YARIS 14B — REAR WASHER
8503WINDSHIELD WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
827110K090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9046907011
19 parts on this diagram · 1 diagram in section
REAR WASHER for Toyota YARIS 14B
This section contains 19 genuine Toyota parts for the REAR WASHER system of the Toyota YARIS 14B. Key components include: WINDSHIELD WASHER, NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2.
