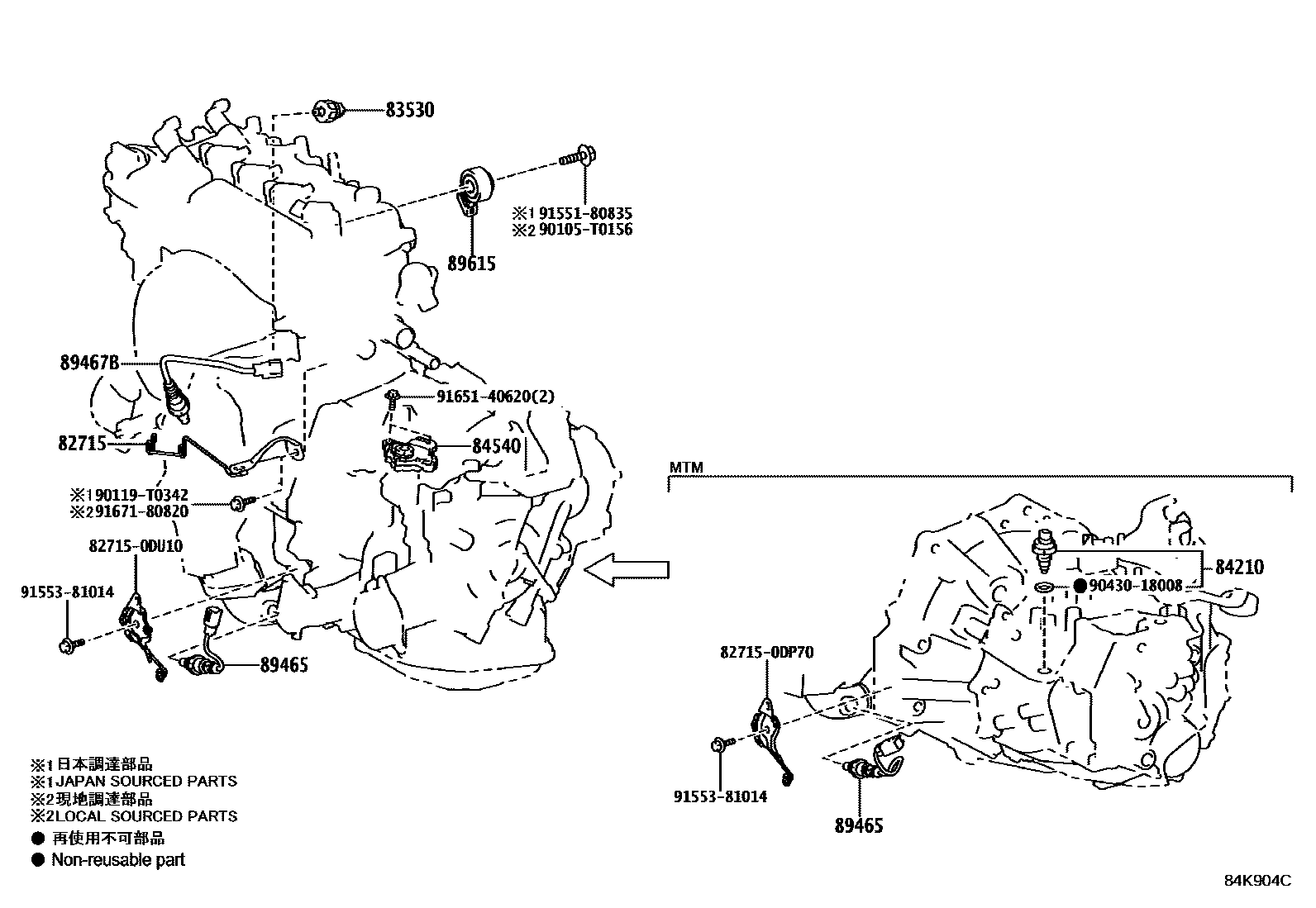

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1DOOR,ROOF,FLOOR & LUGGAGE 0009 1DOOR,ROOF,FLOOR & BACK DOOR

82715BRACKET,WIRING HARNESS CLAMP

main82715-0DL90iNSP151..CVT..BZ..D201911-202501

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNSP15#..6F..BZ..R201911-202501

DENSO

main83530-60020iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNSP15#..6F..BZ..R201911-202501

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNSP151..CVT..(AGT,BZ)201911-202501

89465SENSOR, OXYGEN

main89465-52740iNSP151..CVT..BZ..D201911-202501

89467BSENSOR, AIR FUEL RATIO

main89467-30050iNSP151..AGT..(R,V);NSP151..(AGT,GEN)..(D,G)201911-202501

main89467-52210iNSP150;NSP151..4D..BZ..D;NSP151..BZ..(G,R,V)201911

main89467-52320iNSP151..CVT..BZ..D202201-202501

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

827150DP70BRACKET,WIRING HARNESS CLAMP

main82715-0DP70

827150DU10BRACKET,WIRING HARNESS CLAMP

main82715-0DU10

90105T0156

main90105-T0156

90119T0342

main90119-T0342

9043018008

main90430-18008

9155180835

main91551-80835

9155381014

main91553-81014

9165140620

main91651-40620

9167180820

main91671-80820

16 parts on this diagram · 9 diagrams in section
