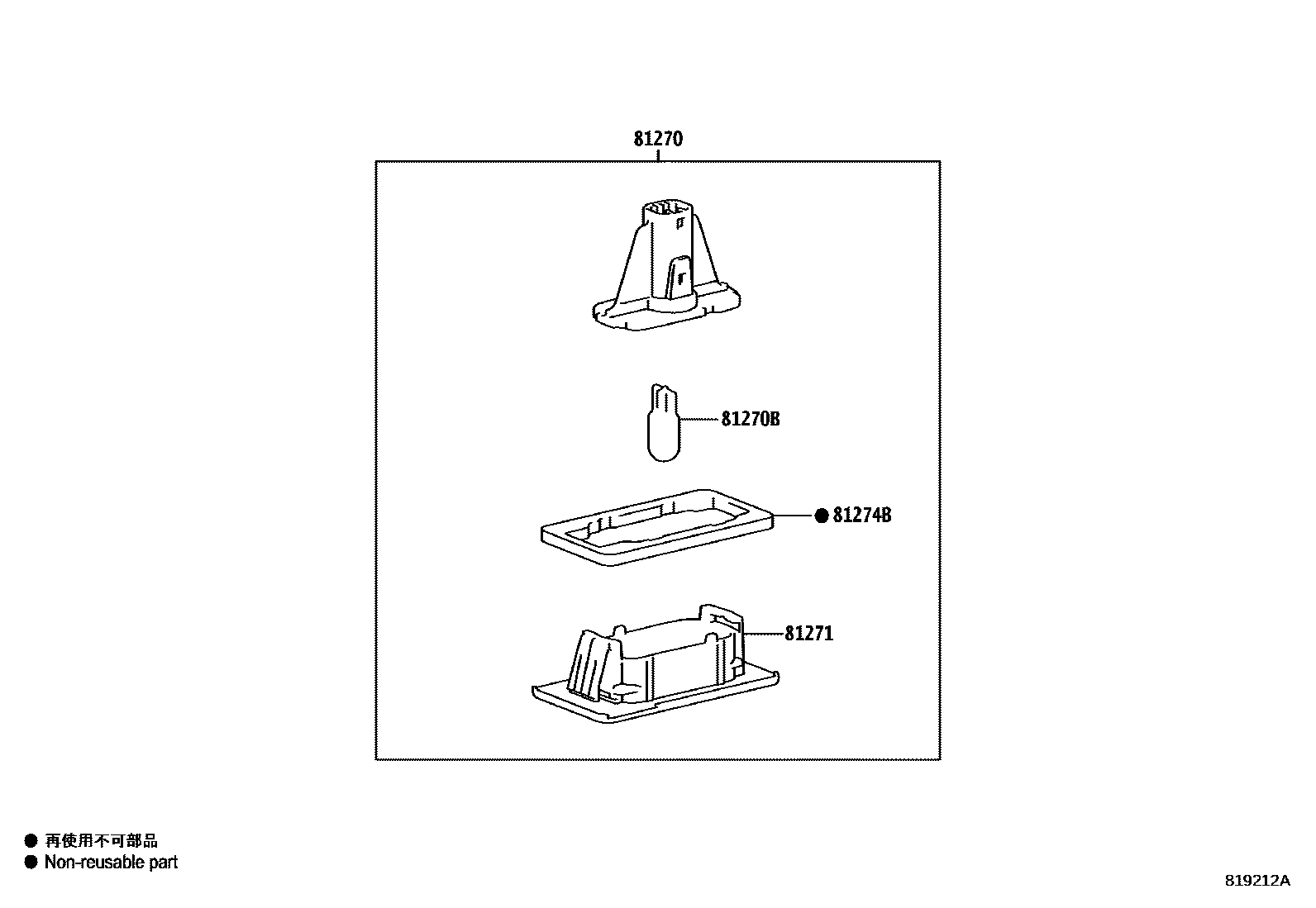

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-0D120×2iNSP15#..5D..6F..BZ..R201911-202104

main81270-0D200×2iNSP151..4D..6F..BZ..R201911-202104

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-TB003×2iNSP151..4D..6F..BZ..R201911-202104

12V 5W

main99132-12050×2iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0D120×2iNSP15#..5D..6F..BZ..R201911-202104

main81271-0D200×2iNSP151..4D..CVT..GEN..(D,G);NSP151..4D..6F..(BZ,GEN)..(D,G)201911

81274BPACKING, LICENSE PLATE LAMP

main81274-02130×2iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)202201-202501

main81274-0D200×2iNSP151..4D..6F..AGT;NSP151..4D..CVT..(AGT,BZ)201911-202201

4 parts on this diagram · 2 diagrams in section
