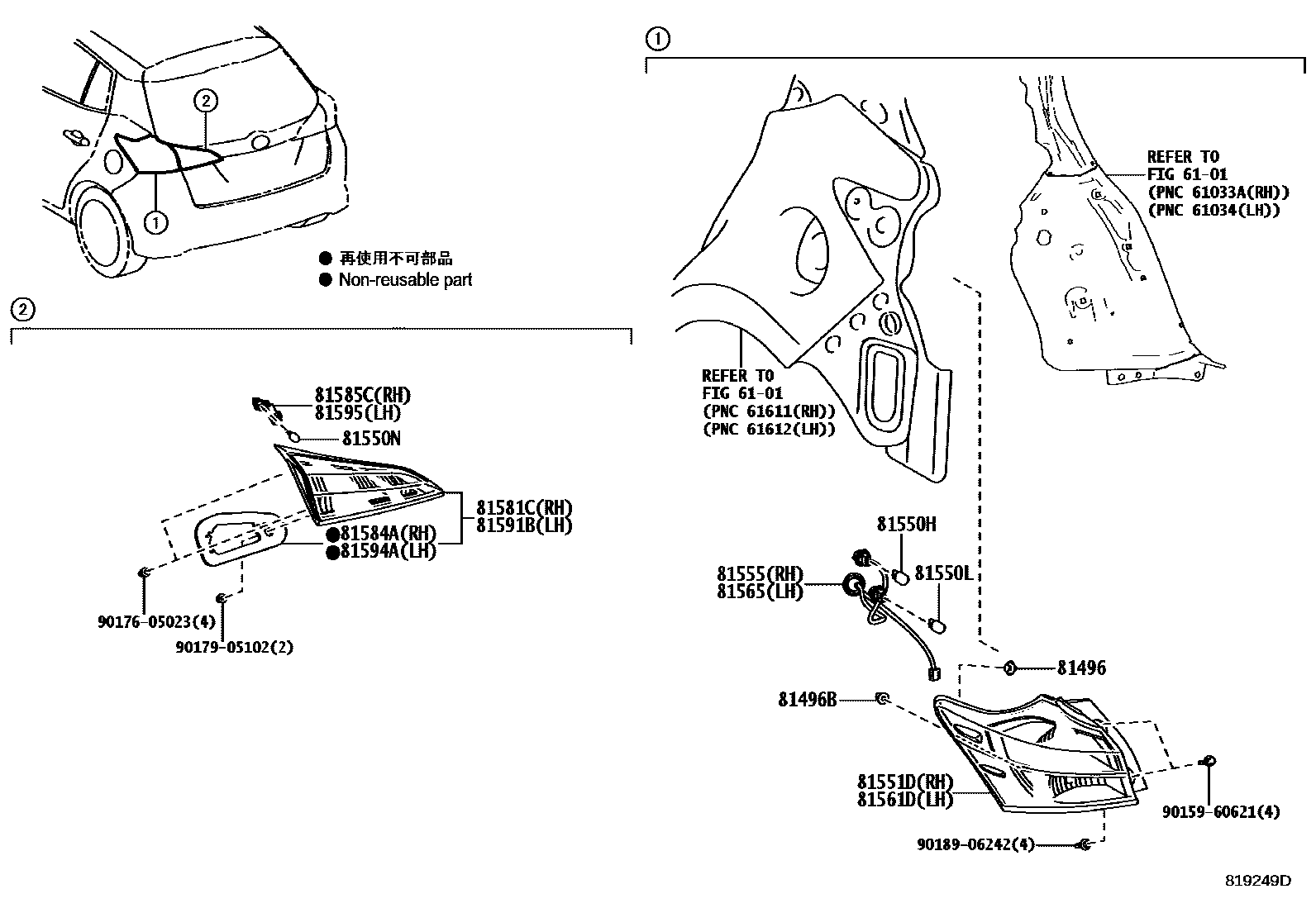

REAR COMBINATION LAMP

0001 1TAIL & STOP LAMP = BULB 0002 1TAIL & STOP LAMP = LED 0003 1TAIL & STOP LAMP = BULB 0004 1TAIL & STOP LAMP = LED

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iNSP151..CVT..BZ..D202201-202206

81496BGUIDE, REAR LAMP

main81496-52020×2iNSP15#..5D..6F..BZ..R201911-202104

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iNSP15#..6F..BZ..R201911-202104

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iNSP151..4D..6F..BZ..R201911-202104

12V 21W,AMBER

main90981-15021×2iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202201

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0DA00iNSP15#..5D..6F..BZ..R201911-202104

main81551-0DA10iNSP151..5D..V;NSP151..5D..AGT..G201911-202201

SPORT PACKAGE(LATIN AMERICA)

main81551-0DB00iNSP151..4D..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL)

main81551-0DB10iNSP151..4D..AGT..R;NSP151..4D..CVT..BZ..(D,G,R)201911-202201

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0DA00iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0DA00iNSP15#..5D..6F..BZ..R201911-202104

main81561-0DA10iNSP151..5D..BZ..V;NSP151..5D..6F..(AGT,GEN)..(G,V)202201-202501

XL-SPORT PACKAGE(BRAZIL)

main81561-0DB00iNSP151..4D..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL)

main81561-0DB10iNSP151..4D..6F..BZ..R201911-202104

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0DA00iNSP15#..5D..6F..BZ..R201911-202104

81581CLENS AND BODY, REAR LAMP, RH

main81581-0D450iNSP151..5D..AGT..R;NSP15#..5D..(BZ,GEN)..(D,G,R)201911-202002

main81581-0D451iNSP151..5D..AGT..R;NSP151..5D..6F..GEN..G;NSP151..5D..CVT..BZ..(G,R)202002-202201

main81581-0D460iNSP151..5D..V;NSP151..5D..AGT..G201911-202002

SPORT PACKAGE(LATIN AMERICA)

main81581-0D461iNSP151..5D..V;NSP151..5D..AGT..G202002-202201

SPORT PACKAGE(LATIN AMERICA)

main81581-0D550iNSP151..4D..V;NSP151..4D..AGT..G201911-202201

main81581-0D560iNSP151..4D..(AGT,GEN)..R;NSP151..4D..CVT..BZ..(G,R)202201-202501

81584AGASKET, REAR LAMP RH

main81582-0D450iNSP151..5D..BZ..D202201-202206

main81582-0D550iNSP151..4D..CVT..GEN..(D,G);NSP151..4D..6F..(BZ,GEN)..(D,G)201911

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-0D450iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911

81591BLENS AND BODY, REAR LAMP, LH

main81591-0D450iNSP151..5D..AGT..R;NSP15#..5D..(BZ,GEN)..(D,G,R)201911-202002

main81591-0D451iNSP151..5D..BZ..D202201-202206

main81591-0D460iNSP151..5D..V;NSP151..5D..AGT..G201911-202002

SPORT PACKAGE(LATIN AMERICA)

main81591-0D461iNSP151..5D..BZ..V;NSP151..5D..6F..(AGT,GEN)..(G,V)202201-202501

XL-SPORT PACKAGE(BRAZIL)

main81591-0D550iNSP151..4D..V;NSP151..4D..AGT..G201911-202201

main81591-0D560iNSP151..4D..CVT..BZ..D202201-202206

81594AGASKET, REAR LAMP LH

main81592-0D450iNSP151..5D..BZ..D202201-202206

main81592-0D550iNSP151..4D..CVT..GEN..(D,G);NSP151..4D..6F..(BZ,GEN)..(D,G)201911

81595SOCKET & WIRE, REAR LAMP, LH

main81585-0D450iNSP151..5D..BZ..D202201-202206

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

20 parts on this diagram · 4 diagrams in section
