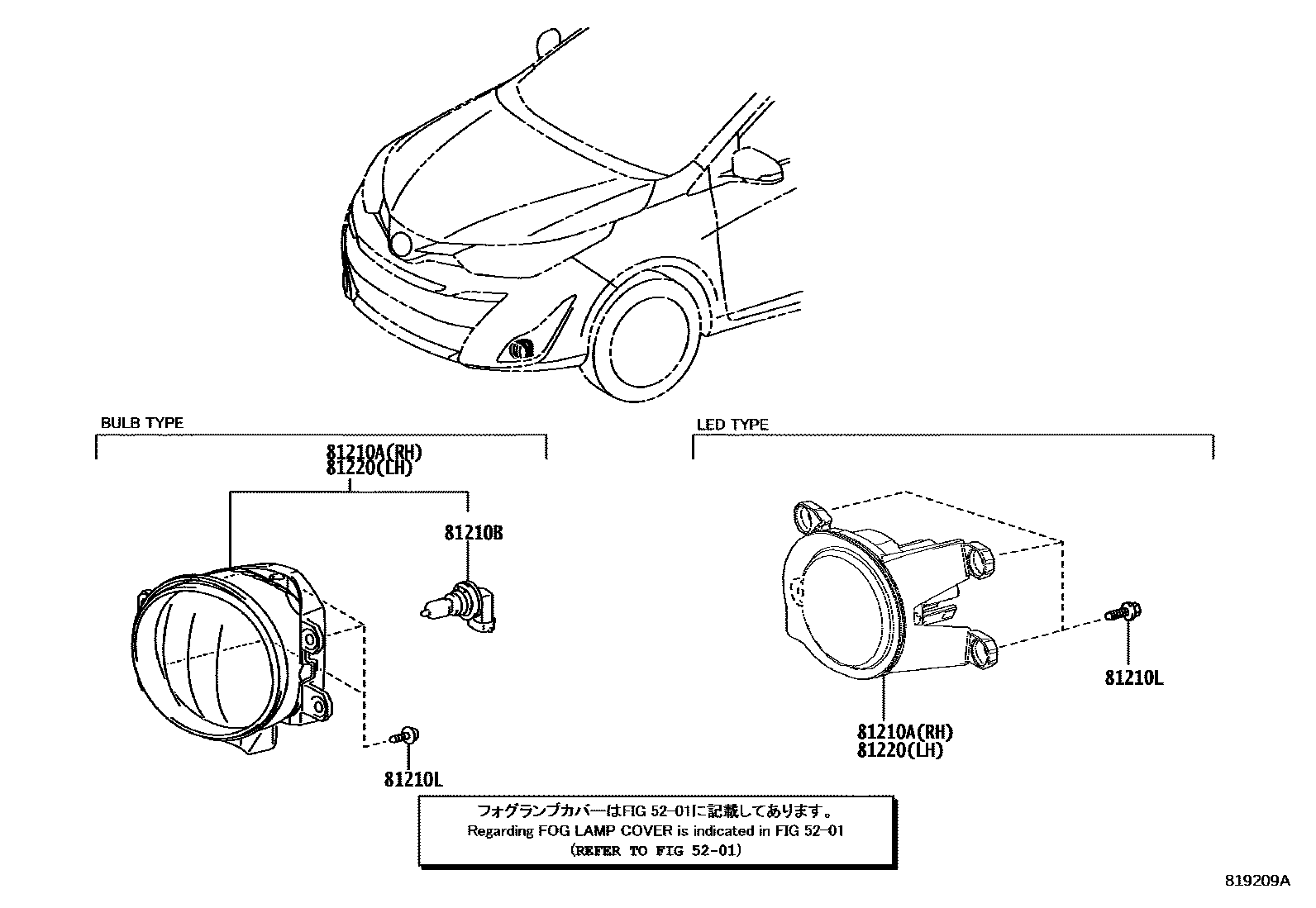

FOG LAMP

81210ALAMP ASSY, FOG, RH

main81210-0D110supersedes 81210-0D110iNSP151..6F..AGT..(G,V);NSP151..5D..6F..GEN..G;NSP151..CVT..(AGT,BZ)..(G,V)201911-202201

main81210-02220supersedes 81210-0D110iNSP151..6F..V;NSP151..4D..AGT..G;NSP151..4D..GEN..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G;NSP151..5D..6F..GEN..R;NSP151..4D..CVT..GEN..V202201-202501

MLM PACKAGE

81210BBULB, FOG LAMP

main90981-13090×2supersedes 90981-13090iNSP151..6F..AGT..(G,V);NSP151..5D..6F..GEN..G;NSP151..CVT..(AGT,BZ)..(G,V)201911-202201

12V 19W

81210LSCREW(FOR FRONT FOG LAMP)

main90167-50063×6iNSP151..6F..AGT..(G,V);NSP151..5D..6F..GEN..G;NSP151..CVT..(AGT,BZ)..(G,V)201911-202201

81220LAMP ASSY, FOG, LH

main81220-0D110supersedes 81220-0D110iNSP151..6F..AGT..(G,V);NSP151..5D..6F..GEN..G;NSP151..CVT..(AGT,BZ)..(G,V)201911-202201

main81220-02150supersedes 81220-0D110iNSP151..6F..V;NSP151..4D..AGT..G;NSP151..4D..GEN..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G;NSP151..5D..6F..GEN..R;NSP151..4D..CVT..GEN..V202201-202501

MLM PACKAGE

4 parts on this diagram · 1 diagram in section
