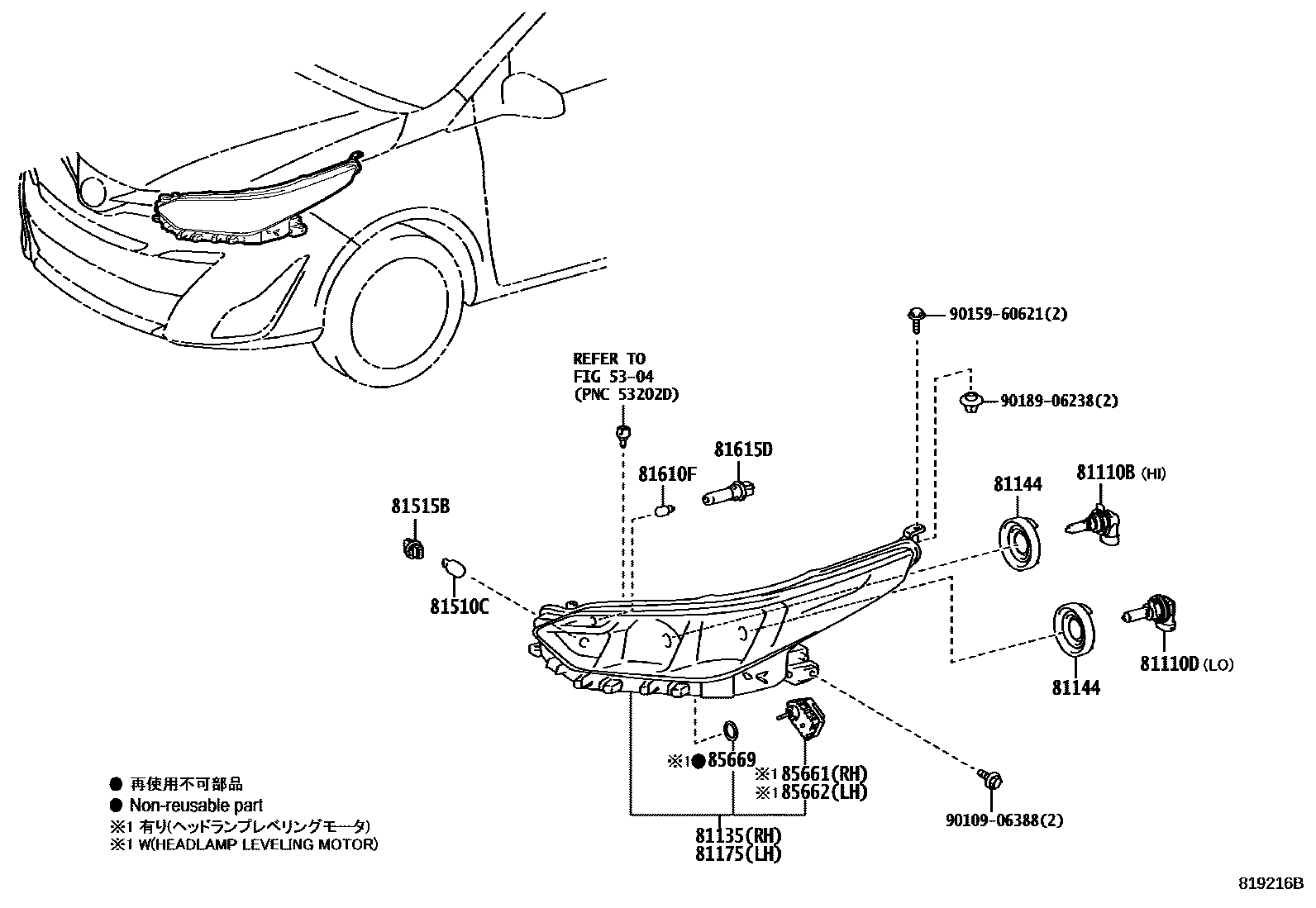

HEADLAMP

0001 1HALOGEN(MULTI REFLECTOR TYPE)0002 1HALOGEN(PROJECTOR TYPE) 0003 1LED

5304

81110HEADLAMP ASSY, RH

main81110-YP210iNSP151..(BZ,GEN)..V202201-202207

MLM PACKAGE

main81110-YP211iNSP151..5D..CVT..GEN..V202208

MLM PACKAGE

main81110-YP230iNSP151..AGT..V202201-202207

MLM PACKAGE

main81110-YP231iNSP151..6F..AGT..V202208-202501

MLM PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13099×2supersedes 90981-13046iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

12V 65W(SAE),60W(UN)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0DJ00iNSP15#..6F..BZ..R201911-202104

main81130-0DJ10iNSP151..4D..AGT..G;NSP151..5D..6F..AGT..G202201-202501

main81130-0DL00supersedes 81130-0DJ10iNSP151..AGT..R201911-202201

main81130-0DQ70supersedes 81130-0DQ70iNSP151..BZ..V201911-202201

main81140-YP210iNSP151..(BZ,GEN)..V202201-202208

MLM PACKAGE

main81140-YP211supersedes 81130-0DJ20iNSP151..5D..CVT..GEN..V202208

MLM PACKAGE

main81140-YP230supersedes 81130-0DL20iNSP151..AGT..V202201-202208

MLM PACKAGE

main81140-YP231supersedes 81130-0DL20iNSP151..6F..AGT..V202208-202501

MLM PACKAGE

81144COVER, HEADLAMP, NO.1

main90075-65006×4supersedes 90075-65006iNSP15#..6F..BZ..R201911-202104

81175UNIT ASSY, HEADLAMP, LH

main81170-0DJ00iNSP151..5D..CVT..GEN..R202201

main81170-0DJ10iNSP151..4D..AGT..G;NSP151..5D..6F..AGT..G202201-202501

main81170-0DL00supersedes 81170-0DJ10iNSP151..AGT..R201911-202201

main81170-0DQ60supersedes 81170-0DQ60iNSP151..BZ..V201911-202201

main81070-YP210iNSP151..(BZ,GEN)..V202201-202208

MLM PACKAGE

main81070-YP211supersedes 81170-0DJ20iNSP151..5D..CVT..GEN..V202208

MLM PACKAGE

main81070-YP230supersedes 81170-0DL20iNSP151..AGT..V202201-202208

MLM PACKAGE

main81070-YP231supersedes 81170-0DL20iNSP151..6F..AGT..V202208-202501

MLM PACKAGE

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNSP15#..6F..BZ..R201911-202104

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNSP15#..6F..BZ..R201911-202104

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069×2iNSP151..5D..CVT..GEN..R202201

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60089×2iNSP15#..6F..BZ..R201911-202104

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNSP151..AGT201911-202201

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNSP151..AGT201911-202201

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNSP151..5D..CVT..AGT202201

MLM PACKAGE

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

17 parts on this diagram · 3 diagrams in section
