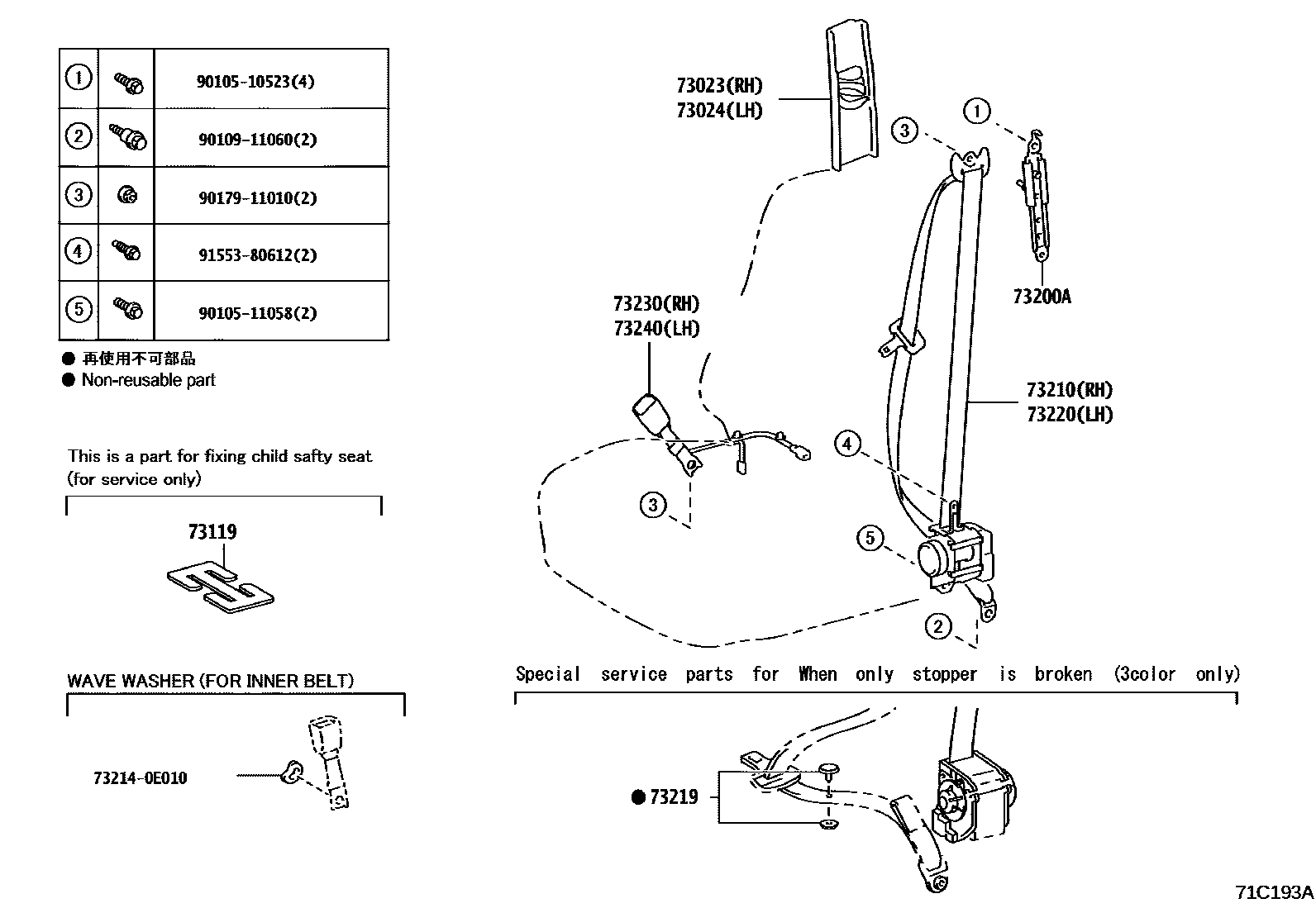

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT 0003 1REAR SEAT BELT 0005 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02050-B1iNSP151..4D..6F..BZ..R201911-202104

GRAY,TRIM2#

main73023-02050-C0iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02050-B1iNSP151..4D..6F..BZ..R201911-202104

GRAY,TRIM2#

main73024-02050-C0iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202201

BLACK,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNSP15#..6F..BZ..R201911-202104

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D570-C0iNSP151..4D..6F..AGT;NSP151..4D..CVT..(AGT,BZ)201911-202201

BLACK/GRAY,TRIM2#

main73210-0D570-C1iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911

BLACK/BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iNSP15#..6F..BZ..R201911-202104

BLACK

main73219-33020iNSP15#..6F..BZ..R201911-202104

GRAY

main73219-33030iNSP15#..6F..BZ..R201911-202104

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D560-C0iNSP151..4D..CVT..GEN..(D,G);NSP151..4D..6F..(BZ,GEN)..(D,G)201911

BLACK/GRAY,TRIM2#

main73220-0D560-C1iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

BLACK/BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D750-C0iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D730-C0iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010

9010510523

main90105-10523

9010511058

main90105-11058

9010911060

main90109-11060

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 4 diagrams in section
