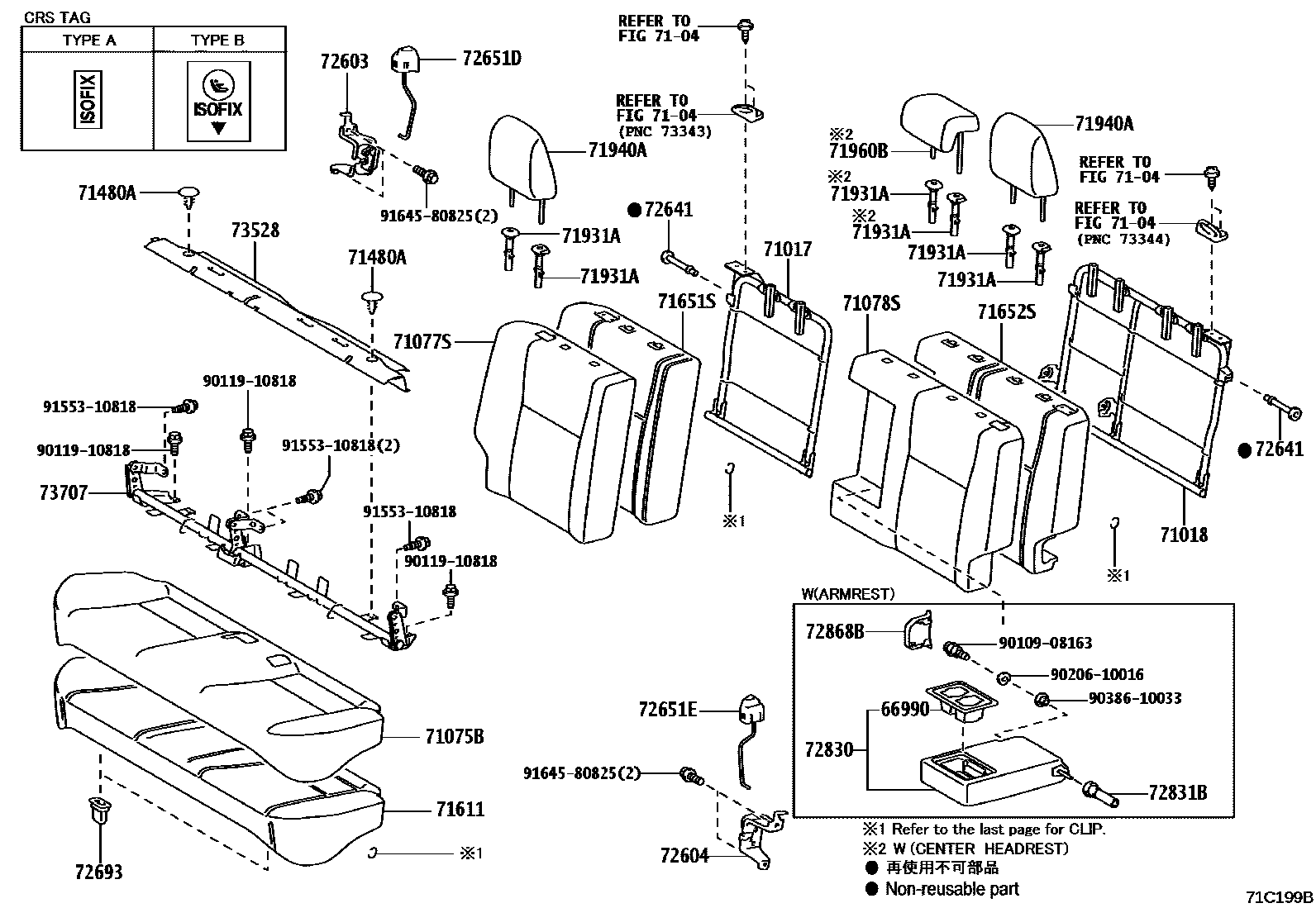

REAR SEAT & SEAT TRACK

0001 16:4 SPLIT SEAT 0002 1UNITED FOLDING SEAT 0004 1UNITED FOLDING SEAT 0006 16:4 SPLIT SEAT 0008 16:4 SPLIT SEAT 0009 1CLIP

66990HOLDER ASSY, CUP

main66991-0D060-C0iNSP151..6F..AGT;NSP151..5D..CVT..R;NSP151..5D..6F..GEN..G;NSP151..CVT..(AGT,BZ)..(G,V)201911-202201

XL-PLUS PACKAGE(BRAZIL),BLACK,TRIM2#

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D700iNSP151..4D..6F..AGT;NSP151..4D..CVT..(AGT,BZ)201911-202201

main71017-0D710iNSP151..5D..6F..BZ..G;NSP151..5D..CVT..GEN..G201911

main71017-0D830iNSP151..5D..CVT..BZ..(G,V);NSP151..5D..6F..(AGT,GEN)..(G,V)202201-202501

XL-SPORT PACKAGE(BRAZIL)

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0D410iNSP151..4D..6F..D;NSP151..4D..CVT..GEN..D201911

main71018-0D420supersedes 71018-0D410iNSP151..4D..CVT..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main71018-0D430iNSP151..5D..6F..BZ..R201911-202104

main71018-0D500iNSP151..5D..CVT..BZ..(G,V);NSP151..5D..6F..(AGT,GEN)..(G,V)202201-202501

XL-SPORT PACKAGE(BRAZIL)

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0DS40-C2supersedes 71075-0DS51-C0iNSP151..4D..6F..BZ..G201911

PARAGUAY SPEC,BLACK,TRIM2#

main71075-0DS50-C0iNSP151..4D..CVT..AGT;NSP151..4D..BZ..(G,V)201911-202108

BLACK,TRIM2#

main71075-0DS51-C0iNSP151..4D..CVT..(AGT,BZ)..(G,V)202108-202201

BLACK/LT. GRAY,TRIM2#

main71075-0DS51-C2iNSP151..4D..GEN..V;NSP151..4D..6F..AGT..G;NSP151..4D..CVT..(AGT,BZ)..(G,V)202201-202501

BLACK/LT. GRAY,TRIM2#

main71075-0DS60-C0iNSP150..CVT..R201911

BLACK,TRIM2#

main71075-0DS80-C2iNSP151..5D..CVT..R;NSP151..5D..6F..(AGT,GEN)..(G,R)201911-202201

PARAGUAY SPEC,BLACK,TRIM2#

main71075-0DS90-C0iNSP151..5D..BZ..V;NSP151..5D..CVT..AGT..G201911-202108

BLACK,TRIM2#

main71075-0DS90-C1supersedes 71075-0DS90-C1iNSP151..AGT..V201911-202108

BLACK,TRIM2#

main71075-0DS91-C0iNSP151..5D..BZ..V;NSP151..5D..CVT..AGT..G202108-202201

PARAGUAY SPEC&SPORT PACKAGE(LATIN AMERICA),BLACK/LT. GRAY,TRIM25

main71075-0DS91-C1supersedes 71075-0DS91-C1iNSP151..5D..6F..GEN..G202108-202201

BLACK/RED,TRIM2#

main71075-0DS91-C4iNSP151..5D..CVT..(AGT,GEN)..V202201

BLACK/RED,TRIM2#

main71075-0DS91-C5iNSP151..5D..6F..AGT..G;NSP151..5D..CVT..BZ..(G,V)202201-202501

BLACK/LT. GRAY,TRIM2#

main71075-0DW70-C0iNSP151..CVT..BZ..D201911-202201

BLACK,TRIM2#

main71075-0DW80-C0iNSP150..D;NSP151..5D..GEN..D201911

BLACK,TRIM2#

main71075-0U430-C1iNSP151..4D..AGT..G202201-202501

BLACK,TRIM2#

main71075-0U450-C1supersedes 71075-0DS91-C5iNSP151..5D..6F..AGT..G202201-202501

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71075-0U470-C1iNSP151..4D..CVT..BZ..D202201-202206

BLACK,TRIM2#

main71075-0U480-C1iNSP151..5D..BZ..D202201-202206

BLACK,TRIM2#

main71075-0U440-C1supersedes 71075-0DS20-C0iNSP151..4D..CVT..BZ..G202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#

main71075-0U460-C1iNSP151..5D..CVT..BZ..G202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0DP41-C1iNSP151..4D..6F..D;NSP151..4D..CVT..GEN..D201911

BLACK,TRIM2#

main71077-0DW91-C3supersedes 71077-0DW81-C1iNSP151..4D..CVT..AGT201911-202201

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71077-0DX01-C1iNSP151..4D..CVT..(AGT,BZ)..(G,V)201911-202201

BLACK,TRIM2#

main71077-0DX01-C3iNSP151..4D..GEN..V;NSP151..4D..6F..AGT..G;NSP151..4D..CVT..(AGT,BZ)..(G,V)202201-202211

BLACK,TRIM2#,CRS TAG:TYPE A

main71077-0DX02-C3iNSP151..4D..GEN..V;NSP151..4D..6F..AGT..G;NSP151..4D..CVT..(AGT,BZ)..(G,V)202211-202501

BLACK,TRIM2#,CRS TAG:TYPE B

main71077-0DX11-C5iNSP151..5D..CVT..R;NSP151..5D..6F..(AGT,GEN)..(G,R)201911-202201

PARAGUAY SPEC,BLACK,TRIM2#

main71077-0DX21-C8supersedes 71077-0DX11-C5iNSP151..AGT..V201911-202201

BLACK/RED,TRIM2#

main71077-0DX21-C9supersedes 71077-0DX21-C9iNSP151..5D..BZ..V;NSP151..5D..CVT..AGT..G201911-202201

PARAGUAY SPEC&SPORT PACKAGE(LATIN AMERICA),BLACK/LT. GRAY,TRIM25

main71077-0UF90-C1iNSP151..4D..R202201-202211

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#,CRS TAG:TYPE A

main71077-0UF91-C1iNSP151..4D..R202211-202501

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#,CRS TAG:TYPE B

main71077-0UG20-C1iNSP151..4D..CVT..BZ..D202201-202206

BLACK,TRIM2#,CRS TAG:TYPE A

main71077-0UG60-C2iNSP151..5D..(AGT,GEN)..V202201-202211

BLACK/RED,TRIM2#,CRS TAG:TYPE A

main71077-0UG60-C3iNSP151..5D..AGT..G;NSP151..5D..CVT..BZ..(G,V)202201-202211

BLACK/LT.GRAY,TRIM2#,CRS TAG:TYPE A

main71077-0UG61-C2iNSP151..5D..6F..V202211-202501

BLACK/RED,TRIM2#,CRS TAG:TYPE B

main71077-0UG61-C3iNSP151..5D..6F..AGT..G;NSP151..5D..CVT..BZ..(G,V)202211-202501

BLACK/LT.GRAY,TRIM2#,CRS TAG:TYPE B

main71077-0UG00-C1iNSP151..4D..CVT..BZ..G202201-202211

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#,CRS TAG:TYPE A

main71077-0UG01-C1supersedes 71077-0DW81-C1iNSP151..4D..CVT..BZ..G202211-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#,CRS TAG:TYPE B

main71077-0UG10-C2iNSP151..5D..CVT..BZ..G202201-202211

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#,CRS TAG:TYPE A

main71077-0UG11-C2iNSP151..5D..CVT..BZ..G202211-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#,CRS TAG:TYPE B

main71077-0UG50-C2iNSP151..5D..AGT..G202201-202211

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#,CRS TAG:TYPE A

main71077-0UG51-C2supersedes 71077-0UG61-C3iNSP151..5D..CVT..AGT..G202211

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#,CRS TAG:TYPE B

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0DB21-C1iNSP151..CVT..BZ..D201911-202201

BLACK,TRIM2#

main71078-0DE31-C3supersedes 71078-0DE41-C1iNSP151..4D..6F..BZ..G201911

PARAGUAY SPEC,BLACK,TRIM2#

main71078-0DE41-C1iNSP151..4D..CVT..(AGT,BZ)..(G,V)201911-202201

BLACK,TRIM2#

main71078-0DE41-C3iNSP151..4D..GEN..V;NSP151..4D..6F..AGT..G;NSP151..4D..CVT..(AGT,BZ)..(G,V)202201-202211

BLACK,TRIM2#,CRS TAG:TYPE A

main71078-0DE42-C3iNSP151..4D..GEN..V;NSP151..4D..6F..AGT..G;NSP151..4D..CVT..(AGT,BZ)..(G,V)202211-202501

BLACK,TRIM2#,CRS TAG:TYPE B

main71078-0DE51-C5iNSP151..5D..6F..BZ..R201911-202104

BLACK,TRIM2#

main71078-0DE61-C8supersedes 71078-0DE51-C5iNSP151..AGT..V201911-202201

BLACK/RED,TRIM2#

main71078-0DE61-C9supersedes 71078-0DE61-C9iNSP151..5D..BZ..V;NSP151..5D..CVT..AGT..G201911-202201

BLACK/LT. GRAY,TRIM2#

main71078-0DK00-C1iNSP151..4D..(BZ,GEN)..R202201-202211

BLACK,TRIM2#,CRS TAG:TYPE A

main71078-0DK01-C1iNSP151..4D..(BZ,GEN)..R202211-202501

BLACK,TRIM2#,CRS TAG:TYPE B

main71078-0DR70-C1iNSP151..4D..AGT..G202201-202211

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#,CRS TAG:TYPE A

main71078-0DR71-C1iNSP151..4D..AGT..G202211-202501

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#,CRS TAG:TYPE B

main71078-0DR90-C1iNSP151..4D..CVT..BZ..D202201-202206

BLACK,TRIM2#,CRS TAG:TYPE A

main71078-0DS20-C2iNSP151..5D..(AGT,GEN)..V202201-202211

BLACK/RED,TRIM2#,CRS TAG:TYPE A

main71078-0DS20-C3iNSP151..5D..AGT..G;NSP151..5D..CVT..BZ..(G,V)202201-202211

BLACK/LT.GRAY,TRIM2#,CRS TAG:TYPE A

main71078-0DS21-C2iNSP151..5D..6F..V202211-202501

BLACK/RED,TRIM2#,CRS TAG:TYPE B

main71078-0DS21-C3iNSP151..5D..6F..AGT..G;NSP151..5D..CVT..BZ..(G,V)202211-202501

BLACK/LT.GRAY,TRIM2#,CRS TAG:TYPE B

main71078-0DR80-C1iNSP151..4D..CVT..BZ..G202201-202211

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#,CRS TAG:TYPE A

main71078-0DR81-C1supersedes 71078-0DE21-C1iNSP151..4D..CVT..BZ..G202211-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#,CRS TAG:TYPE B

main71078-0DS00-C2iNSP151..5D..AGT..G202201-202211

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#,CRS TAG:TYPE A

main71078-0DS01-C2supersedes 71078-0DS21-C3iNSP151..5D..6F..AGT..G202211-202501

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#,CRS TAG:TYPE B

main71078-0DS10-C2iNSP151..5D..CVT..BZ..G202201-202211

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#,CRS TAG:TYPE A

main71078-0DS11-C2iNSP151..5D..CVT..BZ..G202211-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#,CRS TAG:TYPE B

71480ACLIP (FOR REAR SEATBACK)

main90467-05161-C9×7iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)202201-202501

BLACK

main90467-08186-C3×2iNSP151..4D..CVT..BZ..D202201-202206

BLACK

71611PAD, REAR SEAT CUSHION

main71503-0D570iNSP151..4D..6F..BZ..R201911-202104

main71503-0D590iNSP15#..5D..6F..BZ..R201911-202104

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D880iNSP151..4D..CVT..GEN..(D,G);NSP151..4D..6F..(BZ,GEN)..(D,G)201911

main71651-0D890iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V202201

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0D470iNSP151..4D..6F..D;NSP151..4D..CVT..GEN..D201911

main71652-0D480supersedes 71652-0D470iNSP151..4D..CVT..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main71652-0D490iNSP151..5D..6F..BZ..R201911-202104

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-21×3iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

W(LOCK),PARAGUAY SPEC&SPORT PACKAGE(LATIN AMERICA),BLACK,TRIM2#

sub71930-02370

main71931-47010-C8×3iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

W/O(LOCK),BLACK,TRIM2#

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-0DP00-C1×2supersedes 71940-0DP10-C0iNSP151..4D..6F..BZ..G201911

PARAGUAY SPEC,BLACK,TRIM2#

main71940-0DP10-C0×2iNSP151..4D..CVT..(AGT,BZ)..(G,V)201911-202201

BLACK,TRIM2#

main71940-0DP20-C1×2iNSP151..5D..CVT..R;NSP151..5D..6F..(AGT,GEN)..(G,R)201911-202201

PARAGUAY SPEC,BLACK,TRIM2#

main71940-0DP30-C0×2iNSP151..5D..BZ..V;NSP151..5D..CVT..AGT..G201911-202201

PARAGUAY SPEC&SPORT PACKAGE(LATIN AMERICA),BLACK/LT.GRAY,TRIM25

main71940-0DP30-C1×2supersedes 71940-0DP30-C1iNSP151..5D..6F..V202201-202501

BLACK/RED,TRIM2#

main71940-0DP60-C0×2iNSP151..4D..6F..D;NSP151..4D..CVT..GEN..D201911

BLACK,TRIM2#

main71940-0DP70-C0×2iNSP150..D;NSP151..5D..GEN..D201911

BLACK,TRIM2#

main71940-0DU90-C1×2iNSP151..4D..AGT..G202201-202501

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71940-0DV00-C1×2supersedes 71940-0DP30-C0iNSP151..5D..CVT..AGT..G202201

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71940-0DV10-C1×2iNSP151..4D..CVT..BZ..D202201-202206

BLACK,TRIM2#

main71940-0DV20-C1×2iNSP151..5D..BZ..D202201-202206

BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0D550-C0iNSP151..CVT..BZ..D201911-202201

BLACK,TRIM2#

main71960-0D560-C0iNSP150..D;NSP151..5D..GEN..D201911

BLACK,TRIM2#

main71960-0DB10-C2iNSP151..CVT..R;NSP151..6F..AGT..(G,R);NSP151..5D..6F..GEN..G201911-202201

PARAGUAY SPEC,BLACK,TRIM2#

main71960-0DB20-C0iNSP151..5D..BZ..V;NSP151..5D..CVT..AGT..G;NSP151..4D..CVT..(AGT,BZ)..(G,V)201911-202201

PARAGUAY SPEC&SPORT PACKAGE(LATIN AMERICA),BLACK/LT.GRAY,TRIM25

main71960-0DB20-C1supersedes 71960-0DB20-C1iNSP151..5D..CVT..(AGT,GEN)..V202201

BLACK/RED,TRIM2#

main71960-0DB30-C0iNSP150..6F..R201911-202104

BLACK,TRIM2#

main71960-0DF90-C1iNSP151..4D..R202201-202501

BLACK,TRIM2#

main71960-0DG00-C1supersedes 71960-0DB20-C0iNSP151..5D..6F..GEN..R;NSP151..5D..(AGT,BZ)..R202201-202501

BLACK,TRIM2#

main71960-0DG10-C1iNSP151..4D..CVT..BZ..D202201-202206

BLACK,TRIM2#

main71960-0DG20-C1iNSP151..5D..BZ..D202201-202206

BLACK,TRIM2#

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-0D080iNSP15#..6F..BZ..R201911-202104

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-0D080iNSP151..CVT..BZ..D202201-202206

72641PIN, REAR SEATBACK LOCK

main72641-0D120×2iNSP151..CVT..BZ..D202201-202206

72651DROD, REAR SEATBACK LOCK, RH

main72651-0D070-C0iNSP151..4D201911-202001

BLACK,TRIM2#

main72651-0D100-C0iNSP15#..5D201911-202001

BLACK,TRIM2#

main72651-0D150-C0iNSP151..4D..6F..BZ..R202001-202104

BLACK,TRIM2#

main72651-0D160-C0iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)202201-202501

BLACK,TRIM2#

72651EROD, REAR SEATBACK LOCK, LH

main72652-0D050-C0iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202201-202501

BLACK,TRIM2#

main72652-0D070-C0iNSP151..4D201911-202001

BLACK,TRIM2#

main72652-0D100-C0iNSP15#..5D201911-202001

BLACK,TRIM2#

main72652-0D150-C0iNSP151..5D..BZ..D202201-202206

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iNSP15#..6F..BZ..R201911-202104

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0D180-C0supersedes 72830-0D190-C0iNSP151..4D..6F..BZ..G201911

PARAGUAY SPEC,BLACK,TRIM2#

main72830-0D190-C0iNSP151..4D..GEN..V;NSP151..4D..6F..AGT..G;NSP151..4D..CVT..(AGT,BZ)..(G,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#

main72830-0D200-C0iNSP151..5D..CVT..R;NSP151..5D..6F..(AGT,GEN)..(G,R)201911-202201

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main72830-0D210-C0supersedes 72830-0D210-C0iNSP151..5D..V;NSP151..5D..CVT..AGT..G201911-202201

BLACK,TRIM2#

main72830-0D220-C1iNSP151..4D..AGT..G202201-202501

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main72830-0D230-C1iNSP151..5D..6F..AGT..G202201-202501

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

72831BPLATE, REAR SEAT CENTER ARMREST, NO.1

main72831-47010iNSP151..5D..6F..BZ..R201911-202104

XL-PLUS PACKAGE(BRAZIL)

72868BCOVER, CENTER ARMREST HINGE

main72868-0D070-C0iNSP151..4D..6F..BZ..R201911-202104

XL-PLUS PACKAGE(BRAZIL),BLACK,TRIM2#

73528CARPET, REAR SEAT SUB FLOOR, REAR

main73528-0D080-C0iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#

73707BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER

main73705-0D500iNSP151..AGT,BZ;NSP151..GEN..G;NSP151..4D..GEN..D201911-202002

main73705-0D501iNSP151..4D..CVT..BZ..D202201-202206

main73705-0D520iNSP150;NSP151..5D..D201911-202002

main73705-0D521iNSP150..CVT;NSP150..6F..D;NSP151..5D..D202003

main73705-0D640iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V202201

main73705-0D650iNSP151..5D..6F..GEN..R;NSP151..5D..(AGT,BZ)..R202201-202501

9010908163

main90109-08163

9011910818

main90119-10818

9020610016

main90206-10016

9038610033

main90386-10033

9155310818

main91553-10818

9164580825

main91645-80825

31 parts on this diagram · 6 diagrams in section
