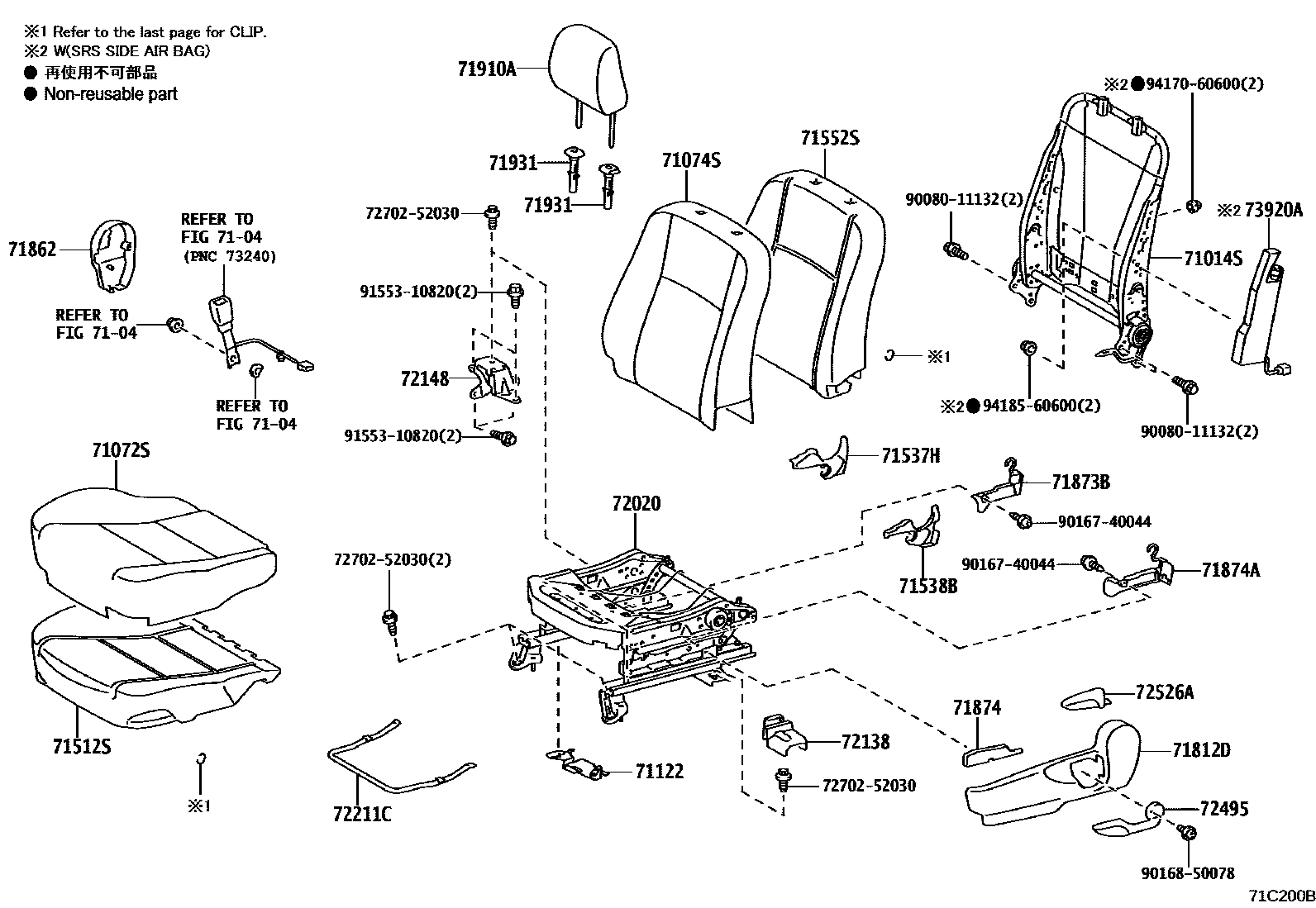

FRONT SEAT & SEAT TRACK

0001 1LH SEAT 0002 1LH SEAT 0003 1RH SEAT 0004 1RH SEAT 0005 1CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-0D310iNSP151..6F..AGT..(G,R)201911-202010

XLS-LO PACKAGE(ARGENTINA)

main71014-0D320iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0DL50-C0iNSP150..D;NSP151..6F..D;NSP151..CVT..GEN..D201911

BLACK,TRIM2#

main71072-0DX40-C0iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202104

BLACK,TRIM2#

main71072-0DX50-C1supersedes 71072-0DX40-C0iNSP151..5D..6F..BZ..R201911-202104

XL-PLUS PACKAGE(BRAZIL),BLACK,TRIM2#

main71072-0DX60-C0iNSP151..4D..BZ..G201911-202108

PARAGUAY SPEC&SPORT PACKAGE(LATIN AMERICA),BLACK,TRIM25

main71072-0DX61-C0iNSP151..4D..CVT..BZ..G202108-202201

BLACK/LT. GRAY,TRIM25

main71072-0DX70-C0iNSP151..BZ..V;NSP151..CVT..AGT..G201911-202108

BLACK,TRIM2#

main71072-0DX70-C1iNSP151..AGT..V201911-202108

BLACK,TRIM2#

main71072-0DX71-C0iNSP151..BZ..V;NSP151..CVT..AGT..G202108-202201

BLACK/LT. GRAY,TRIM2#

main71072-0DX71-C1iNSP151..5D..6F..GEN..G202108-202201

BLACK/RED,TRIM2#

main71072-0DX71-C5iNSP151..5D..6F..V202201-202501

BLACK/RED,TRIM2#

main71072-0DX71-C6iNSP151..4D..AGT..G;NSP151..4D..GEN..V;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G202201-202501

BLACK/LT. GRAY,TRIM2#

main71072-0UL10-C0iNSP151..6F..AGT..(G,R)202010-202201

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71072-0UL20-C1supersedes 71072-0DX71-C6iNSP151..4D..GEN..R;NSP151..(AGT,BZ)..R;NSP151..5D..6F..GEN..R202201-202501

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71072-0UL30-C0iNSP151..CVT..BZ..D202201-202206

BLACK,TRIM2#

main71072-0DX70-C2iNSP151..5D..GEN..G201912-202004

SPORT PACKAGE(LATIN AMERICA),BLACK(SPORT),TRIM25

main71072-0UL40-C1iNSP151..BZ..R202201-202501

PARAGUAY SPEC,BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0DG80-C0iNSP150..D;NSP151..6F..D;NSP151..CVT..GEN..D201911

BLACK,TRIM2#

main71074-0DT60-C0iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202104

BLACK,TRIM2#

main71074-0DT70-C1supersedes 71074-0DT60-C0iNSP151..6F..BZ..G201911

PARAGUAY SPEC,BLACK,TRIM2#

main71074-0DT81-C0iNSP151..5D..6F..BZ..G201911

BLACK/LT. GRAY,TRIM25

main71074-0DT91-C0iNSP151..BZ..V;NSP151..CVT..AGT..G201911-202201

BLACK/LT.GRAY,TRIM2#

main71074-0DT91-C1iNSP151..AGT..V201911-202201

BLACK/RED,TRIM2#

main71074-0DT91-C3iNSP151..5D..6F..V202201-202501

BLACK/RED,TRIM2#

main71074-0DT91-C4iNSP151..4D..AGT..G;NSP151..4D..GEN..V;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G202201-202501

BLACK/LT.GRAY,TRIM2#

main71074-0UN30-C0iNSP151..6F..AGT..(G,R)202010-202201

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71074-0UN40-C1supersedes 71074-0DT91-C4iNSP151..5D..CVT..GEN..R202201

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71074-0UN50-C0iNSP151..CVT..BZ..D202201-202206

BLACK,TRIM2#

main71074-0DT91-C2iNSP151..5D..GEN..G201912-202004

SPORT PACKAGE(LATIN AMERICA),BLACK/RED(SPORT),TRIM25

main71074-0UN60-C1iNSP151..BZ..R202201-202501

PARAGUAY SPEC,BLACK,TRIM2#

71122BRACKET, FRONT SEAT CUSHION, LH

main71122-0D030iNSP151..5D..6F..GEN..G;NSP151..CVT..BZ..(D,G,R)201911-202201

main71122-0D180iNSP151..V;NSP151..CVT..AGT..G201911-202201

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0D750iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-0D390-C0iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-0D320-C0iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0D710iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911

main71552-0D720iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0D410-C0iNSP151..6F..AGT..(G,R)201911-202010

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71812-0D460-C0iNSP151..6F..AGT..(G,R)202010-202201

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0D230-C0iNSP151..6F..AGT..(G,R)202010-202201

BLACK,TRIM2#

main71862-0D310-C0iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-0D400-C0iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

BLACK,TRIM2#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0D440-C0iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0D430-C0iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0DJ90-C1×2iNSP151..CVT..R;NSP151..6F..AGT..(G,R);NSP151..5D..6F..GEN..G201911-202201

PARAGUAY SPEC,BLACK,TRIM2#

main71910-0DK00-C0×2iNSP151..5D..6F..BZ..G201911

PARAGUAY SPEC&SPORT PACKAGE(LATIN AMERICA),BLACK/LT.GRAY,TRIM25

main71910-0DK00-C1×2supersedes 71910-0DK00-C1iNSP151..AGT..V201911-202201

BLACK/RED,TRIM2#

main71910-0DL20-C0×2iNSP151..CVT..BZ..D201911-202201

BLACK,TRIM2#

main71910-0DN90-C1×2supersedes 71910-0DK00-C0iNSP151..5D..CVT..AGT..G202201

XLS-LO PACKAGE(ARGENTINA),BLACK,TRIM2#

main71910-0DP00-C1×2iNSP151..CVT..BZ..D202201-202206

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-21×2iNSP15#..6F..BZ..R201911-202104

W(LOCK),BLACK,TRIM2#

sub71930-02370

main71931-47010-C8×2iNSP151..6F..AGT..(G,R)201911-202010

W/O(LOCK),BLACK,TRIM2#

sub71931-42020

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0D741iNSP15#..6F..BZ..R201911-202104

72138COVER, SEAT TRACK, OUTER LH

main72138-0D180-C0iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

BLACK,TRIM2#

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-0D180iNSP15#201911-202002

main72148-0D181iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-0D240×2iNSP151..CVT..BZ..D202201-202206

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0D090-C0iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0D320-C0iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0D100iNSP151..6F..AGT..(G,R)202010-202201

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

9008011132

main90080-11132

9016740044

main90167-40044

9016850078

main90168-50078

9155310820

main91553-10820

9417060600

main94170-60600

9418560600

main94185-60600

30 parts on this diagram · 5 diagrams in section
