Toyota SIENTA (ASIA) 11A — FRONT DOOR LOCK & HANDLE

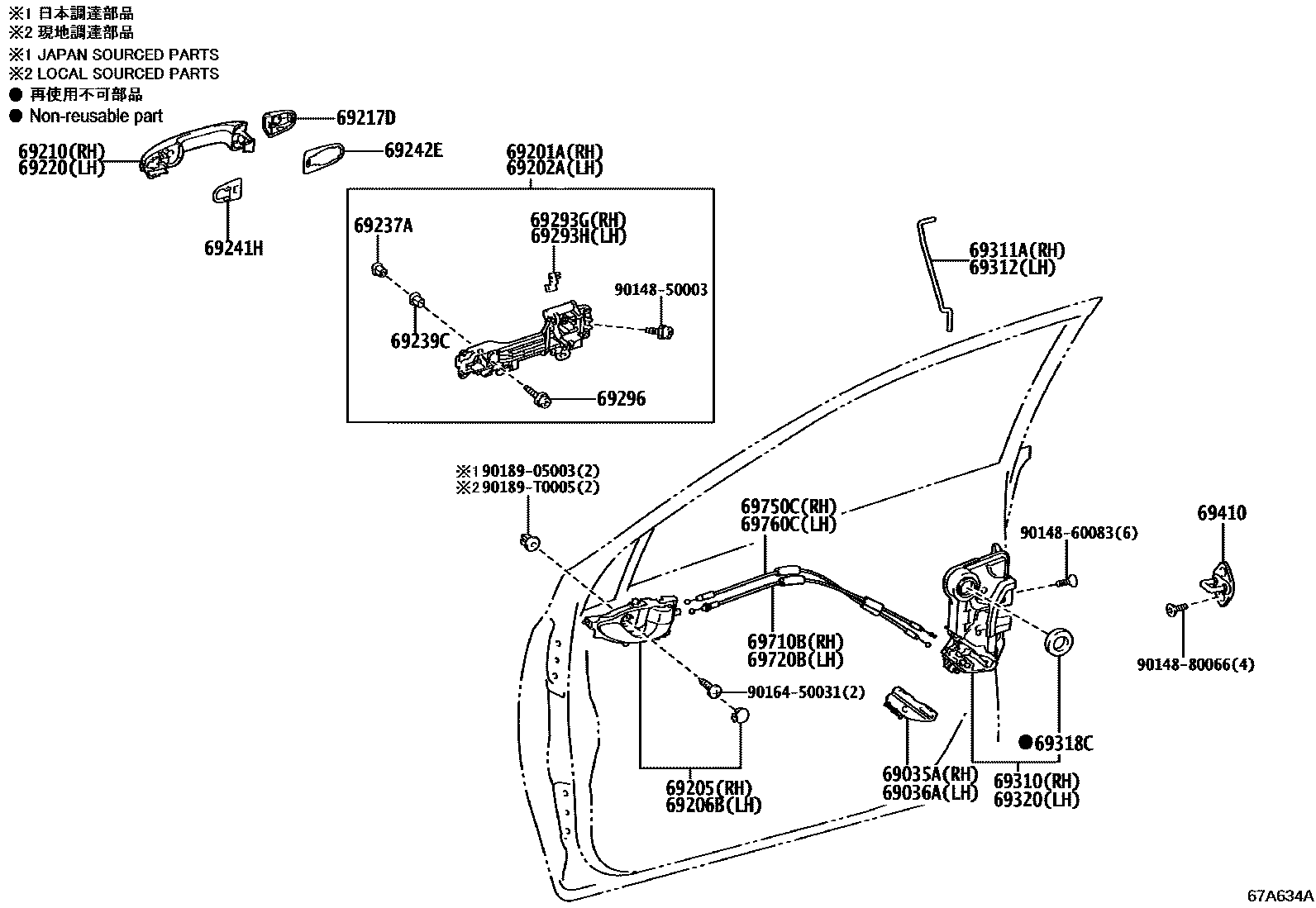

Parts diagram

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

69237ANUT, FRONT DOOR HANDLE

69239CBUSH, FRONT DOOR HANDLE

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

69296SCREW, DOOR INSIDE HANDLE

69310LOCK ASSY, FRONT DOOR, RH

69311AROD, FRONT DOOR LOCK OPEN, RH

69312ROD, FRONT DOOR LOCK OPEN, LH

69318CSEAL, DOOR LOCK WIRING HARNESS

69320LOCK ASSY, FRONT DOOR, LH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

9014850003

9014860083

9014880066

9016450031

9018905003

90189T0005

32 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota SIENTA (ASIA) 11A

This section contains 32 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SIENTA (ASIA) 11A. Key components include: COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
