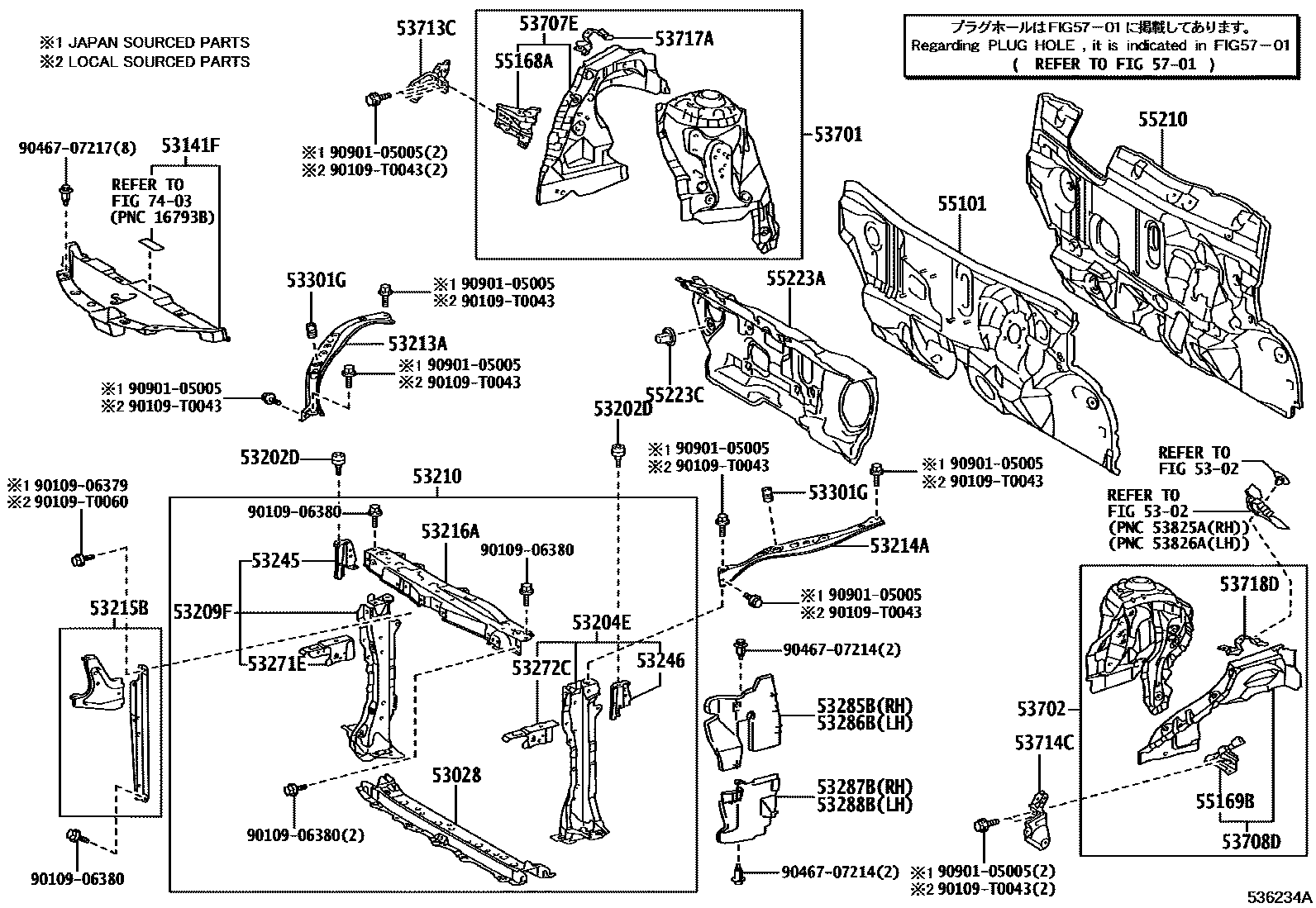

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5302

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-0D120iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

53141FCOVER, RADIATOR

main53141-0D190iNSP151..5D..CVT..AGT201911-202501

main53289-0D250iNSP150..CVT;NSP15#..6F..BZ..(D,G)201912-202501

53202DCUSHION, RADIATOR SUPPORT

main53119-12150×2iNSP15#..6F..BZ..R201911-202501

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-0D901iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

main53204-0D990iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911-202201

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-0D901iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202501

main53209-0D902iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911-202201

53210SUPPORT ASSY, RADIATOR

main53210-0D926iNSP151..CVT..BZ..D201911-202501

main53210-0D927iNSP151..CVT..(AGT,BZ)201911-202201

53213ASUPPORT, RADIATOR, UPPER RH

main53213-0D210iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0D210iNSP15#..6F..BZ..R201911-202501

53215BSUPPORT, HOOD LOCK

main53215-0D901iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

53216ASUPPORT, RADIATOR, UPPER

main53216-0D190iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

53245BRACKET, HEADLAMP, RH

main53245-0D100iNSP15#..6F..BZ..R201911-202501

53246BRACKET, HEADLAMP, LH

main53246-0D100iNSP15#..6F..BZ..R201911-202501

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-0D100iNSP15#..6F..BZ..R201911-202501

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-0D100iNSP15#..6F..BZ..R201911-202501

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0D300iNSP15#..6F..BZ..R201911-202201

main53285-0D430iNSP151..CVT..(AGT,BZ)201911-202201

main53285-YP080supersedes 53285-0D300iNSP151..CVT..BZ..D202201-202206

MLM PACKAGE

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-0D300iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202201

main53286-0D430iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911-202201

main53286-YP080supersedes 53286-0D300iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

MLM PACKAGE

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-0D090iNSP15#..6F..BZ..R201911-202201

main53287-0D300iNSP151..CVT..(AGT,BZ)201911-202201

main53287-YP080supersedes 53287-0D090iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

MLM PACKAGE

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-0D080iNSP15#..6F..BZ..R201911-202201

main53288-0D300iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911-202201

main53288-YP080supersedes 53288-0D080iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

MLM PACKAGE

53301GCUSHION, HOOD BUMPER

main90541-15111×2iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0D340iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0D330iNSP15#..6F..BZ..R201911-202501

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-0D050iNSP15#..6F..BZ..R201911-202501

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-0D050iNSP15#..6F..BZ..R201911-202501

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0D210iNSP15#..6F..BZ..R201911-202501

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0D210iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

53717APLATE, FENDER APRON

main53717-0D220iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

53718DGUSSET, FENDER APRON, LH

main53718-0D190iNSP15#..6F..BZ..R201911-202201

55101PANEL SUB-ASSY, DASH

main55101-0D800iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

main55101-0D810iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911-202501

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-0D090iNSP15#..6F..BZ..R201911-202501

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-0D090iNSP151..CVT..BZ..D201911-202501

55210INSULATOR ASSY, DASH PANEL

main55210-0D830iNSP15#..6F..BZ..R201911-202501

55223AINSULATOR, DASH PANEL, OUTER

main55223-0D430iNSP15#..6F..BZ..R201911-202501

55223CCLIP

main90467-06197iNSP15#..6F..BZ..R201911-202501

(J)

main90467-T0032iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

(L)

5701

7403

9010906379

main90109-06379

9010906380

main90109-06380

90109T0043

main90109-T0043

90109T0060

main90109-T0060

9046707214

main90467-07214

9046707217

main90467-07217

9090105005

main90901-05005

43 parts on this diagram · 2 diagrams in section
