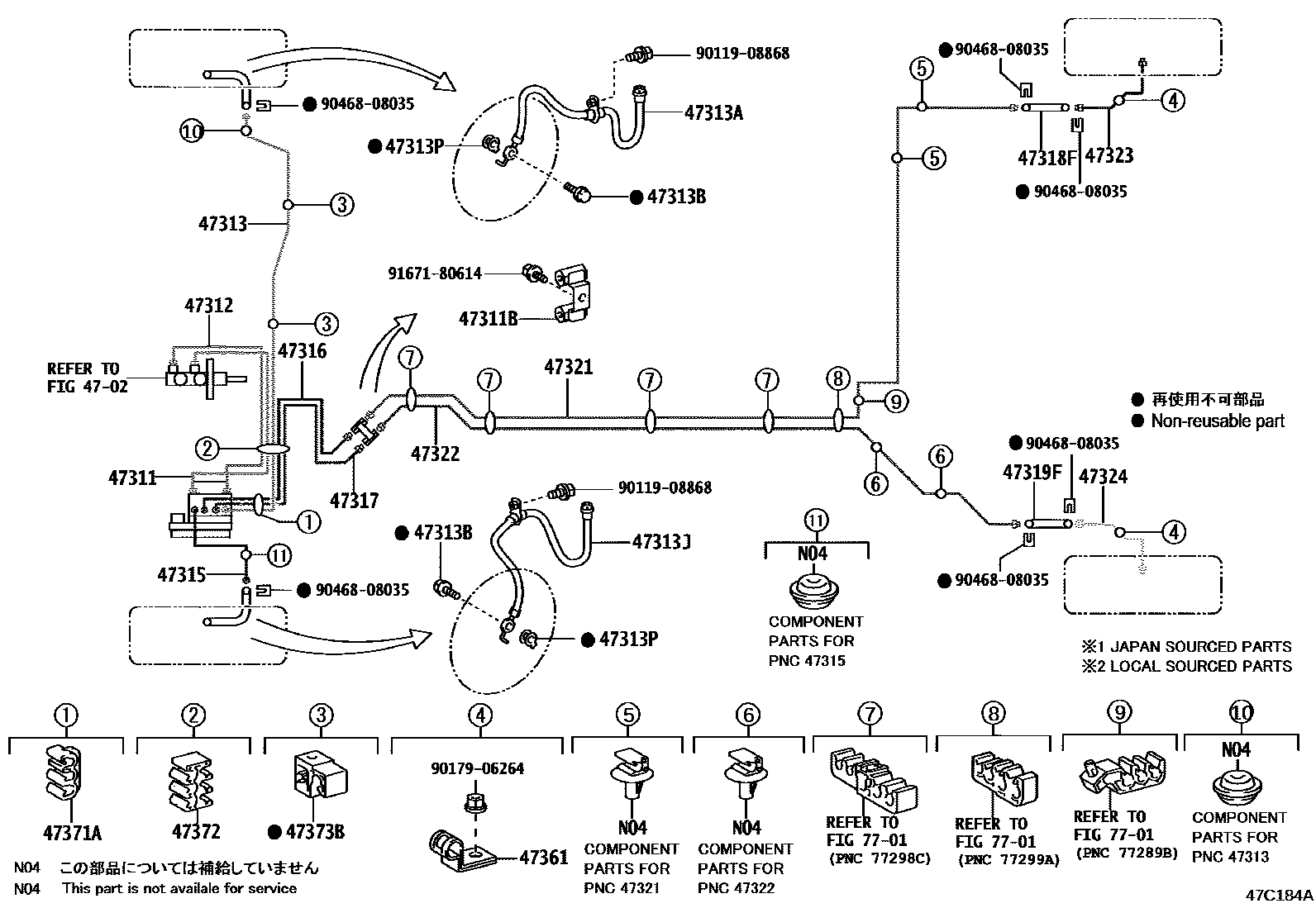

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE ACTUATOR 0003 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0DA60iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911

main47311-0DA70iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

47312TUBE, FRONT BRAKE, NO.2

main47312-0D890iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911

main47312-0DA00iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

47313TUBE, FRONT BRAKE, NO.3

main47313-0D820iNSP15#..6F..BZ..R201911-202104

main47313-0D840iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2081iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

main90947-T2119iNSP15#..6F..BZ..R201911-202104

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNSP151..CVT..BZ..D202201-202206

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2082iNSP151..CVT..BZ..D202201-202206

main90947-T2120iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

47315TUBE, FRONT BRAKE, NO.5

main47315-0D800iNSP15#..6F..BZ..R201911-202104

main47315-0D820iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

47316TUBE, FRONT BRAKE, NO.6

main47316-0D710iNSP15#..6F..BZ..R201911-202104

main47316-0D730iNSP151..CVT..(AGT,BZ)201911-202201

47317TUBE, FRONT BRAKE, NO.7

main47317-0D710iNSP15#..6F..BZ..R201911-202104

main47317-0D730iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2083iNSP15#..6F..BZ..R201911-202104

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2084iNSP15#..6F..BZ..R201911-202104

47321TUBE, REAR BRAKE, NO.1

main47321-0D460iNSP15#..6F..BZ..R201911-202104

47322TUBE, REAR BRAKE, NO.2

main47322-0D460iNSP15#..6F..BZ..R201911-202104

main47322-0D531iNSP151..CVT..BZ..(G,R,V)202305-202501

47323TUBE, REAR BRAKE, NO.3

main47323-0D370iNSP15#..6F..BZ..R201911-202104

47324TUBE, REAR BRAKE, NO.4

main47324-0D370iNSP15#..6F..BZ..R201911-202104

47361CLAMP, TUBE

main90461-10843×2iNSP15#..6F..BZ..R201911-202104

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iNSP151..CVT..(AGT,BZ)201911-202201

main90464-00868iNSP15#..6F..BZ..R201911-202104

47372CLAMP, BRAKE TUBE, NO.2

main90464-00925iNSP151..CVT..BZ..D202201-202206

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D18×2iNSP15#..6F..BZ..R201911-202104

7701

9011908868

main90119-08868

9017906264

main90179-06264

9046808035

main90468-08035

9167180614

main91671-80614

27 parts on this diagram · 3 diagrams in section
