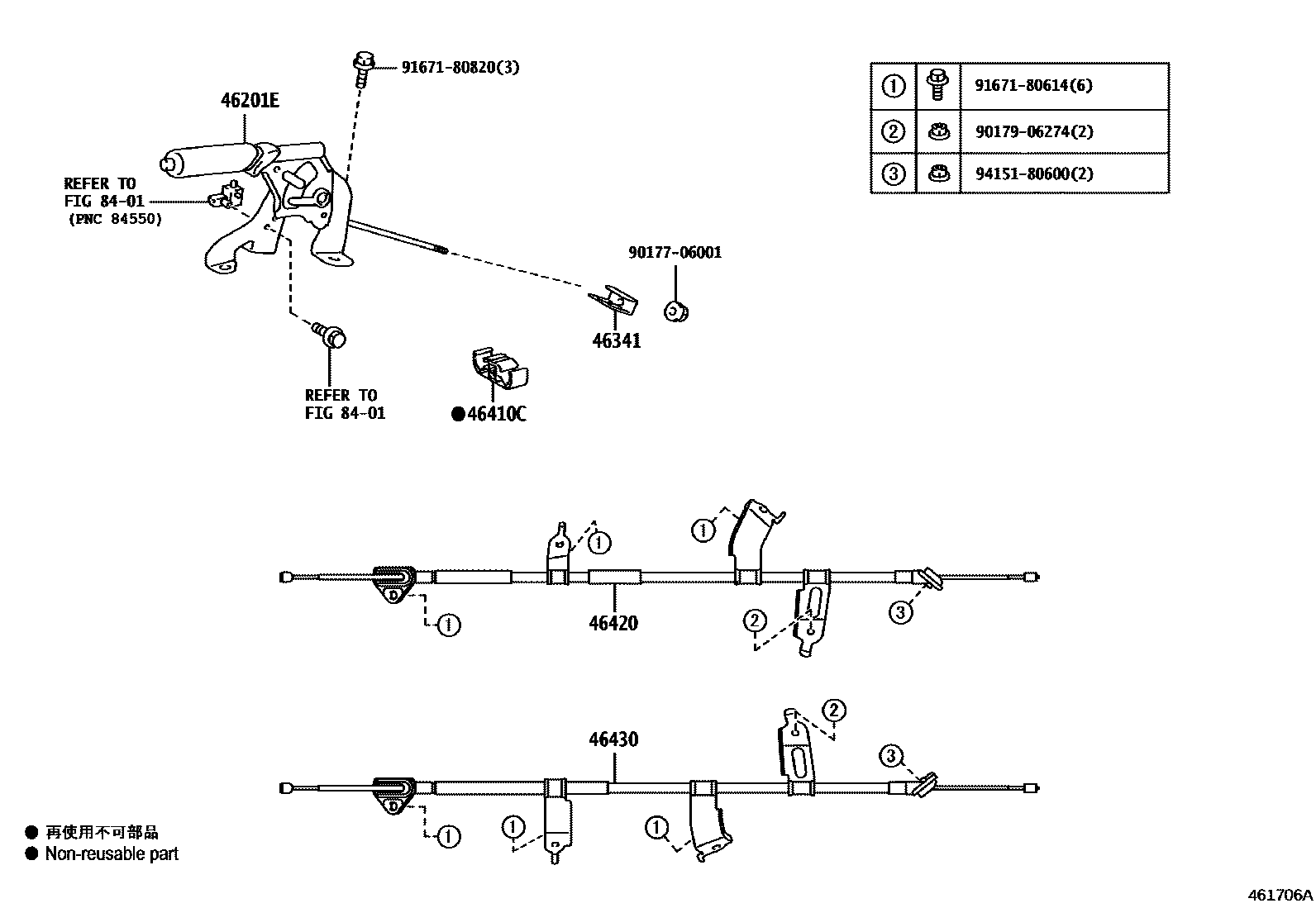

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D510-C0iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#

main46201-0D520-C0iNSP151..6F..V;NSP151..4D..AGT..G;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..V202201-202501

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-0D050iNSP15#..6F..BZ..R201911-202104

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D020iNSP15#..6F..BZ..R201911-202104

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D380iNSP15#..6F..BZ..R201911-202104

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D350iNSP15#..6F..BZ..R201911-202104

8401

9017706001

main90177-06001

9017906274

main90179-06274

9167180614

main91671-80614

9167180820

main91671-80820

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
