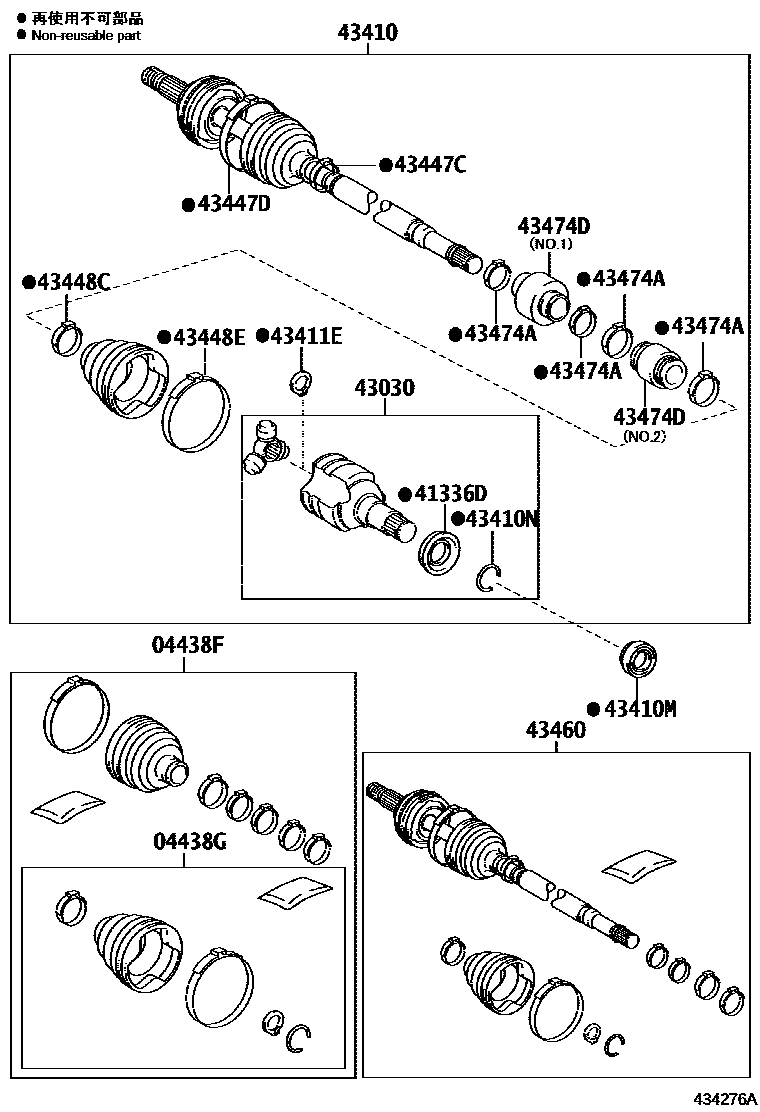

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D500iNSP151..CVT..BZ..D202201-202206

main04427-0D510iNSP151..6F..(R,V);NSP151..6F..AGT..G202201-202501

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D330iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911

main04437-0D340iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0D140iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911

main41336-0D150iNSP151..6F..(R,V);NSP151..6F..AGT..G202201-202501

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-0D110iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

main43040-0D120iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202201

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D750iNSP151..CVT..(AGT,BZ)201911-202201

main43410-0D760iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202201

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34050iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)201911

main90311-35065iNSP15#..6F..BZ..R201911-202102

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-02300iNSP15#..6F..BZ..R201911-202104

main43425-02350iNSP151..CVT..BZ..D202201-202206

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D510iNSP15#..6F..BZ..R201911-202104

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D870iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D860iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DC90iNSP15#..6F..BZ..R201911-202104

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DC70iNSP15#..6F..BZ..R201911-202104

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09Z70iNSP151..CVT..BZ..D202201-202206

main43460-09Z80iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-0DC80×4iNSP151..CVT..BZ..D202201-202206

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D430iNSP15#..6F..BZ..R201911-202104

NO.1:REFER ILLUST.

main43474-0D470iNSP151..CVT..BZ..D202201-202206

NO.2:REFER ILLUST.

main43474-0D530iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911

NO.2:REFER ILLUST.

15 parts on this diagram · 2 diagrams in section
