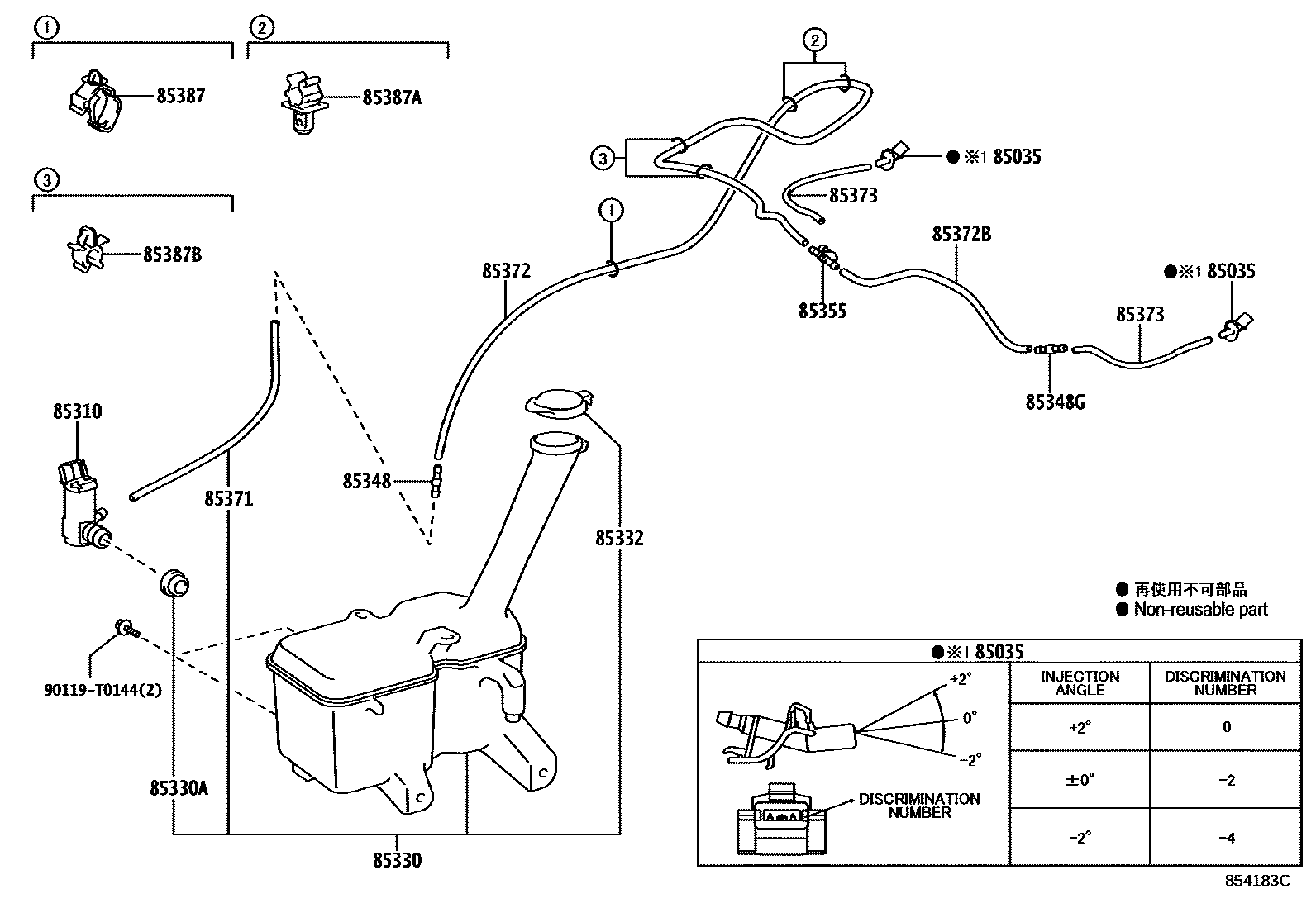

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-20230×2iNSP151201908

ANGLE 0

main85381-20300×2iNSP151201908

ANGLE +2

main85381-20310×2iNSP151201908

ANGLE -2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K011iNSP151201908

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D410iNSP151201908

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50013iNSP151201908

85332CAP, WINDSHIELD WASHER JAR

main85316-0D410iNSP151201908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNSP151201908

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNSP151201908

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNSP151201908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46081iNSP151201908

L=300

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46086iNSP151201908

L=205

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46086iNSP151201908

L=205

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46089×2iNSP151201908

L=180

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0K100iNSP151202008

main82711-3F230iNSP151201908-202008

85387ACLAMP, WASHER, NO.2

main85371-52110×2iNSP151201908

85387BCLAMP, WASHER, NO.3

main90469-07011×2iNSP151201908

(J)

main90469-T0005×2iNSP151201908

(L)

90119T0144

main90119-T0144

16 parts on this diagram · 1 diagram in section
