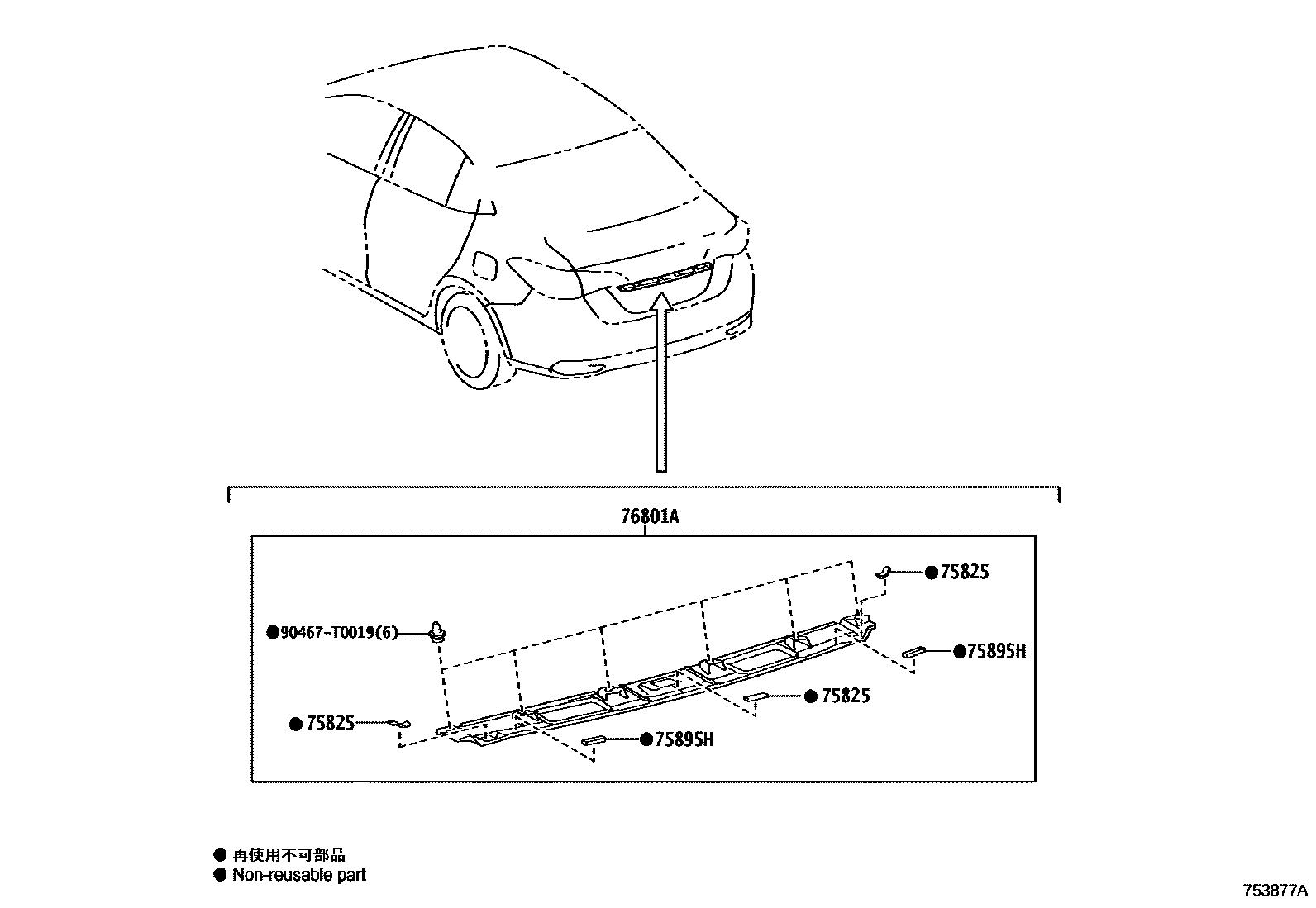

REAR MOULDING

75825PAD, LUGGAGE COMPARTMENT DOOR MOULDING

main75825-0D080×3iNSP151201908

75895HTAPE, MOULDING, NO.1

main75895-0D210×2iNSP151201908

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-0DA00iNSP151..D201908

NO PAINT REQ.

main76801-0DA10iNSP151..G,R,V201908

NO PAINT REQ.

90467T0019

main90467-T0019

4 parts on this diagram · 1 diagram in section
