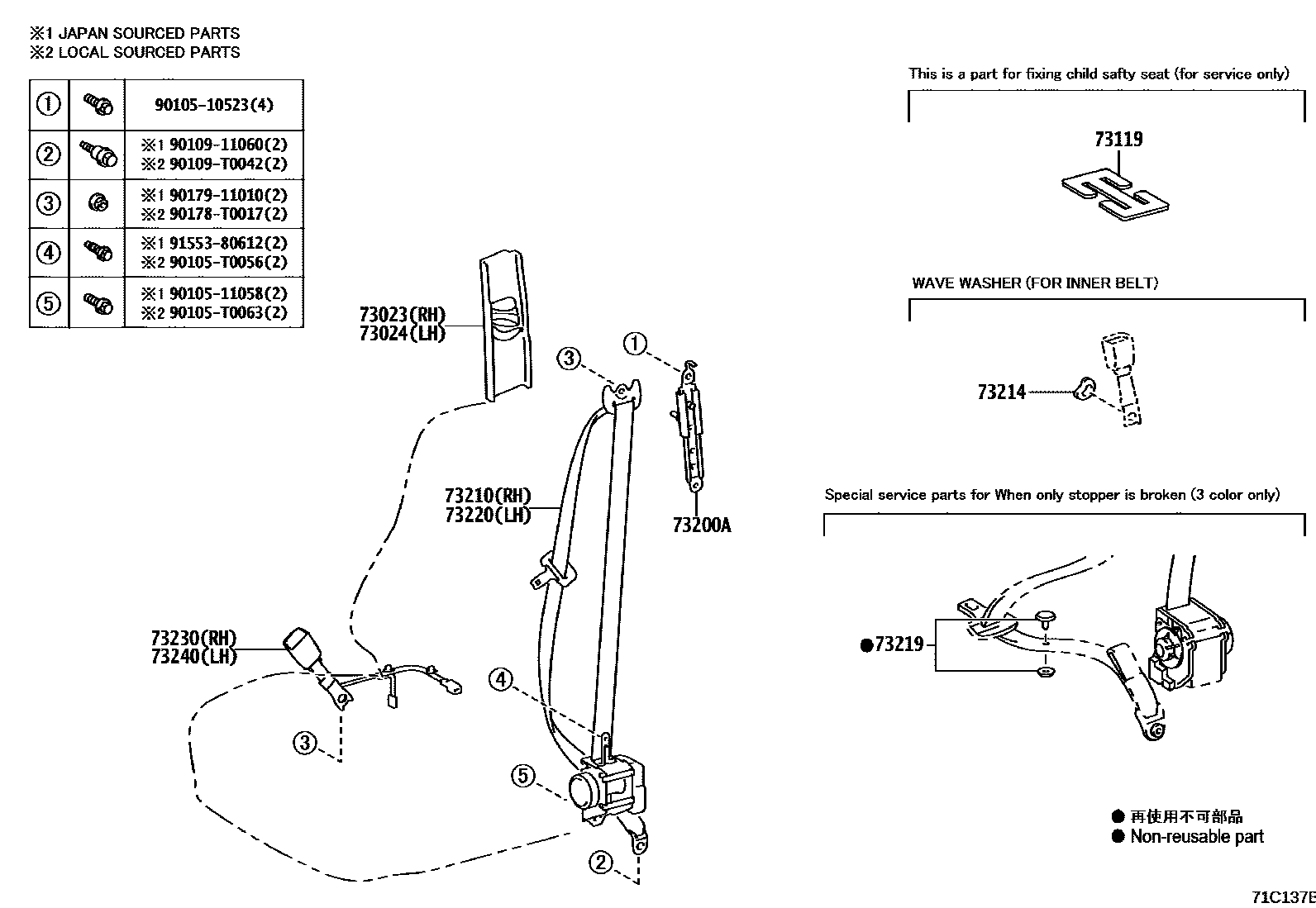

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06080-A3iNSP151201908

IVORY,TRIM0#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06110-A3iNSP151201908

IVORY,TRIM0#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNSP151201908

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140×2iNSP151201908

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D560-A0iNSP151201908

IVORY,TRIM0#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iNSP151201908

73219STOPPER, TONGUE PLATE

main73219-33010iNSP151201908

BLACK

main73219-33020iNSP151201908

GRAY

main73219-33030iNSP151201908

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D550-A0iNSP151201908

IVORY,TRIM0#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D700-A0iNSP151..D,G,R201908

IVORY,TRIM0#

main73230-0D720-A0iNSP151..V201908

IVORY,TRIM0#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D710-A0iNSP151201908

IVORY,TRIM0#

9010510523

main90105-10523

9010511058

main90105-11058

90105T0056

main90105-T0056

90105T0063

main90105-T0063

9010911060

main90109-11060

90109T0042

main90109-T0042

90178T0017

main90178-T0017

9017911010

main90179-11010

9155380612

main91553-80612

19 parts on this diagram · 2 diagrams in section
