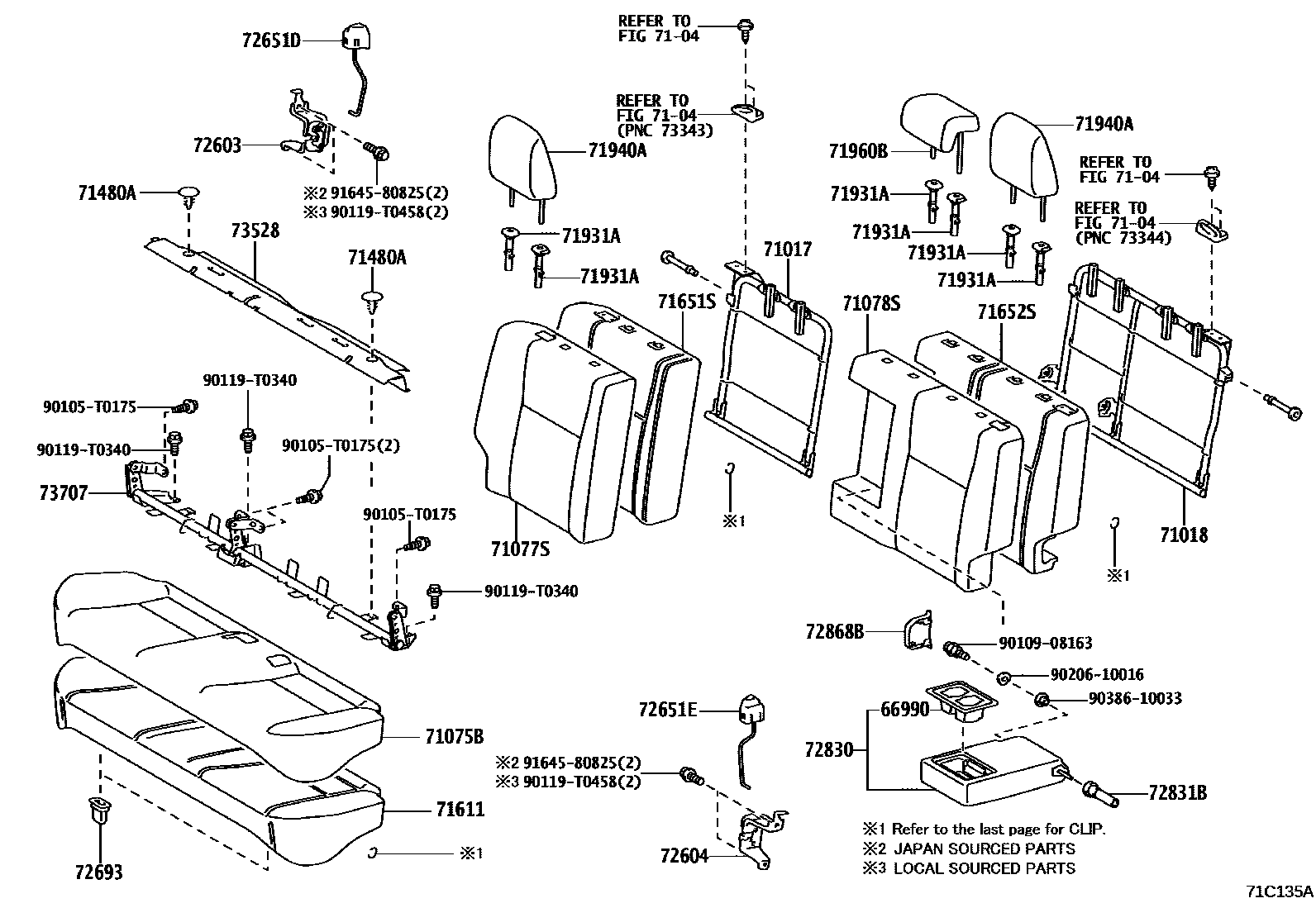

REAR SEAT & SEAT TRACK

0001 1 0002 1CLIP & SEAT EDGE WIRE

66990HOLDER ASSY, CUP

main66991-0D070-A0iNSP151201908

IVORY,TRIM0#

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D670iNSP151201908

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0D400iNSP151201908

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0U210-A0iNSP151..D201908

IVORY,TRIM0#

main71075-0U220-A0iNSP151..G,R201908

IVORY,TRIM0#

main71075-0U230-A0iNSP151..V201908

IVORY,TRIM0#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0DW30-A1iNSP151..G,R201908-202103

IVORY/CAMEL,TRIM0#

main71077-0DW41-A1iNSP151..D201908-202103

IVORY,TRIM0#

main71077-0DW50-A1iNSP151..V201908-202103

IVORY/CAMEL,TRIM0#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0DD81-A1iNSP151..D201908-202103

IVORY,TRIM0#

main71078-0DD90-A1iNSP151..G,R201908-202103

IVORY/CAMEL,TRIM0#

main71078-0DE00-A1iNSP151..V201908-202103

IVORY/CAMEL,TRIM0#

71480ACLIP (FOR REAR SEATBACK)

main90467-08186-C3×2iNSP151201908-202104

BLACK

71611PAD, REAR SEAT CUSHION

main71503-0D690iNSP151201908

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D850iNSP151201908

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0D500iNSP151201908

71931ASUPPORT, REAR SEAT HEADREST

main71930-02370-A2×3iNSP151201908

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71931-02130-A2×3iNSP151201908

W/O(LOCK),IVORY,TRIM0#

71940AHEADREST ASSY, REAR SEAT

main71940-0DE30-A0×2iNSP151..D201908

IVORY,TRIM0#

main71940-0DK40-A0×2iNSP151..G,R201908

IVORY,TRIM0#

main71940-0DK50-A0×2iNSP151..V201908

IVORY/CAMEL,TRIM0#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0D660-A0iNSP151..D201908

IVORY,TRIM0#

main71960-0DA90-A0iNSP151..G,R201908

IVORY,TRIM0#

main71960-0DB00-A0iNSP151..V201908

IVORY/CAMEL,TRIM0#

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-0D180iNSP151201908

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-0D180iNSP151201908

72651DROD, REAR SEATBACK LOCK, RH

main72651-0D070-A0iNSP151201908

IVORY,TRIM0#

72651EROD, REAR SEATBACK LOCK, LH

main72652-0D070-A0iNSP151201908

IVORY,TRIM0#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iNSP151201908

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0D160-A0iNSP151..D,G,R201908

IVORY,TRIM0#

main72830-0D170-A0iNSP151..V201908

IVORY,TRIM0#

72831BPLATE, REAR SEAT CENTER ARMREST, NO.1

main72831-0D010iNSP151201908

72868BCOVER, CENTER ARMREST HINGE

main72868-0D050-A0iNSP151201908

IVORY,TRIM0#

73528CARPET, REAR SEAT SUB FLOOR, REAR

main73528-0D100-C0iNSP151201908

BLACK,TRIM0#

73707BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER

main73705-0D560iNSP151201908

90105T0175

main90105-T0175

9010908163

main90109-08163

90119T0340

main90119-T0340

90119T0458

main90119-T0458

9020610016

main90206-10016

9038610033

main90386-10033

9164580825

main91645-80825

31 parts on this diagram · 2 diagrams in section
