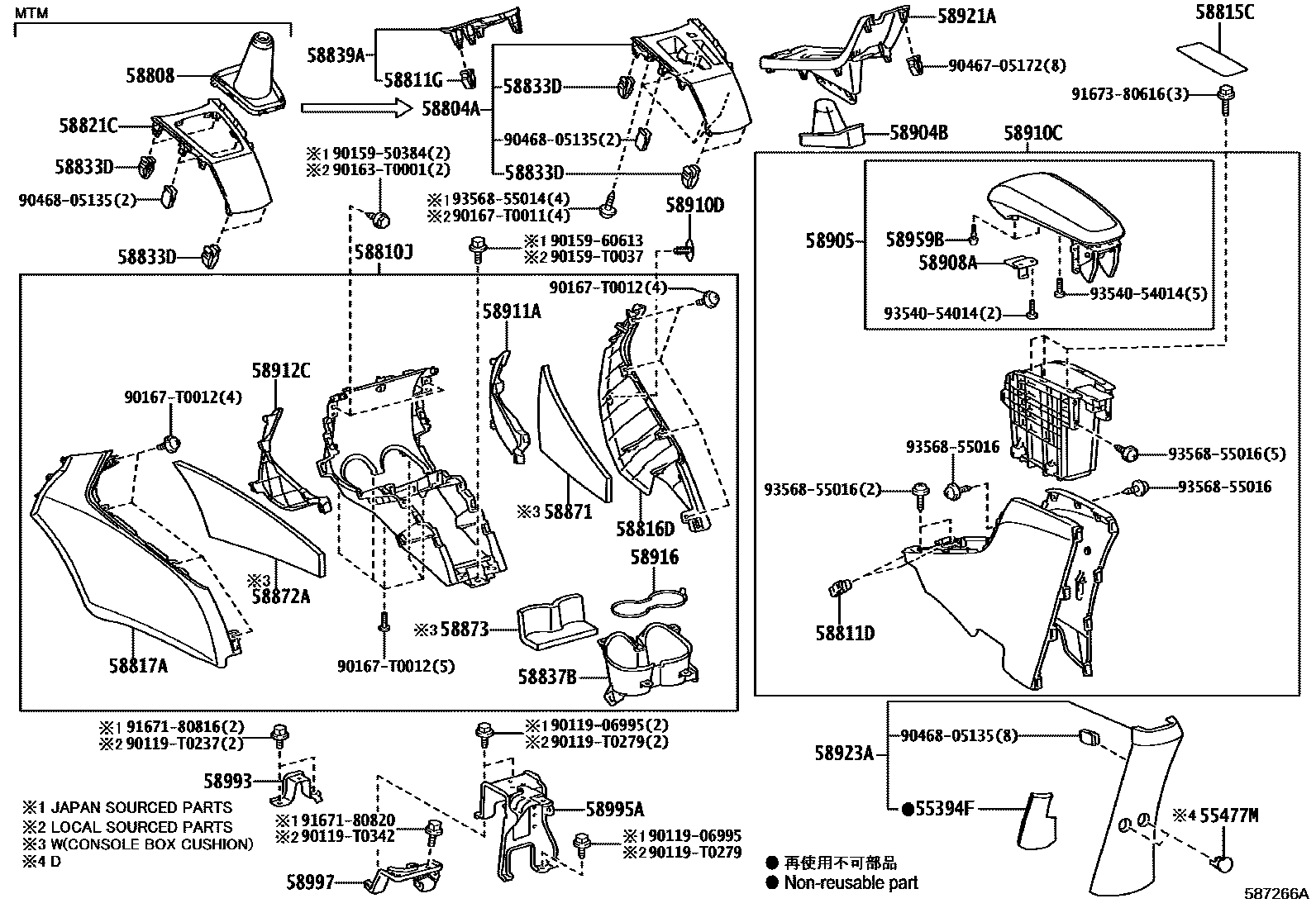

CONSOLE BOX & BRACKET

0001 1W(ARMREST) 0002 1W/O(ARMREST)

55394FCUSHION, INSTRUMENT PANEL, LOWER

main55394-0D110iNSP151..G,V201908

main55394-0D270iNSP151..R201908

CONSOLE BOX-WITHOUT(ARMREST)

55477MCOVER, CIGARETTE LIGHTER HOLE

main55477-0D010-C0iNSP151..D201908

BLACK,TRIM0#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0D510iNSP151..CVT..D201908

main58804-0D520iNSP151..CVT..R201908

sub58804-0D530

main58804-0D530iNSP151..CVT..(G,V)201908

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0D600-C0iNSP151..6F201908

BLACK,TRIM0#

58810JBOX ASSY, CONSOLE

main58810-0D070-C0iNSP151..D201908

BLACK,TRIM0#

main58810-0D180-C0iNSP151..G,R,V201908

BLACK,TRIM0#

sub58810-0D070

58811DCLIP(FOR CONSOLE BOX)

main90467-10203iNSP151201908

58811GCLIP(CONSOL BOX)

main90467-05172iNSP151201908

58815CCARPET, CONSOLE BOX

main58815-0D370iNSP151..G,V201908

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-0D090-C0iNSP151201908

BLACK,TRIM0#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0D090-C0iNSP151201908

BLACK,TRIM0#

58821CPANEL, CONSOLE, UPPER

main58821-0D490iNSP151..6F201908

58833DCLIP(FOR CONSOLE COVER)

main90467-05172iNSP151201908

58837BBOX, CONSOLE CUP HOLDER

main58837-0D160-C0iNSP151201908

BLACK,TRIM0#

58839ACOVER, CONSOLE BOX HOLE

main58839-0D090-C0iNSP151201908

BLACK,TRIM0#

58871CUSHION, CONSOLE BOX

main58871-0D140iNSP151..G,R,V201908

58872ACUSHION, CONSOLE BOX, NO.2

main58872-0D090iNSP151..G,R,V201908

58873CUSHION, CONSOLE BOX, NO.3

main58873-0D050iNSP151..G,R,V201908

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-0D130-C0iNSP151..D,R201908

BLACK,TRIM0#

main58904-0D130-C0iNSP151..D,R201908

CONSOLE BOX-WITHOUT(ARMREST),BLACK,TRIM0#

main58904-0D190-C0iNSP151..G,V201908

BLACK,TRIM0#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0D170-C1iNSP151..G201908

BLACK/IVORY,TRIM0#

main58905-0D270-C0iNSP151..V201908

BLACK/IVORY/CAMEL STITCH,TRIM0#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-0D040-C0iNSP151..G,V201908

BLACK,TRIM0#

58910CBOX ASSY, CONSOLE, REAR

main58910-0D570-C0iNSP151..D201908

BLACK,TRIM0#

main58910-0D590-C0iNSP151..R201908

BLACK,TRIM0#

main58910-0D590-C0iNSP151..R201908

CONSOLE BOX-WITHOUT(ARMREST),BLACK,TRIM0#

main58910-0D690-C0iNSP151..G201908

BLACK/IVORY,TRIM0#

main58910-0D700-C0iNSP151..V201908

BLACK/IVORY/CAMEL STITCH,TRIM0#

58910DCLIP(FOR CONSOLE BOX)

main90467-05164-C7iNSP151201908

BLACK,TRIM0#,(J)

sub90467-05164

main90467-T0004-C4iNSP151201908

BLACK,TRIM0#,(L)

58911APANEL, BOX SIDE, NO.1

main58911-0D440-C0iNSP151201908

BLACK,TRIM0#

58912CPANEL, BOX SIDE, NO.2

main58912-0D080-C0iNSP151201908

BLACK,TRIM0#

58916MAT, BOX BOTTOM

main58916-0D160-C0iNSP151201908

BLACK,TRIM0#

58921APANEL, REAR CONSOLE, UPPER

main58921-0D010iNSP151..D,R201908

CONSOLE BOX-WITHOUT(ARMREST)

main58921-0D070iNSP151..G,V201908

58923APANEL, CONSOLE REAR END

main58923-0D110-C0iNSP151..G,V201908

BLACK,TRIM0#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-03078iNSP151..G,V201908

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-0D050iNSP151201908

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0D180iNSP151201908

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-0D100iNSP151201908

9011906995

main90119-06995

90119T0237

main90119-T0237

90119T0279

main90119-T0279

90119T0342

main90119-T0342

9015950384

main90159-50384

9015960613

main90159-60613

90159T0037

main90159-T0037

90163T0001

main90163-T0001

90167T0011

main90167-T0011

90167T0012

main90167-T0012

9046705172

main90467-05172

9046805135

main90468-05135

9167180816

main91671-80816

9167180820

main91671-80820

9167380616

main91673-80616

9354054014

main93540-54014

9356855014

main93568-55014

9356855016

main93568-55016

49 parts on this diagram · 2 diagrams in section
