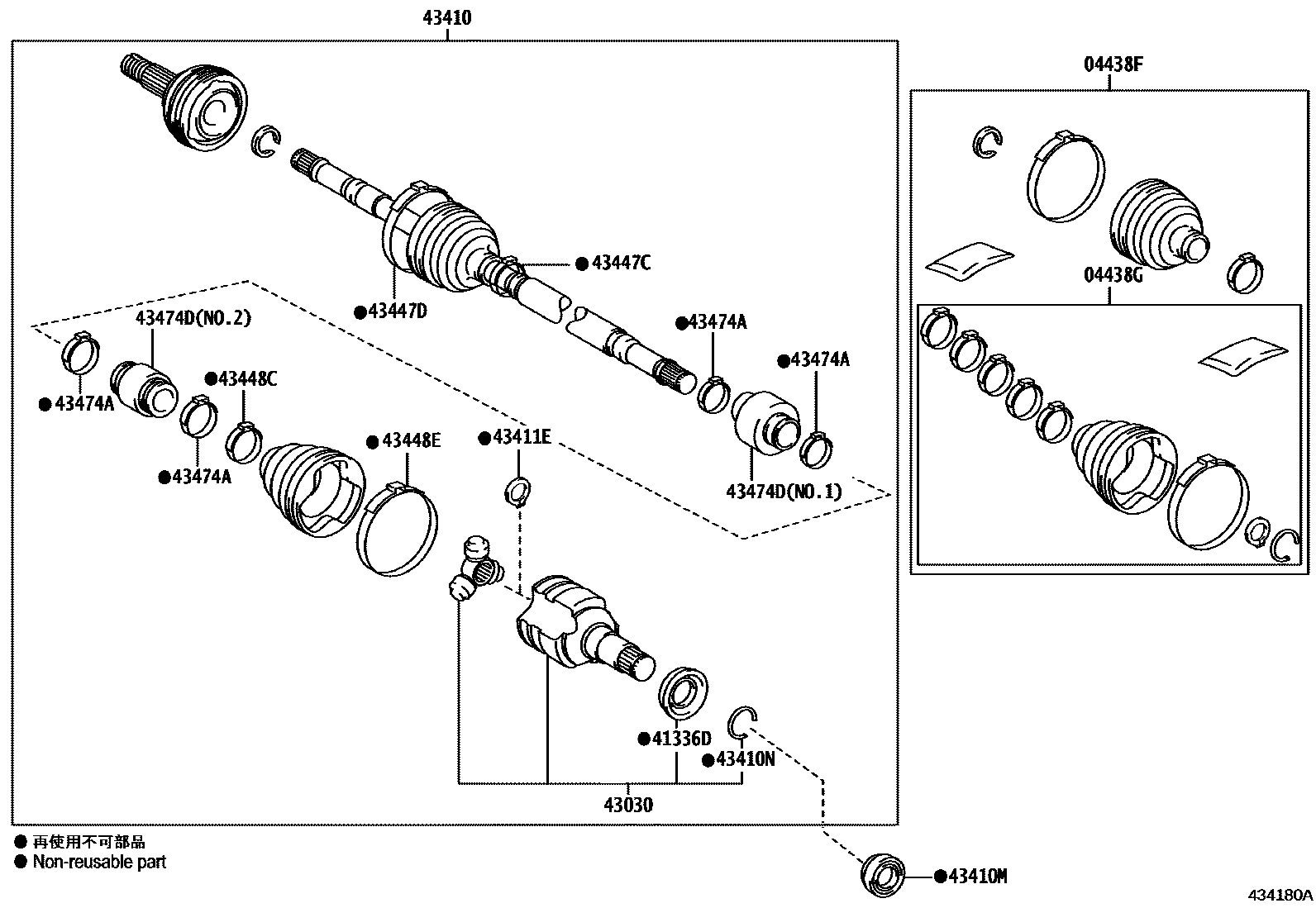

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D540iNSP151..CVT201908

main04427-0D550iNSP151..6F201908

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D370iNSP151..CVT201908

main04437-0D380iNSP151..6F201908

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02150iNSP151..6F201908

main41336-0D080iNSP151..CVT201908

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-0D090iNSP151..CVT201908

main43040-0D100iNSP151..6F201908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D730iNSP151..CVT201908

main43410-0D740iNSP151..6F201908

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34050iNSP151..CVT201908

main90311-T0087iNSP151..6F201908

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-02260iNSP151..6F201908

main43425-0D200iNSP151..CVT201908

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D480iNSP151201908

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0DC50iNSP151201908

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0DC40iNSP151201908

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DC10iNSP151201908

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DC00iNSP151201908

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-0D720×4iNSP151201908

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D400iNSP151201908

NO.1:REFER ILLUST.

main43474-0D460iNSP151..CVT201908

NO.2:REFER ILLUST.

main43474-0D520iNSP151..6F201908

NO.2:REFER ILLUST.

14 parts on this diagram · 2 diagrams in section
