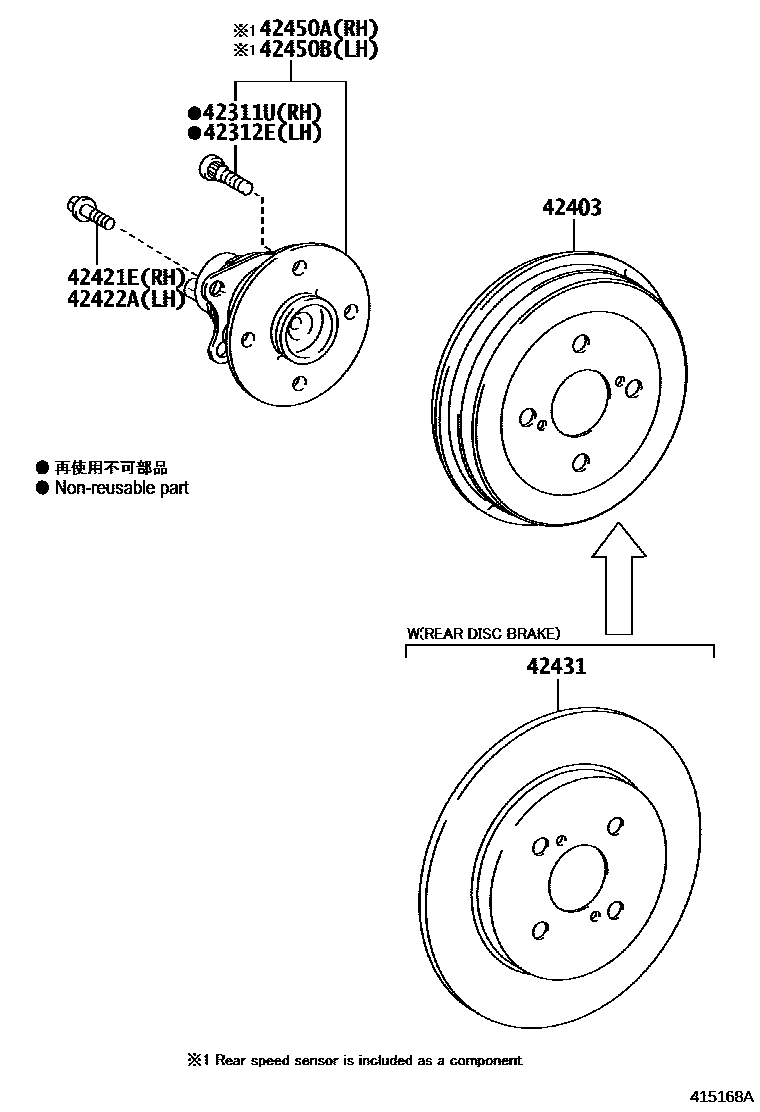

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02081×4iNSP151201908

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02081×4iNSP151201908

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0D140×2iNSP151..D,R201908

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iNSP151201908

(J)

main90105-T0187×4iNSP151201908

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iNSP151201908

(J)

main90105-T0187×4iNSP151201908

(L)

42431DISC, REAR

main42431-0D110×2iNSP151..G,V201908

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0D190iNSP151201908

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0D190iNSP151201908

8 parts on this diagram · 1 diagram in section
