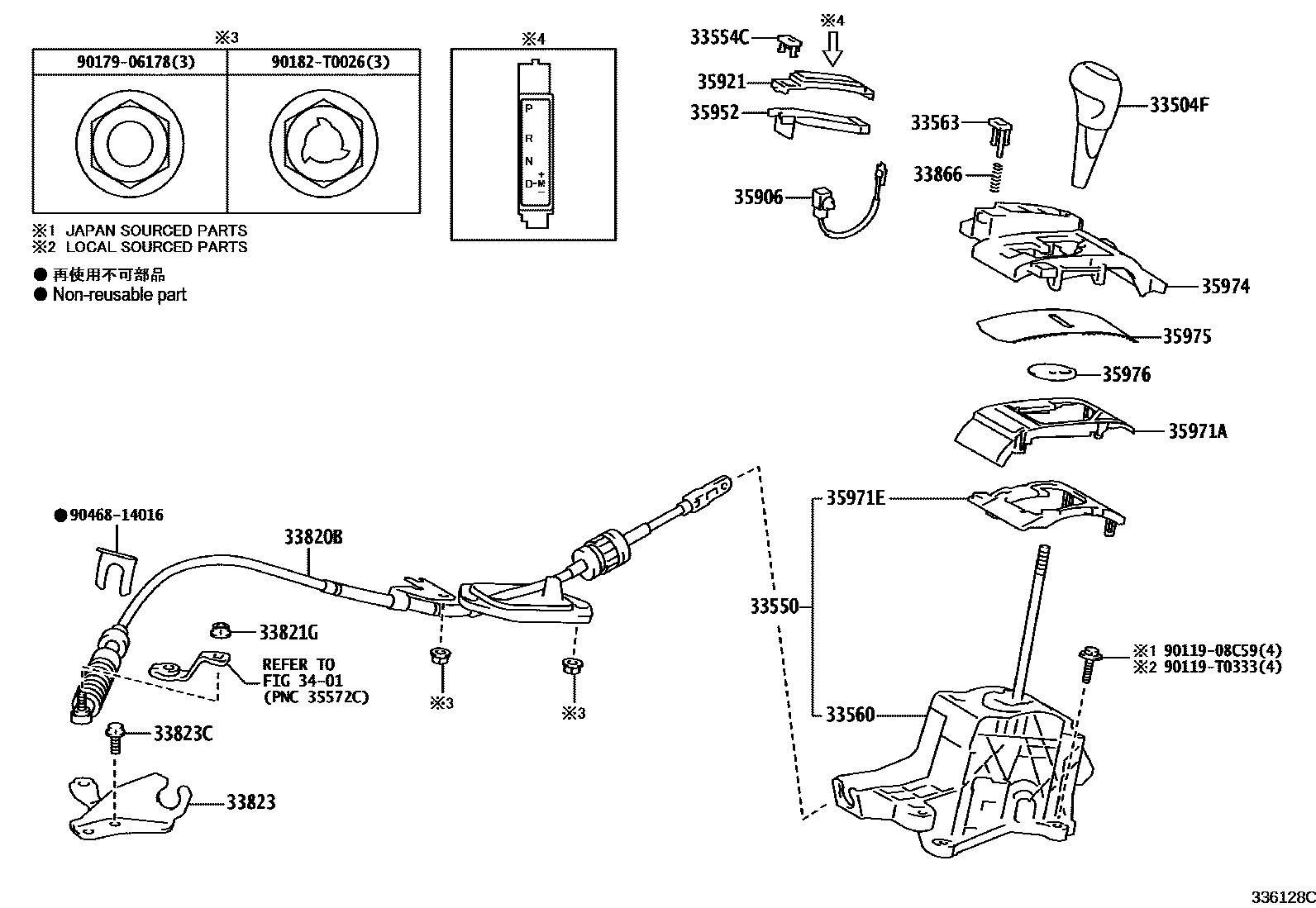

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#
BLACK,TRIM0#
SHIFT KNOB & STEERING WHEEL,LEATHER TYPE,BLACK,TRIM0#
BLACK,TRIM0#
BLACK,TRIM0#
SHIFT KNOB & STEERING WHEEL,LEATHER TYPE,BLACK,TRIM0#
BLACK,TRIM0#
BLACK,TRIM0#
33550FLOOR SHIFT ASSY, TRANSMISSION
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
(L)
(J)
33866SPRING, SHIFT LOCK RELEASE
3401
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35952LENS, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35971EHOUSING, POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9011908C59
main90119-08C59
90119T0333
main90119-T0333
9017906178
main90179-06178
90182T0026
main90182-T0026
9046814016
main90468-14016
24 parts on this diagram · 2 diagrams in section
