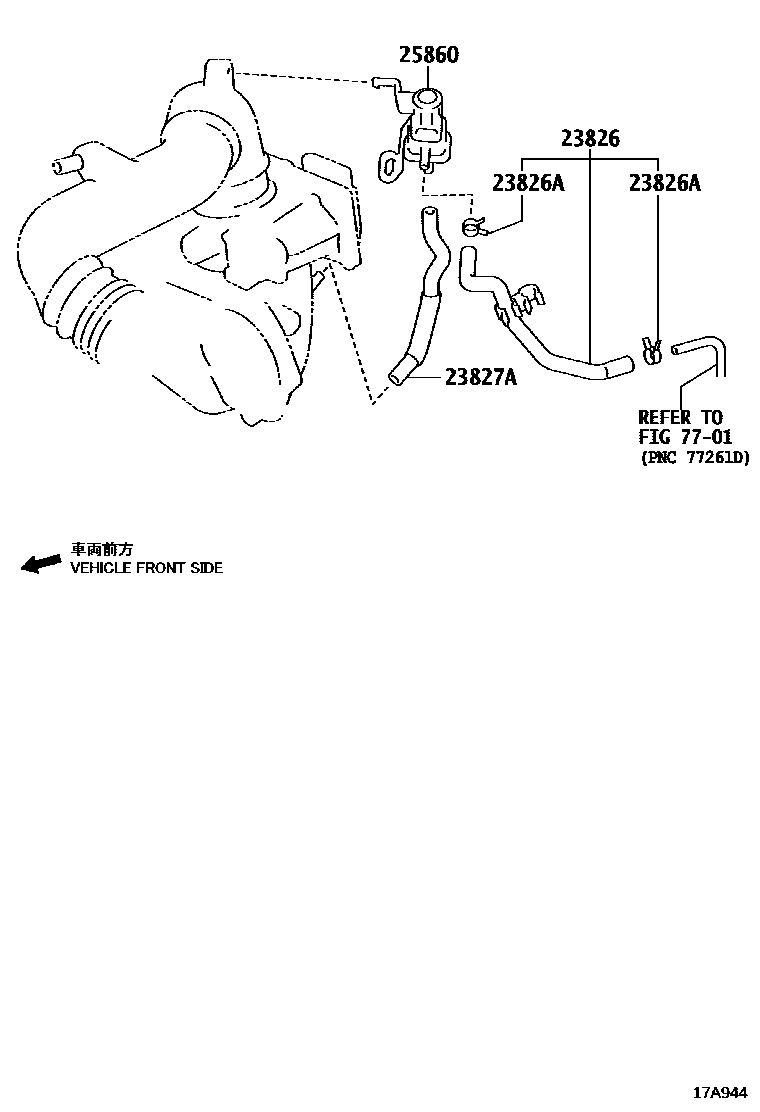

VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0Y140i2NRFE..NSP151201908

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i2NRFE..NSP151201908

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0Y140i2NRFE..NSP151201908

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0Y090i2NRFE..NSP151201908

7701

5 parts on this diagram · 2 diagrams in section
