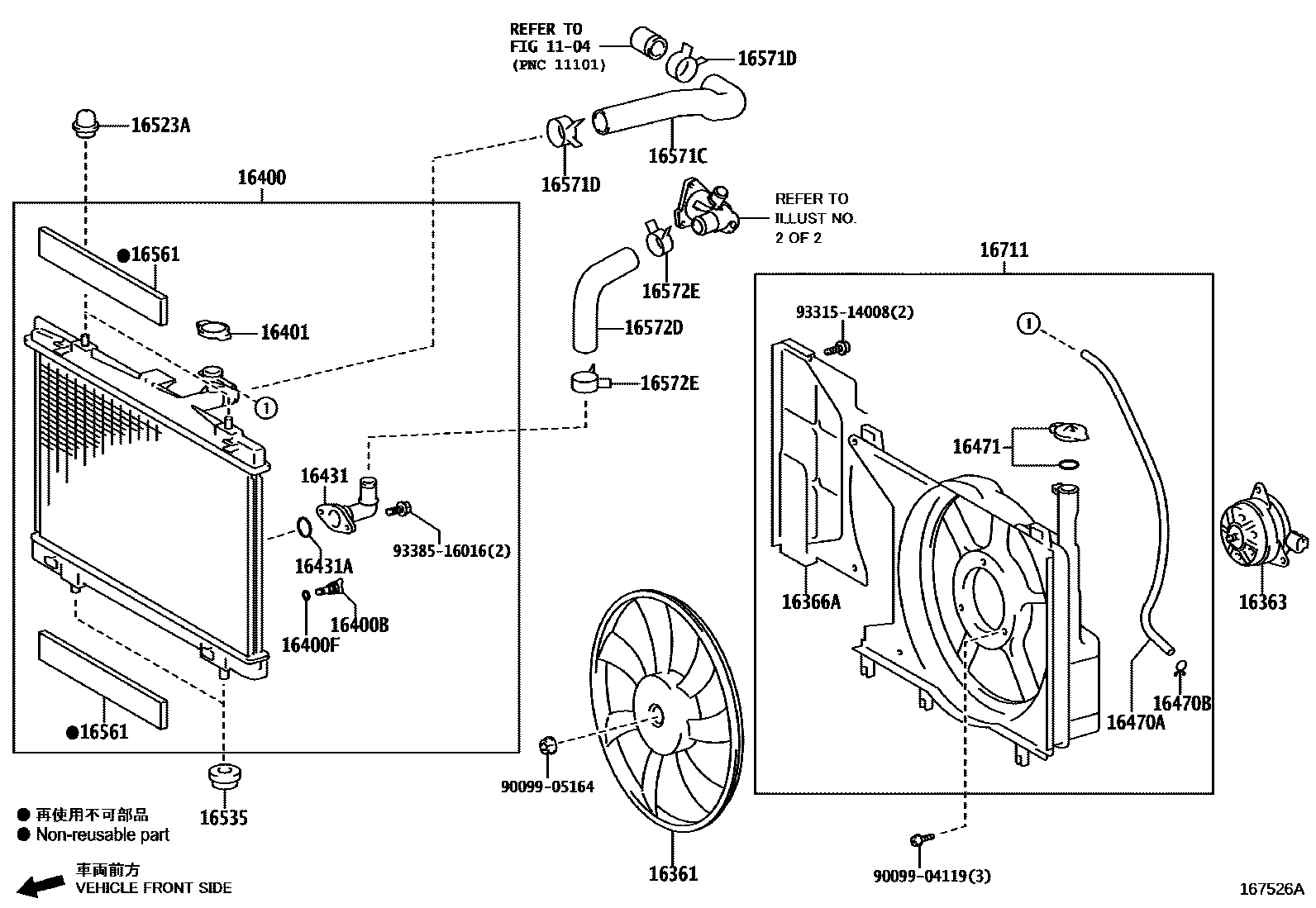

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1ENGINE SIDE

1104

16361FAN

main16361-0Y210i2NRFE..NSP151201908

16363MOTOR, COOLING FAN

main16363-0Y050i2NRFE..NSP151201908

16366AINSULATOR, COOLING FAN MOTOR

main16366-0Y280i2NRFE..NSP151201908

16400RADIATOR ASSY

main16400-0Y240i2NRFE..NSP151201908

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i2NRFE..NSP151201908

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2NRFE..NSP151201908

16401CAP SUB-ASSY, RADIATOR

main16401-0M010i2NRFE..NSP151201908

16431INLET, RADIATOR WATER

main16431-0Y240i2NRFE..NSP151201908

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-0Y100i2NRFE..NSP151201908

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0Y280i2NRFE..NSP151201908

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2NRFE..NSP151201908

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i2NRFE..NSP151201908

16523ACUSHION, RADIATOR SUPPORT

main16523-0Y010×2i2NRFE..NSP151201908

16535SUPPORT, RADIATOR, LOWER

main90480-T0001×2i2NRFE..NSP151201908

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0Y010×2i2NRFE..NSP151201908

16571CHOSE, RADIATOR, NO.1

main16571-0Y210i2NRFE..NSP151201908

16571DCLIP, RADIATOR HOSE, NO.1

main96136-43901×2i2NRFE..NSP151201908

16572DHOSE, RADIATOR, NO.2

main16572-0Y170i2NRFE..NSP151201908

16572ECLIP, RADIATOR HOSE, NO.2

main96136-43901×2i2NRFE..NSP151201908

16711SHROUD, FAN

main16711-0Y200i2NRFE..NSP151201908

9009904119

main90099-04119

9009905164

main90099-05164

9331514008

main93315-14008

9338516016

main93385-16016

25 parts on this diagram · 2 diagrams in section
