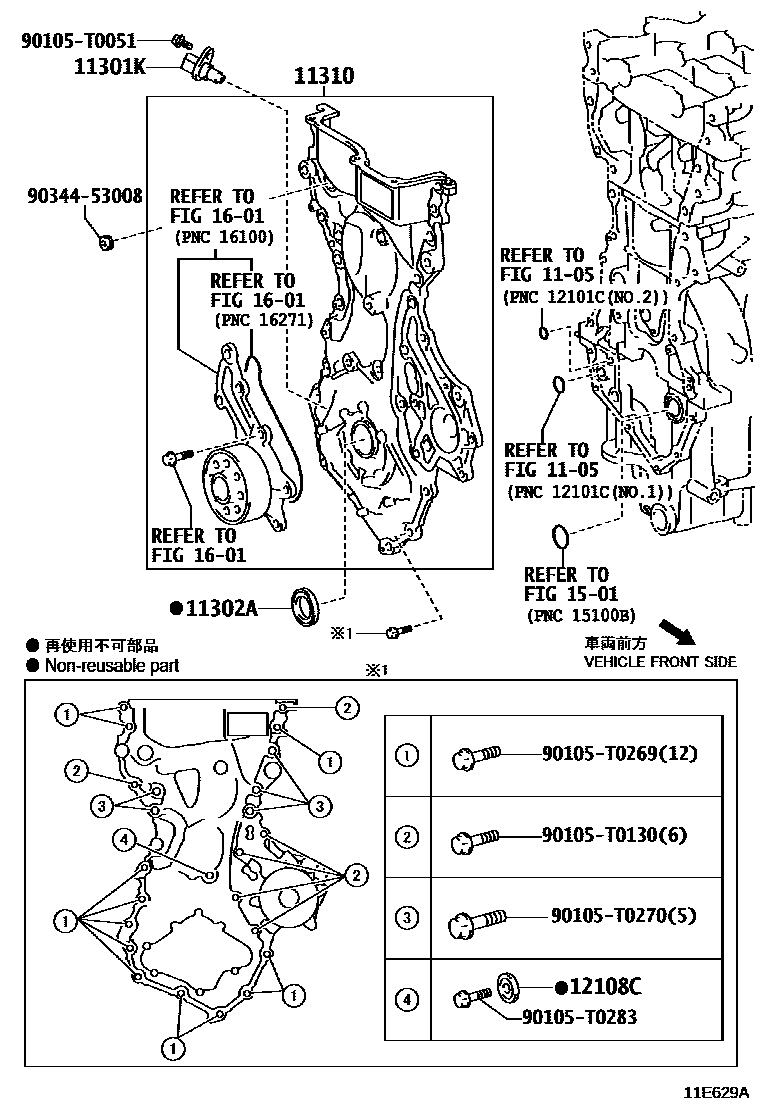

TIMING GEAR COVER & REAR END PLATE

1105

11301KSENSOR, CRANK POSITION

main90919-T5001i2NRFE..NSP151201908

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-T0076i2NRFE..NSP151201908

11310COVER ASSY, TIMING CHAIN

main11310-0Y040i2NRFE..NSP151201908

12108CGASKET

main16258-0Y010i2NRFE..NSP151201908

1501

1601

90105T0051

main90105-T0051

90105T0130

main90105-T0130

90105T0269

main90105-T0269

90105T0270

main90105-T0270

90105T0283

main90105-T0283

9034453008

main90344-53008

13 parts on this diagram · 1 diagram in section
