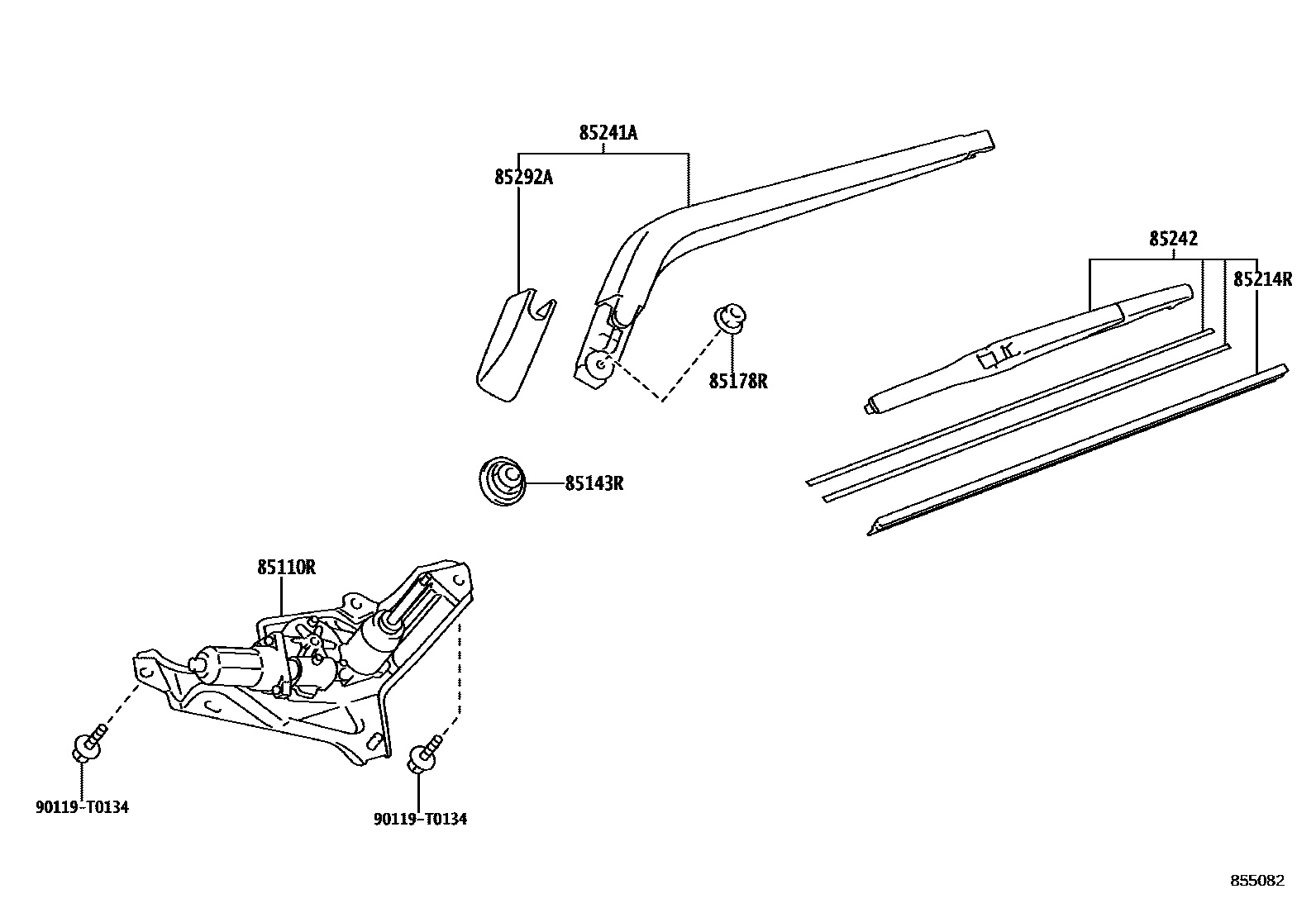

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0D220iNSP15#..5D..(GCC,GEN,TH,VN)202303

main85130-0D250iNSP151..MA202305

85143RGROMMET, REAR WIPER MOTOR

main85143-52040iNSP15#..5D202303

85178RNUT (FOR REAR WIPER ARM SETTING)

main90182-T0005iNSP15#..5D202303

85214RRUBBER, REAR WIPER

main85214-0D330iNSP15#..5D202303

85241AARM, REAR WIPER

main85241-0D120iNSP15#..5D202303

85242BLADE, RR WIPER

main85242-0D070iNSP15#..5D202303

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080iNSP15#..5D202303

90119T0134

main90119-T0134

8 parts on this diagram · 1 diagram in section
