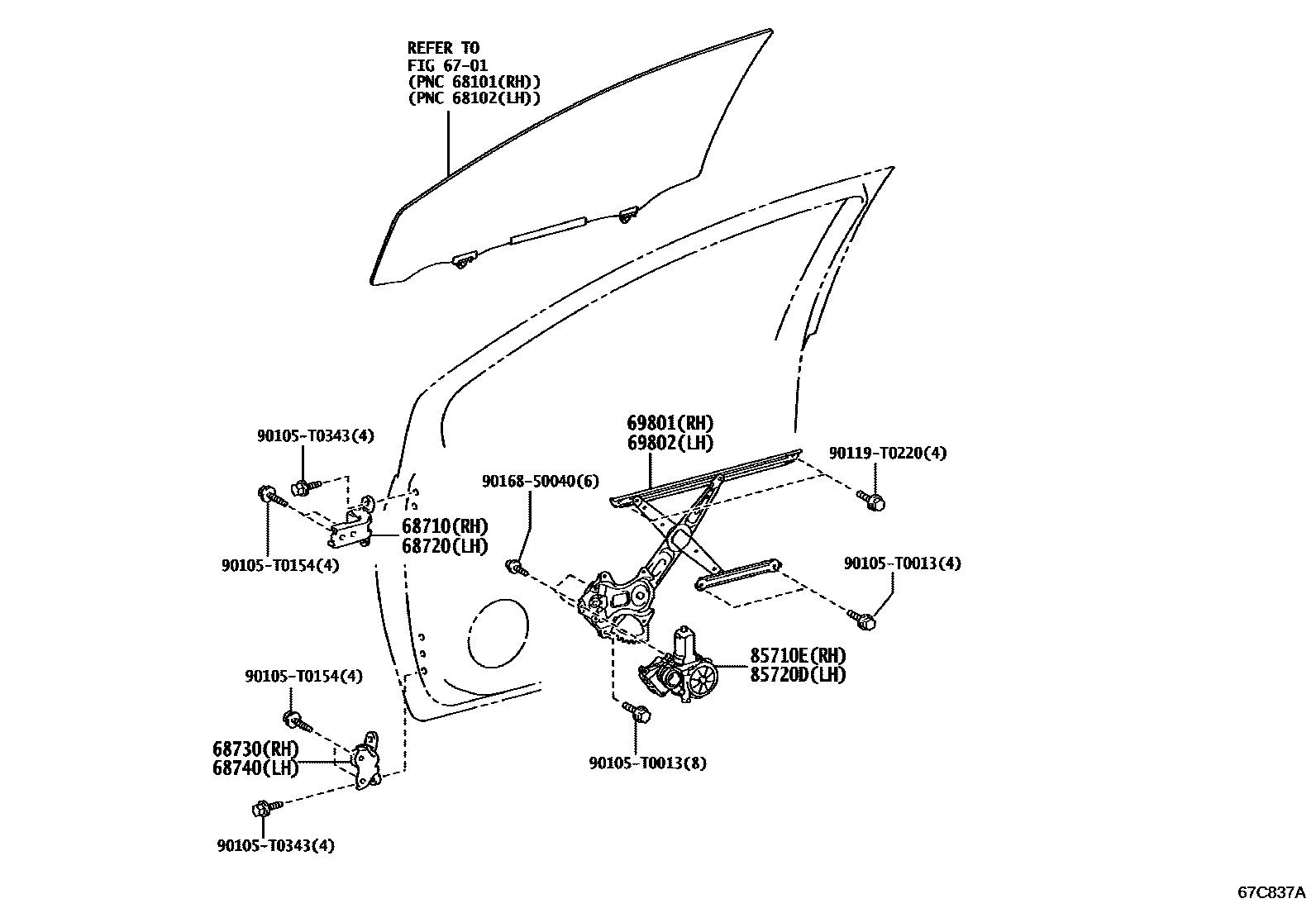

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D050iNSP15#..GCC,GEN,MA,TH,VN202303

main68710-12151iNSP150,151..PKN202407

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D050iNSP15#..GCC,GEN,MA,TH,VN202303

main68720-12151iNSP150,151..PKN202407

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02100iNSP15#202303

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02100iNSP15#202303

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0D330iNSP150,151..PKN202407

main69801-0D351iNSP15#..GCC,GEN,MA,TH,VN202303

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0D310iNSP150,151..PKN202407

main69802-0D331iNSP15#..GCC,GEN,MA,TH,VN202303

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D250iNSP150,151..PKN202407

main85710-0D560iNSP151,152..RHD..5D202303

main85710-0D570iNSP150,151..LHD202303

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D570iNSP151,152..RHD..5D202303

main85720-0D590iNSP150,151..LHD202303

main85720-0K180iNSP150,151..PKN202407

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
