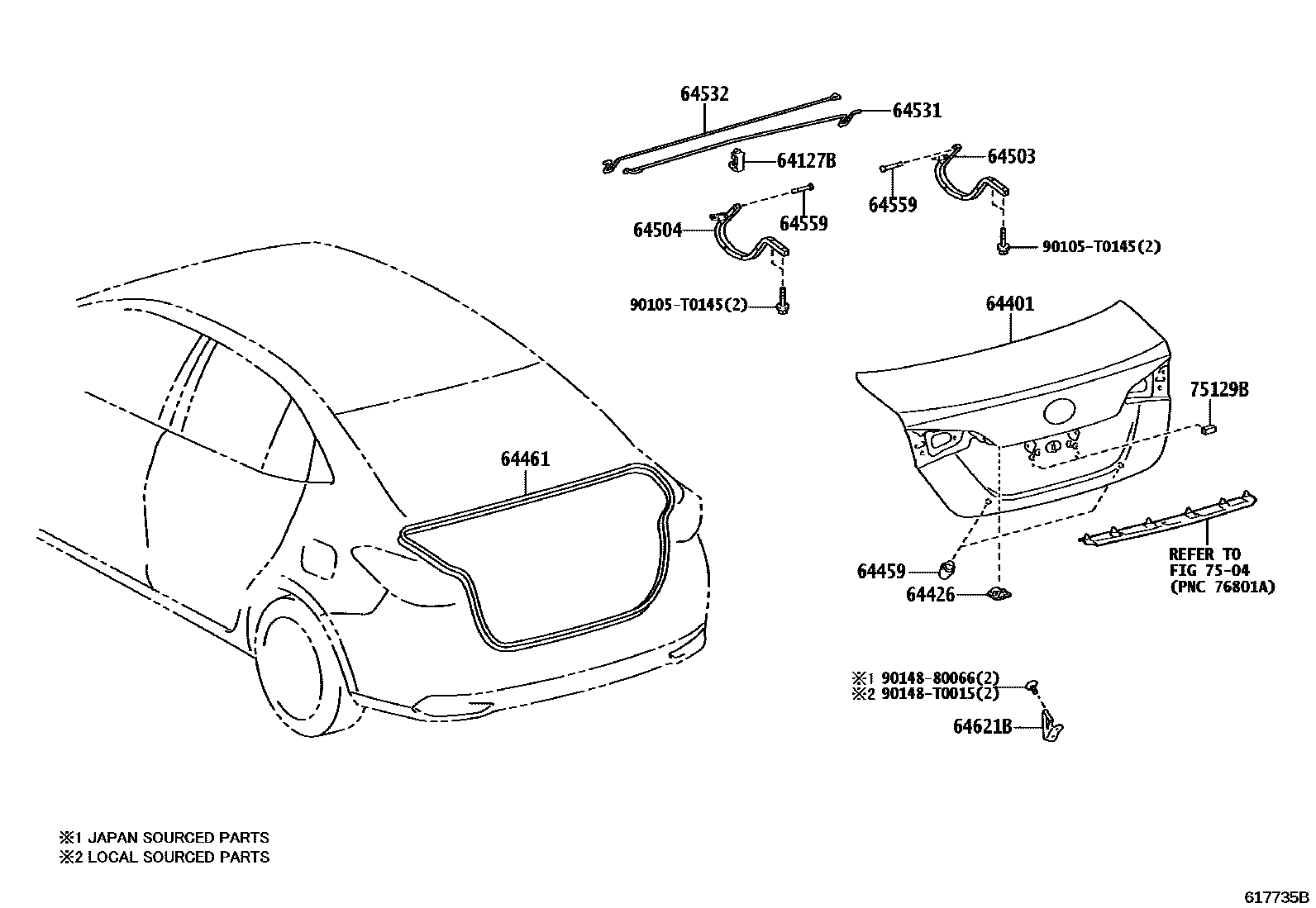

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR 0002 1LUGGAGE DOOR LOCK CONTROL CAB0003 1LUGGAGE DOOR LOCK CONTROL CAB

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D060iNSP150,151..4D202304

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D490iNSP151..4D..G..VN202304

main64401-0D630iNSP151..PKN202407

main64401-0D640iNSP150..PKN202407

main64401-0D660iNSP151..R..VN202304

main64401-0D700iNSP151..5F..PKN; NSP151..CVT..PKN202407

AUDIO-*DA & *BT; AUDIO-*DA & *BT & USB & 6SPEAKER; BACK MONITOR-WITH

64426PLUG, LUGGAGE COMPARTMENT DOOR, LH

main64426-0D010iNSP151..4D..VN202304

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2iNSP150,151..4D202304

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D180iNSP151..4D..VN202304

main64461-0D250iNSP150,151..PKN202407

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D090iNSP151..4D..VN202304

main64503-0D140iNSP150,151..PKN202407

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D090iNSP151..4D..VN202304

main64503-0D140iNSP150,151..PKN202407

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D300iNSP151..4D..VN202304

main64531-0D390iNSP150,151..PKN202407

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D290iNSP151..4D..VN202304

main64532-0D380iNSP150,151..PKN202407

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iNSP150,151..4D202304

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iNSP150,151..4D202304

7504REAR MOULDING

→ Go to FIG 75-04

75129BCUSHION, REAR LICENCE PLATE

main75129-0D030×2iNSP150,151..PKN202407

main75129-0D080×2iNSP151..4D..VN202304

90105T0145

main90105-T0145

9014880066

main90148-80066

90148T0015

main90148-T0015

16 parts on this diagram · 3 diagrams in section
