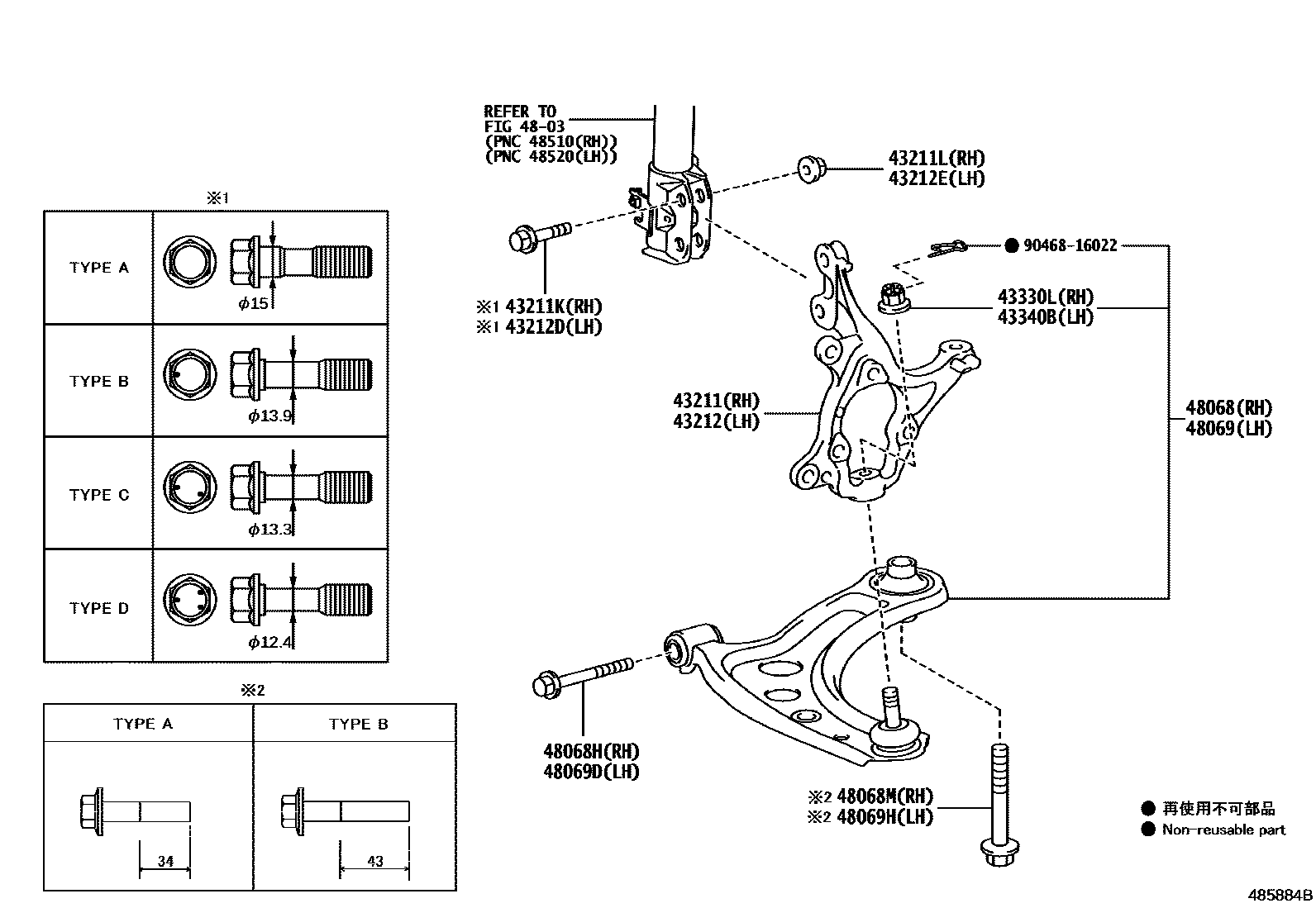

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0D250iNSP15#..GCC,GEN,MA,TH,VN202303

main43211-0D320iNSP150,151..PKN202407

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-T0190×2iNSP15#..GCC,GEN,MA,TH,VN202303

OD=15

main90109-15001×2iNSP150,151..PKN202407

OD=15,(J),TYPE A:REF ILL.

main90109-15002iNSP15#202303

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP15#202303

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP15#202303

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-T0069×2iNSP15#..GCC,GEN,MA,TH,VN202303

main90179-15004×2iNSP150,151..PKN202407

(J)

43212KNUCKLE, STEERING, LH

main43212-0D250iNSP15#..GCC,GEN,MA,TH,VN202303

main43212-0D320iNSP150,151..PKN202407

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-T0190×2iNSP15#..GCC,GEN,MA,TH,VN202303

OD=15

main90109-15001×2iNSP150,151..PKN202407

OD=15,(J),TYPE A:REF ILL.

main90109-15002iNSP15#202303

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP15#202303

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP15#202303

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-T0069×2iNSP15#..GCC,GEN,MA,TH,VN202303

main90179-15004×2iNSP150,151..PKN202407

(J)

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNSP15#..GCC,GEN,MA,TH,VN202303

(J)

main90171-T0005iNSP15#..GCC,GEN,MA,TH,VN202303

(L)

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNSP150,151..PKN202407

main90171-T0005iNSP15#..GCC,GEN,MA,TH,VN202303

(L)

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-09251iNSP150,151..CVT..GEN;NSP15#..GCC,MA,PKN,TH,VN202303

main48068-09260iNSP150,151..5F..GEN202303

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNSP150,151..PKN202407

main90119-T0596iNSP15#..GCC,GEN,MA,TH,VN202303

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14147iNSP15#..GCC,GEN,MA,TH,VN202303

TYPE A:REFER ILLUST.

main90119-T0597iNSP150,151..PKN202407

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-09261iNSP150,151..CVT..GEN;NSP15#..GCC,MA,PKN,TH,VN202303

main48069-09270iNSP150,151..5F..GEN202303

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNSP150,151..PKN202407

main90119-T0596iNSP15#..GCC,GEN,MA,TH,VN202303

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14147iNSP15#..GCC,GEN,MA,TH,VN202303

TYPE A:REFER ILLUST.

main90119-T0597iNSP15#..GCC,GEN,MA,TH,VN202303

TYPE B:REFER ILLUST.

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
