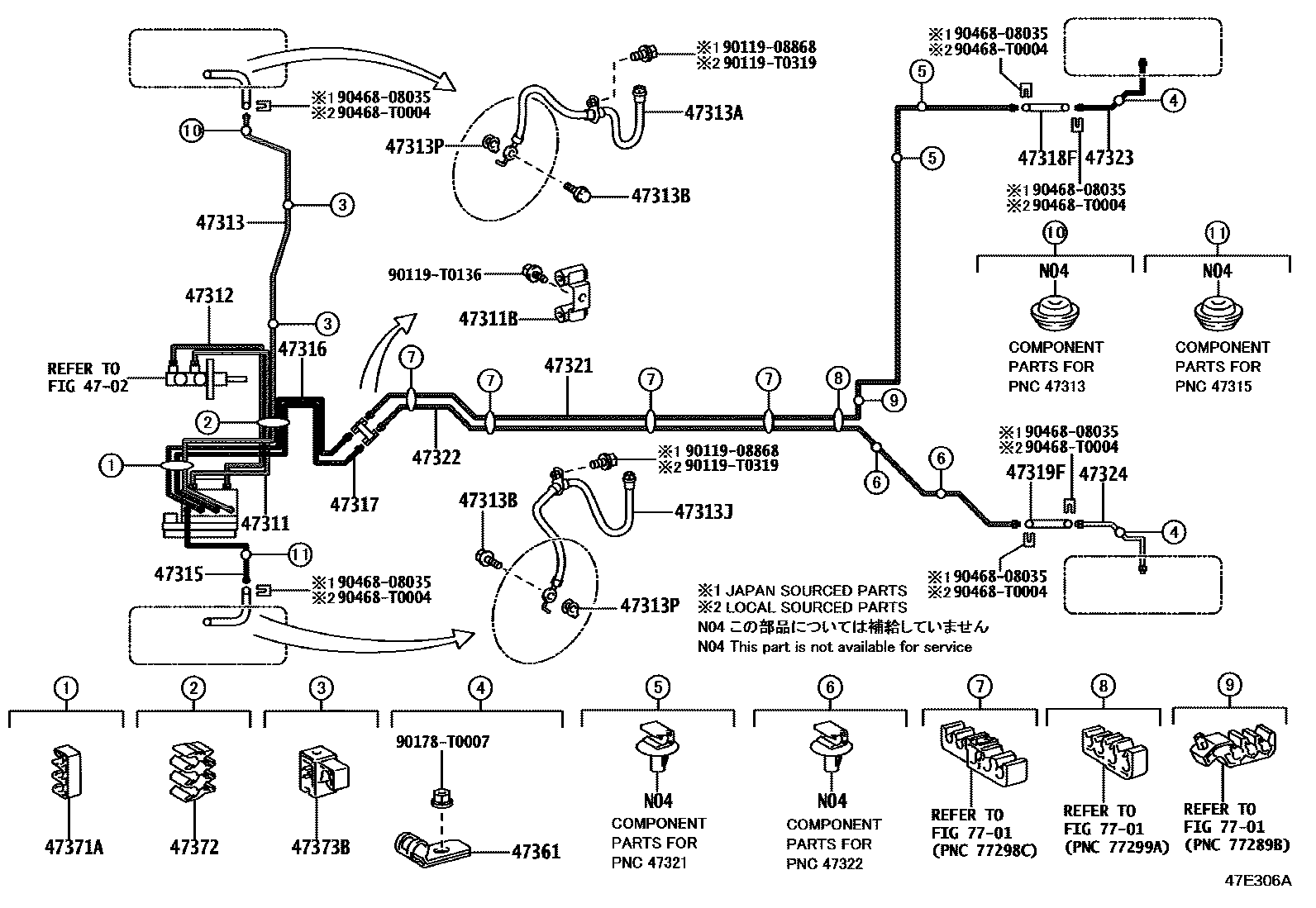

BRAKE TUBE & CLAMP

0001 1W(ABS OR VSC) & REAR DRUM BRA0002 1W(ABS OR VSC) & REAR DISC BRA0003 1W(ABS OR VSC) & REAR DRUM BRA0004 1W(ABS OR VSC) & REAR DRUM BRA0005 1W(ABS OR VSC) & REAR DISC BRA0006 1W(ABS OR VSC) & REAR DISC BRA0007 1BRAKE ACTUATOR 0008 1BRAKE ACTUATOR 0009 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-0D780iNSP152202303

main47311-0D790iNSP150,151..LHD..CVT202303

main47311-0D800iNSP150,151..5F..R202303

main47311-0DB20iNSP151..MA202305

main47311-0DB70iNSP150,151..PKN202407

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iNSP15#202303

47312TUBE, FRONT BRAKE, NO.2

main47312-0D710iNSP152202303

main47312-0D720iNSP150,151..LHD..CVT202303

main47312-0D730iNSP150,151..5F..R202303

main47312-0DA50iNSP151..MA202305

main47312-0DB00iNSP150,151..PKN202407

47313TUBE, FRONT BRAKE, NO.3

main47313-0D490iNSP150,151..5F..R202303

main47313-0D690iNSP152202303

main47313-0D700iNSP150,151..LHD..CVT202303

main47313-0D870iNSP151..MA202305

main47313-0DA00iNSP150,151..PKN202407

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2081iNSP150,151..CVT..GEN;NSP15#..GCC,MA,PKN,TH,VN202303

main90947-T2119iNSP150,151..5F..GEN202303

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNSP15#202303

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2082iNSP150,151..CVT..GEN;NSP15#..GCC,MA,PKN,TH,VN202303

main90947-T2120iNSP150,151..5F..GEN202303

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iNSP15#202303

47315TUBE, FRONT BRAKE, NO.5

main47315-0D500iNSP150,151..5F..R202303

main47315-0D670iNSP152202303

main47315-0D680iNSP150,151..LHD..CVT202303

main47315-0D850iNSP151..MA202305

main47315-0D880iNSP150,151..PKN202407

47316TUBE, FRONT BRAKE, NO.6

main47316-0D390iNSP150,151..5F..R202303

main47316-0D580iNSP152202303

main47316-0D590iNSP150,151..LHD..CVT202303

main47316-0D760iNSP151..MA202305

main47316-0D800iNSP150,151..PKN202407

47317TUBE, FRONT BRAKE, NO.7

main47317-0D390iNSP150,151..5F..R202303

main47317-0D580iNSP152202303

main47317-0D590iNSP150,151..LHD..CVT202303

main47317-0D760iNSP151..MA202305

main47317-0D790iNSP150,151..PKN202407

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2083iNSP15#202303

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2084iNSP15#202303

47321TUBE, REAR BRAKE, NO.1

main47321-0D360iNSP15#..GCC,GEN,TH,VN202303

main47321-0D370iNSP151..MA202305

main47321-0D470iNSP150,151..PKN202407

47322TUBE, REAR BRAKE, NO.2

main47322-0D360iNSP15#..GCC,GEN,TH,VN202303

main47322-0D370iNSP151..MA202305

main47322-0D490iNSP150,151..PKN202407

47323TUBE, REAR BRAKE, NO.3

main47323-0D220iNSP15#..GCC,GEN,TH202303

main47323-0D230iNSP151..R..MA202305

main47323-0D240iNSP151..VN202303

main47323-0D250iNSP151..G..MA202305

main47323-0D380iNSP150,151..PKN202407

47324TUBE, REAR BRAKE, NO.4

main47324-0D220iNSP15#..GCC,GEN,TH202303

main47324-0D230iNSP151..R..MA202305

main47324-0D240iNSP151..VN202303

main47324-0D250iNSP151..G..MA202305

main47324-0D380iNSP150,151..PKN202407

47361CLAMP, TUBE

main90461-T0006×2iNSP15#202303

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iNSP150,151..LHD..CVT202303

main90464-00868iNSP150,151..5F..R202303

main90464-00899iNSP15#..RHD202303

47372CLAMP, BRAKE TUBE, NO.2

main90464-00925iNSP150,151..LHD202303

main90949-01D84iNSP15#..RHD202303

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D18×2iNSP150,151..LHD202303

main90949-01D85iNSP15#..RHD202303

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

90119T0136

main90119-T0136

90119T0319

main90119-T0319

90178T0007

main90178-T0007

9046808035

main90468-08035

90468T0004

main90468-T0004

29 parts on this diagram · 9 diagrams in section
