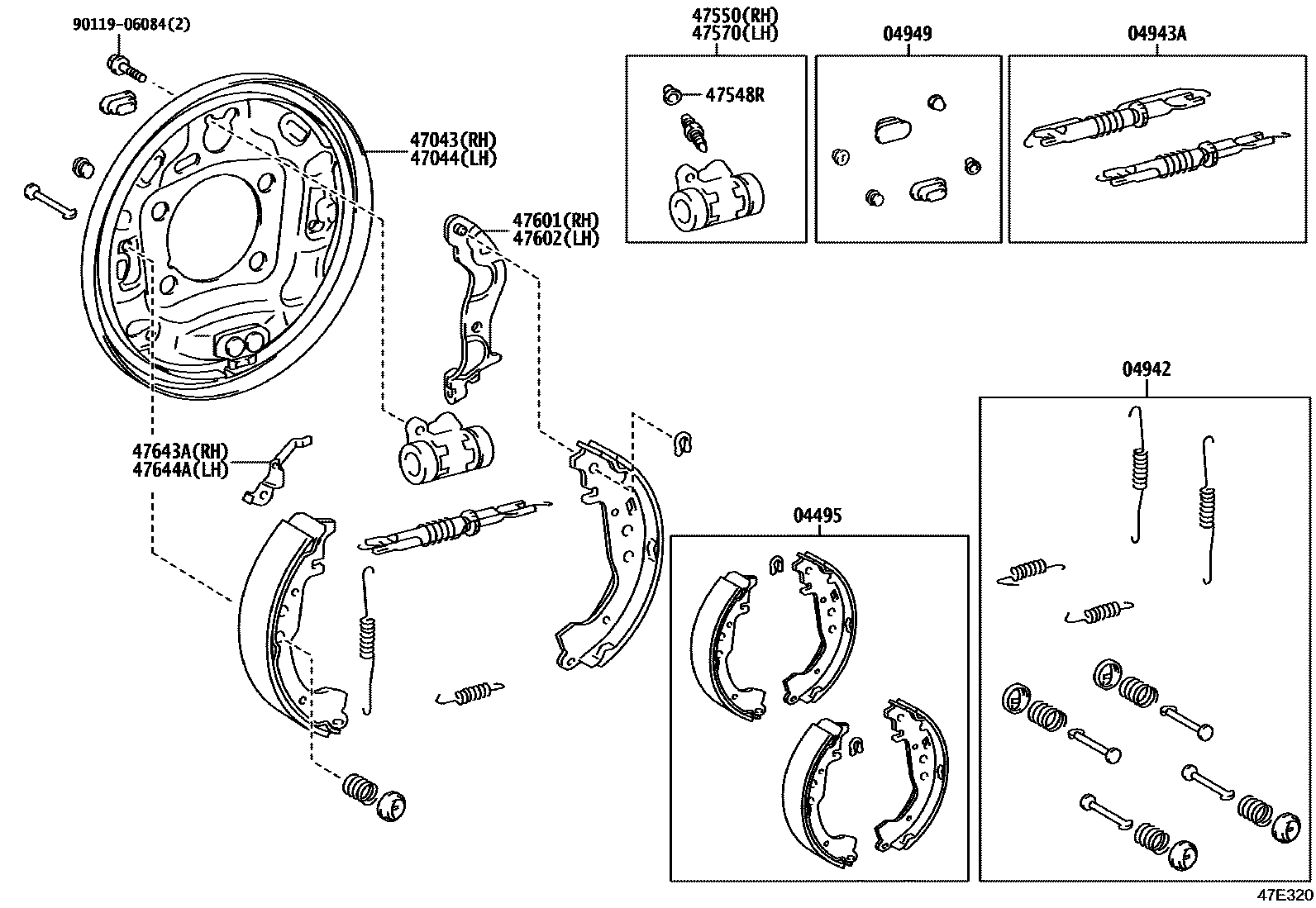

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D061iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

MARK NSA LN521

04942SPRING KIT, REAR BRAKE

main04942-0D070iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

04943ASTRUT KIT, REAR BRAKE

main04943-0D040iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

04949PLUG KIT, REAR BRAKE

main04949-0D010iNSP150..GCC202303

main04949-0D050iNSP151..PKN;NSP151..5D..(D,R);NSP150,152..GEN,PKN,TH202303

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0D060iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0D060iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0D040iNSP151..PKN;NSP151..5D..(D,R);NSP150,152..GEN,PKN,TH202303

main31478-30010iNSP150..GCC202303

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-0D100iNSP151..PKN;NSP151..5D..(D,R);NSP150,152..GEN,PKN,TH202303

main47550-52040iNSP150..GCC202303

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-0D050iNSP151..PKN;NSP151..5D..(D,R);NSP150,152..GEN,PKN,TH202303

main47570-52040iNSP150..GCC202303

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-0D060iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-0D060iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0D101iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0D101iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

9011906084

main90119-06084

14 parts on this diagram · 1 diagram in section
