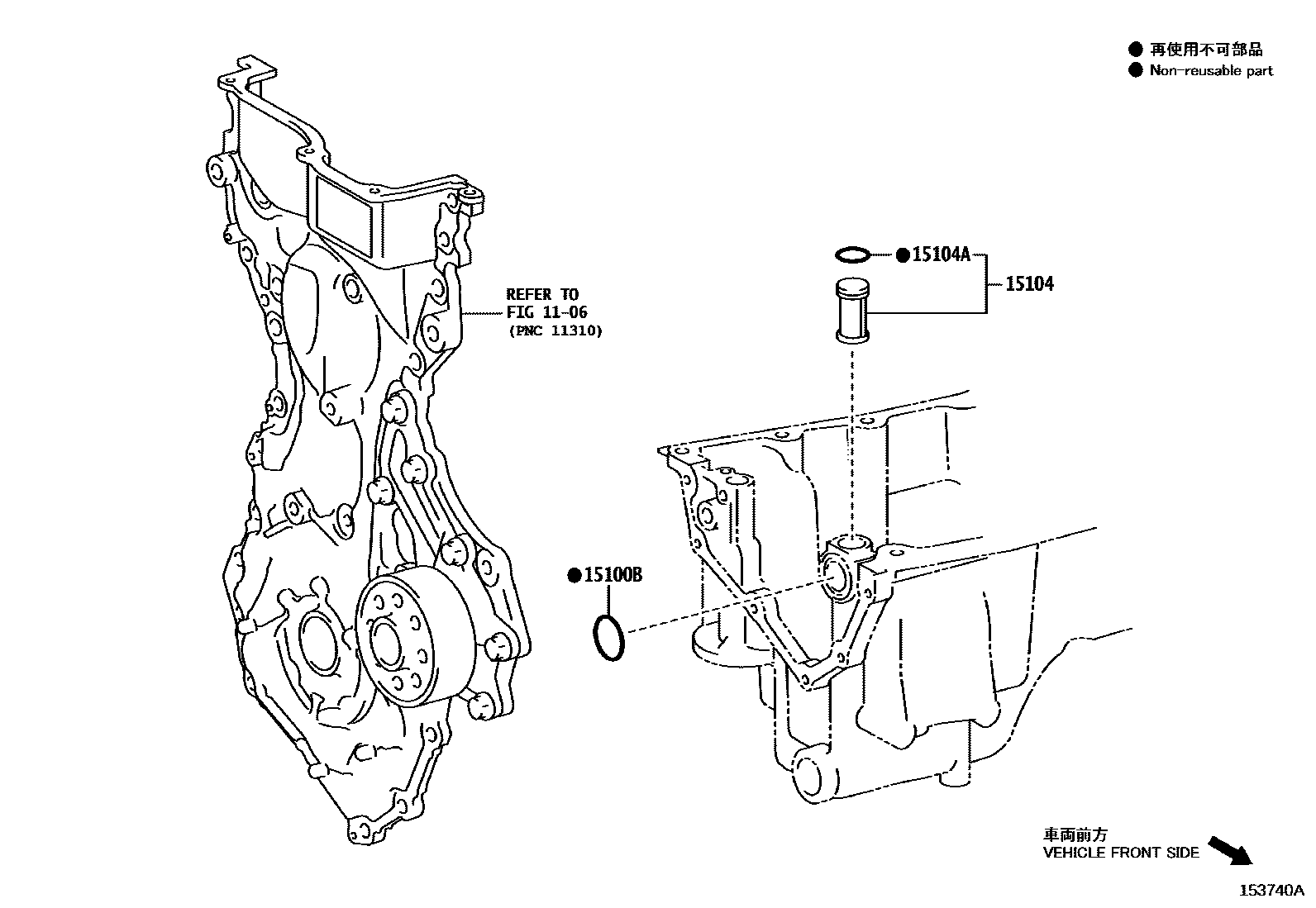

ENGINE OIL PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15100BRING, O(FOR OIL PUMP)

main90301-T0058i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main90301-T0059i1NRFE,2NRFE..NSP150,151..LHD202303

*264

15104STRAINER SUB-ASSY, OIL

main15104-0Y010i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303

*264; *712 OR *432

15104ARING, O(FOR OIL STRAINER)

main90301-T0061i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303

*264; *712 OR *432

4 parts on this diagram · 1 diagram in section
