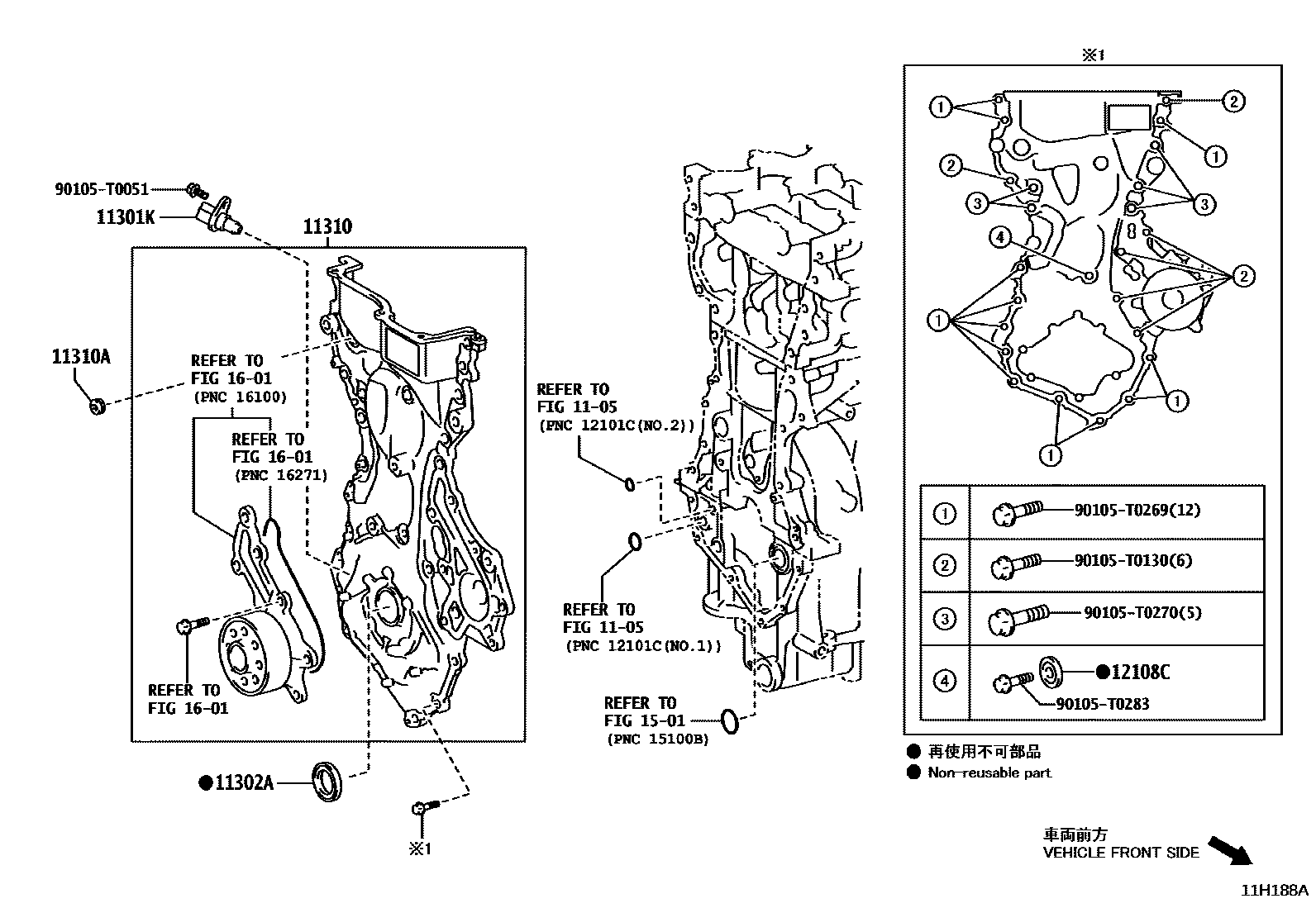

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301KSENSOR, CRANK POSITION

main90919-05079i3NRFKE..NSP152202303

main90919-T5001i1NRFE,2NRFE..NSP150,151..LHD; 1NRFE,2NRFE..NSP150,151..LHD..5D202303

*264; *712 OR *432

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-T0075i1NRFE,2NRFE..NSP150,151..LHD..5D; 3NRFKE..NSP152202303

*712 OR *432

main90311-T0076i1NRFE,2NRFE..NSP150,151..LHD202303

*264

11310COVER ASSY, TIMING CHAIN

main11310-0Y040i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main11310-0Y061i3NRFKE..NSP152202303

main11310-0Y080i1NRFE,2NRFE..NSP150,151..LHD..5D202303

*712 OR *432

11310APLUG, TAPER SCREW(FOR TIMING CHAIN COVER)

main90043-44022i2NRFE..NSP151..MA202305

12108CGASKET

main16258-0T020i1NRFE,2NRFE..NSP150,151..LHD..5D; 3NRFKE..NSP152202303

(L),*712 OR *432

main16258-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main16258-37010i1NRFE,2NRFE..NSP150,151..LHD..5D202303

(J),*712 OR *432

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

90105T0051

main90105-T0051

90105T0130

main90105-T0130

90105T0269

main90105-T0269

90105T0270

main90105-T0270

90105T0283

main90105-T0283

13 parts on this diagram · 2 diagrams in section
