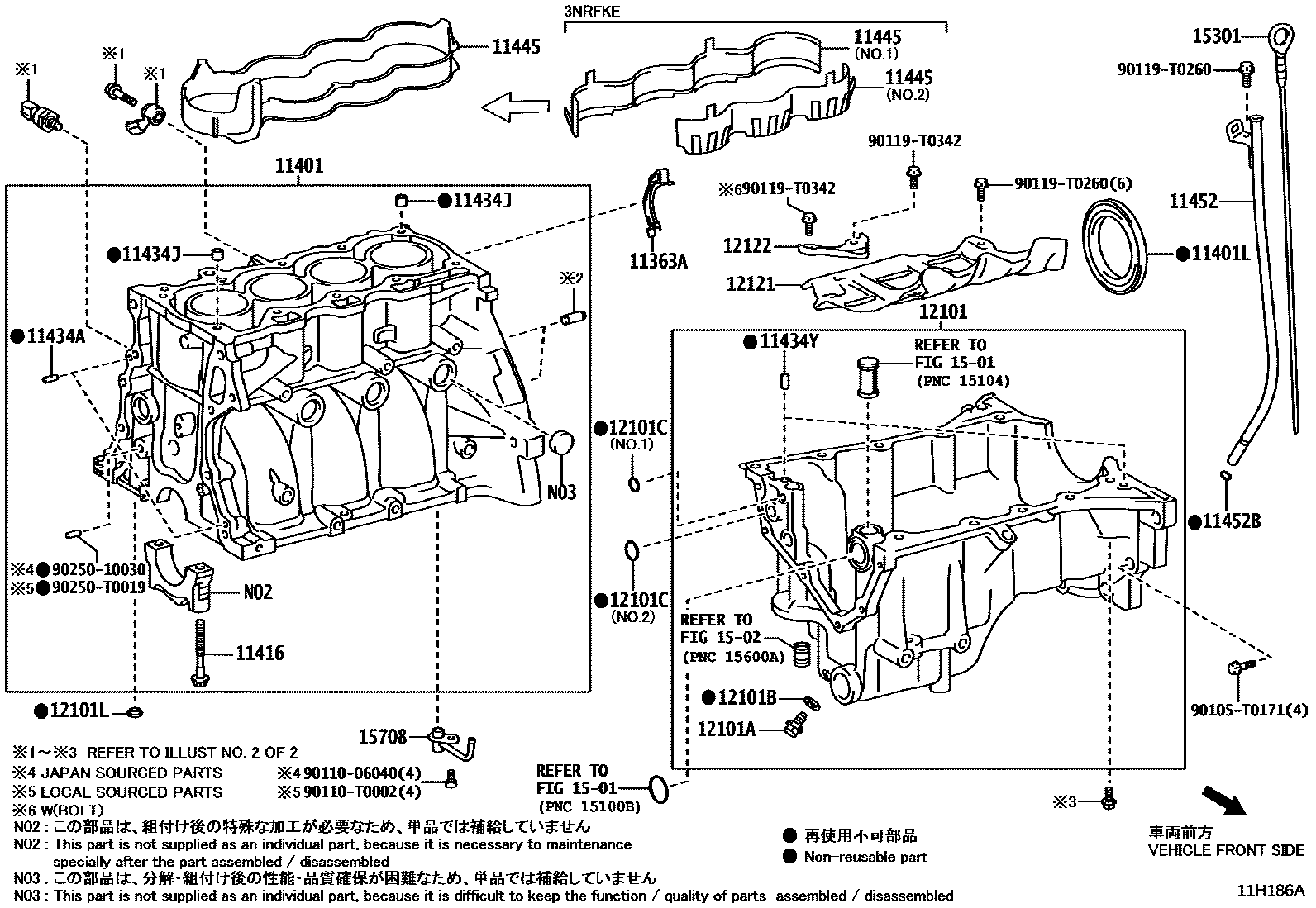

CYLINDER BLOCK

0001 1 0002 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0Y020i1NRFE,2NRFE,3NRFKE..NSP15#202303

11401BLOCK SUB-ASSY, CYLINDER

main11410-09700i2NRFE..NSP151..PKN202407

main11410-09710i1NRFE..NSP150..PKN202407

main11410-09740i2NRFE..NSP151..LHD..5D202303

*712 OR *432

main11410-09750i1NRFE..NSP150..R202303

*712 OR *432

main11410-09760i3NRFKE..NSP152202303

main11410-B9050i2NRFE..NSP151..MA202305

11401LSEAL, ENGINE REAR OIL

main90311-T0073i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main90311-T0074i1NRFE,2NRFE..NSP150,151..LHD202303

*264

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02175×10i2NRFE..NSP151..MA202305

(J)

main90910-T2013×10i1NRFE,2NRFE..NSP150,151..LHD..5D; 1NRFE..NSP150..R; 2NRFE..NSP151..GEN,PKN,VN;1NRFE,3NRFKE..NSP150,152..RHD202303

*264; *712 OR *432

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303

L=12,OD=4.0,*264; L=12,OD=4.0,*712 OR *432

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017×2i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303

*264; *712 OR *432

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120×2i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303

*264; *712 OR *432

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0Y020i1NRFE,2NRFE..NSP150,151..RHD202305

main11445-47050i3NRFKE..NSP152202303

NO.1

main11445-47060i3NRFKE..NSP152202303

NO.2

11452GUIDE, OIL LEVEL GAGE

main11452-0Y020i1NRFE,2NRFE..NSP150,151..PKN202305-202409

main11452-0Y030i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main11452-0Y080i1NRFE,2NRFE..NSP150,151..LHD; 1NRFE,2NRFE..NSP150,151..PKN202410

*264

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main9004A-30058i2NRFE..NSP151..MA202305

main90301-T0025i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main90301-T0060i1NRFE,2NRFE..NSP150,151..LHD202303

*264

12101PAN SUB-ASSY, OIL

main12101-0Y040i2NRFE..NSP151..MA202305

main12101-0Y070i1NRFE..NSP150..5F..GEN;2NRFE..NSP151..LHD..5D202303

*712 OR *432

main12101-0Y080i1NRFE..NSP150..CVT..R202303

*264

main12101-0Y090i1NRFE,3NRFKE..NSP150,152..CVT..R202303

*712 OR *432

main12101-0Y150i2NRFE..NSP151..PKN;1NRFE..NSP150..5F..PKN202407

main12101-0Y160i1NRFE..NSP150..CVT..PKN202407

12101APLUG(FOR OIL PAN DRAIN)

main90341-12032i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main90341-T0017i1NRFE,2NRFE..NSP150,151..LHD202303

*264

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-T0024i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN); 1NRFE,2NRFE..NSP150,151..LHD202303

*264; *712 OR *432

12101CRING, O(FOR OIL PAN)

main90301-T0054i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432, NO.1

main90301-T0055i1NRFE,2NRFE..NSP150,151..RHD202305

NO.1

main90301-T0056i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432, NO.2

main90301-T0057i1NRFE,2NRFE..NSP150,151..LHD202303

*264,NO.2

12101LGASKET NO.1(FOR OIL PAN)

main90430-T0022i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main90430-T0023i1NRFE,2NRFE..NSP150,151..LHD202303

*264

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Y030i2NRFE..NSP151..PKN;1NRFE..NSP150..5F..PKN202407

main12121-0Y060i1NRFE..NSP150..5F..GEN;2NRFE..NSP151..LHD..5D202303

*712 OR *432

main12121-0Y090i1NRFE..NSP150..CVT..R202303

*264

main12121-47030i1NRFE,3NRFKE..NSP150,152..CVT..R202303

*712 OR *432

main12121-BZ090i2NRFE..NSP151..MA202305

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-0Y010i1NRFE,2NRFE..NSP150,151202303-202305

*264

main12122-0Y011i1NRFE,2NRFE..NSP150,151..PKN202407

main12122-0Y020i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303-202309

*712 OR *432

main12122-BZ020i2NRFE..NSP151..MA202305-202403

main12122-BZ040i2NRFE..NSP151..MA202403

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1502OIL FILTER

→ Go to FIG 15-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0Y010i2NRFE..NSP151..LHD;1NRFE..NSP150..5F..GEN202303

*264

main15301-0Y040i1NRFE..NSP150..5F..GEN;2NRFE..NSP151..LHD..5D202303

*712 OR *432

main15301-0Y070i1NRFE,3NRFKE..NSP150,152..CVT..R; 1NRFE..NSP150..CVT..R202303

*264; *712 OR *432

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0Y040×4i3NRFKE..NSP152202303-202401

*712 OR *432

main15708-BZ020×4i3NRFKE..NSP152202401

*712 OR *432

90105T0171

main90105-T0171

9011006040

main90110-06040

90110T0002

main90110-T0002

90119T0260

main90119-T0260

90119T0342

main90119-T0342

9025010030

main90250-10030

90250T0019

main90250-T0019

28 parts on this diagram · 2 diagrams in section
